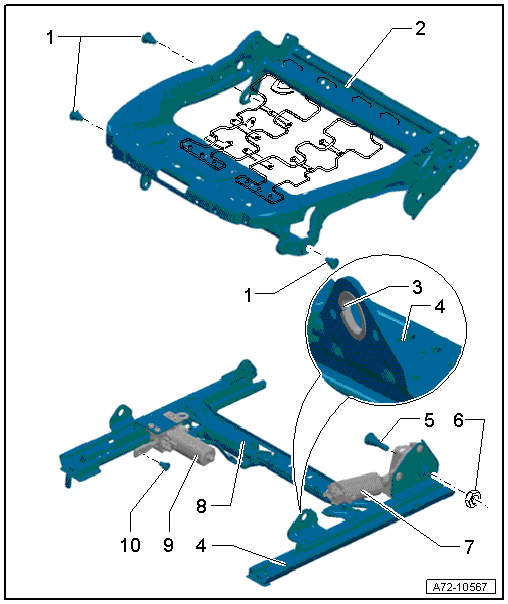

Lower Seat Frame Overview
NOTE:
The upper and lower seat pan frames of the front seat can be separated and replaced individually.
When removing seat pan, make sure the bushings in bearing points (upper and lower frame threaded connection) are not damaged. These bushings cannot be replaced with workshop materials.
- Screw, Self-Locking
- 28 Nm
- Quantity: 3
- Replacing
- Threaded holes for screws must always be cleaned (for example, with thread cutter).
- Upper Seat Frame
- Removing and Installing. Refer to LOWER SEAT FRAME, DISASSEMBLING AND ASSEMBLING .
- Bushing
- Inserted in all bearing locations.
- Cannot be replaced with workshop materials.
- If the bushings are damaged, assembly part must be replaced, allocation.
- Lower Seat Frame
- Removing and Installing. Refer to LOWER SEAT FRAME, DISASSEMBLING AND ASSEMBLING .
- Bolt
- 28 Nm
- Replacing
- Nut
- Threaded holes for screws must always be cleaned (for example, with thread cutter).
- Driver Seat Height Adjustment Motor -V245- or Front Passenger Seat Height Adjustment Motor -V246-
- Removing and Installing. Refer to Driver Seat Height Adjustment Motor -V245- AND Front Passenger Seat Height Adjustment Motor -V246-, REMOVING AND INSTALLING .
- Seat Forward/Back Adjustment Motor -V288-
- Cannot be removed and installed with workshop materials.
- Stays on the lower seat pan frame. Refer to -Item 4- LOWER SEAT FRAME OVERVIEW.
- Driver Seat Angle Adjustment Motor -V243- or Front Passenger Seat Angle Adjustment Motor -V244-
- Removing and Installing. Refer to Driver Seat Angle Adjustment Motor -V243- OR Front Passenger Seat Angle Adjustment Motor -V244-, REMOVING AND INSTALLING .
- Screw, Self-Locking
- 20 Nm
- Replacing
- Threaded holes for screws must always be cleaned (for example, with thread cutter).
