Windshield Washer System Overview

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

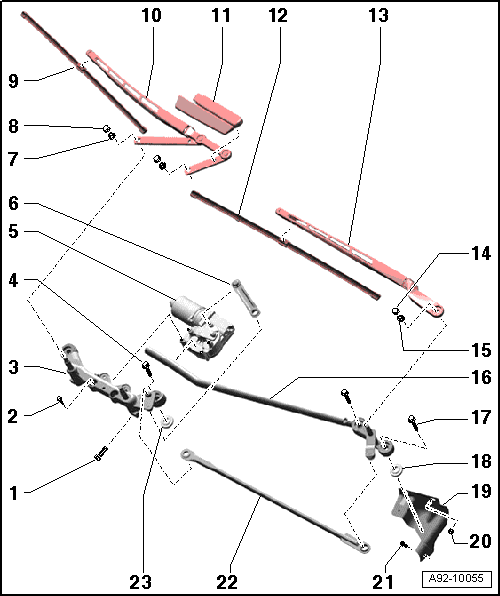

Fig 1: Windshield Wiper System Overview

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Tightening sequence, refer to Fig 2.
Bolt - 11 Nm
- For windshield wiper motor - must not be loosened.
Windshield Wiper Frame, Passenger's Side
- Cannot be replaced separately.
Bolt
- Tightening sequence, refer to Fig 2.
Windshield Wiper Motor
- With Wiper Motor Control Module -J400 -.
- Removing and Installing, refer to Windshield Wiper Motor -V- WITH Wiper Motor Control Module -J400-, REMOVING AND INSTALLING .
Connecting Rod
Nut
- 35 Nm
Cap
Windshield Wiper Blade, Passenger's Side
- Replacing, refer to WINDSHIELD WIPER BLADES, REMOVING AND INSTALLING .
Windshield Wiper Arm on the Passenger Side
- Removing and Installing, refer to WINDSHIELD WIPER ARM, REMOVING AND INSTALLING .
- Aiming, refer to WINDSHIELD WIPER ARMS, ADJUSTING .
Cover
- For passenger's side windshield wiper arm.
Windshield Wiper Blade, Driver's Side
- Replacing, refer to WINDSHIELD WIPER BLADES, REMOVING AND INSTALLING .
Windshield Wiper Arm, Driver's Side
- Removing and Installing, refer to WINDSHIELD WIPER ARM, REMOVING AND INSTALLING .
- Aiming, refer to WINDSHIELD WIPER ARMS, ADJUSTING .
Cap
Nut
- 35 Nm
Windshield Wiper Frame, Driver's Side
- Cannot be replaced separately.
Bolt
- Tightening sequence, refer to Fig 2.
Rubber Bushing
Driver's Side Mount
- For windshield wiper frame.
Nut
- 8 Nm
Bolt
- 8 Nm
Connecting Rod
Rubber Bushing

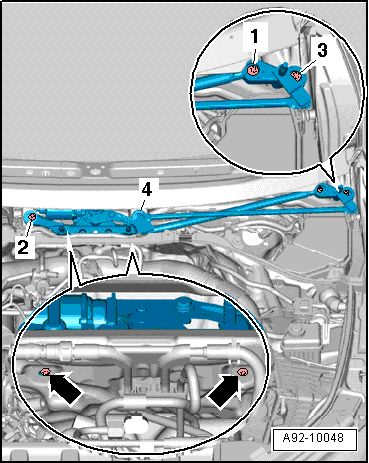

Fig 2: Identifying Wiper Mechanism Tightening Sequence -1 To 4-

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in -1 to 4- sequence in 2 stages as follows:

1. Install by hand as far as the stop.

2. Tighten to 8 Nm.

-- Tighten the screws -arrows- in the center of the partition panel to 8 Nm.
