Rear Window Wiper Motor -V12-, REMOVING AND INSTALLING: Removal
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove wiper arm, refer to WINDSHIELD WIPER ARM, REMOVING AND INSTALLING .
-- Remove lower rear lid trim panel, refer to TRIM MOLDING, REMOVING AND INSTALLING .

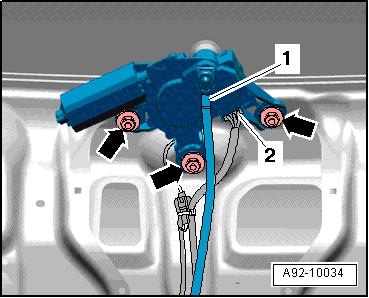

-- Disconnect electrical connector -2-.
-- Disconnect washer fluid hose -1- from connecting pipe of nozzle.
-- Remove the nuts -arrows- and remove the rear window wiper motor.
