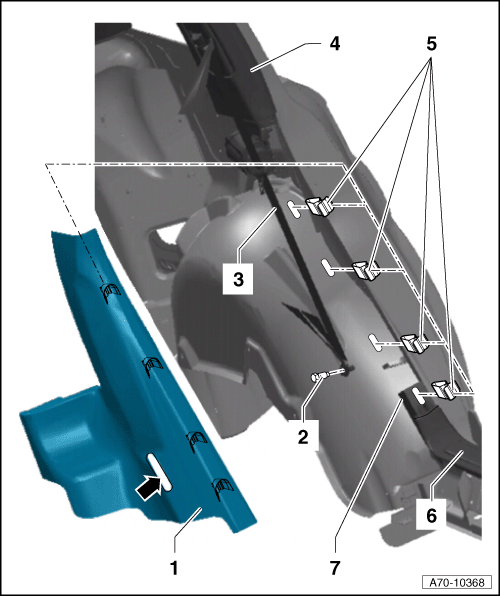

Wheel Housing Liner Overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Wheel Housing Trim
- Removing and Installing. Refer to WHEEL HOUSING TRIM, REMOVING AND INSTALLING .
- Detaching the wheel housing trim from the C-pillar and attaching it (not removing). Refer to DETACHING THE WHEEL HOUSING TRIM FROM THE C-PILLAR .
- With opening -arrow- for guiding seat belt through.
- Bolt
- 55 Nm
- For belt anchor/seat belt to body.
- Seat Belt
- Guide through opening -arrow- in wheel housing trim.
- C-Pillar Trim
- Must be installed before removing wheel housing trim.
- Clips
- Quantity: 4
- Replace if damaged or deformed.
- Insert in wheel housing trim.
- Sill Panel Strip
- Must be installed before removing wheel housing trim.
- Support Piece
