Detaching The Wheel Housing Trim From The C-Pillar

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Trim Removal Wedge3409

Detaching the Wheel Housing Trim from the C-Pillar, Not Removing

-- Fold the second row backrest forward.

-- Pull wheel housing trim -1- out of mounts in body with Trim Removal Wedge3409.

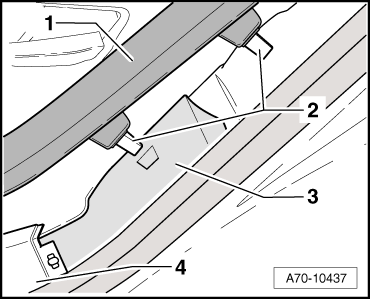

Fig 1: Removing/Installing Sill Panel

Courtesy of AUDI OF AMERICA, LLC

NOTE:

If clamps -2- remain in body mounting points, remove these and insert them in trim.

Check clamps for damage or deformation, replace if necessary.

Note installation location of supporting piece -3-, it must be in front area under sill panel strip -4-.

Attaching the Wheel Housing Trim to the C-Pillar

Fig 2: Wheel Housing Trim With Mounts -1- In Luggage Compartment Side Trim -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Insert the wheel housing trim with mounts -1- in luggage compartment side trim -2-.

-- Clip the wheel housing trim with clamps -3- to the C-pillar while inserting the tab -arrow A- in the recess -arrow B- of the C-pillar trim.

-- Draw door seal lip -4- over wheel housing liner.
