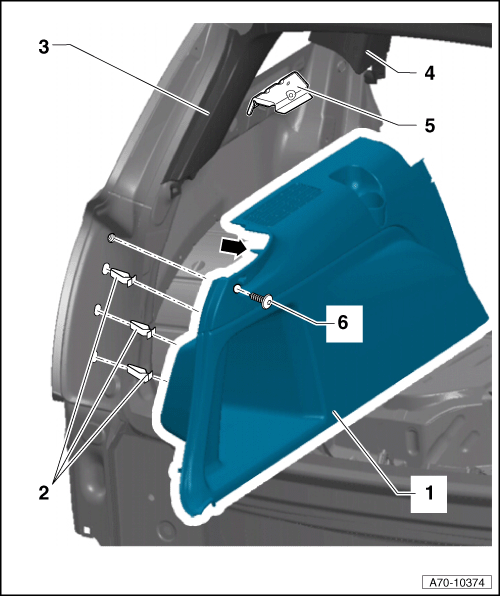

Luggage Compartment Side Trim Panel Overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Luggage Compartment Side Trim
- Removing and Installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
- When installing, the tab -arrow- must be inserted in the D-pillar trim. Refer to -Item 3- LUGGAGE COMPARTMENT SIDE TRIM PANEL OVERVIEW.
- Clips
- Replace if damaged.
- D-Pillar Trim
- Must be installed before installation of the luggage compartment side trim.
- C-Pillar Trim
- Before removing, the luggage compartment side trim must be removed.
- Removing and Installing. Refer to C-PILLAR TRIM OVERVIEW .
- Bracket
- 4 Nm
- Must be installed before installation of the luggage compartment side trim.
- Bolt
- 2.5 Nm
