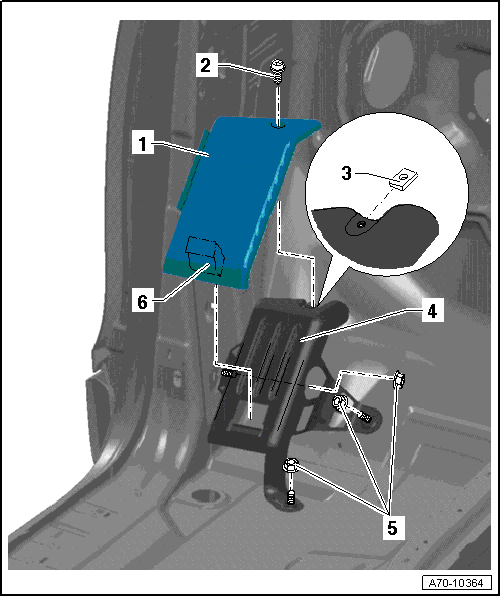

Footrest Cover And Bracket Overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Footrest Cover
- Removing and Installing. Refer to FOOTREST COVER AND BRACKET, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Spring Nut
- Insert it in the footrest.
- Footrest Bracket
- Removing and Installing. Refer to FOOTREST COVER AND BRACKET, REMOVING AND INSTALLING .
- Nut
- 3 Nm
- Quantity: 3
- Tab
- Is joined firmly with the footrest cover.
