C-Pillar Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- The wheel housing trim and belt anchor/seat belt of the C-pillar must be removed from the C-pillar. Refer to WHEEL HOUSING LINER OVERVIEW .

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .

NOTE:

To remove belt anchor screw on vehicles with fixed second row, remove the corresponding 2nd row seat.

Vehicles with Vents in the C-Pillar Trim

-- Carefully unclip vent -1- from the C-pillar trim starting at the upper side facing the headliner. Press spring clip -2- when doing so.

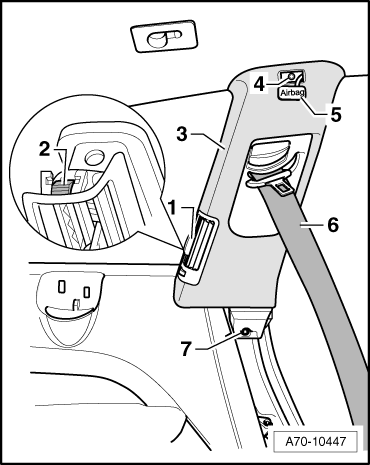

Fig 1: Carefully Unclip Vent -1- From The C-Pillar Trim

Courtesy of AUDI OF AMERICA, LLC

-- Then remove the vent from C-pillar trim -3-.

Procedure for All Vehicles

-- Unclip cover cap -5- with Airbag symbol and remove screw -4-.

NOTE:

The cover cap hangs from the C-pillar trim and cannot be removed.

-- Then remove second screw -7-.

-- Remove the C-pillar trim from the mounts in the body and guide seat belt -6- through the trim opening.
