C-Pillar Trim, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Observe the following when doing so:

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .

NOTE:

Check the C-pillar trim clips for damage or deformation, replace if necessary.

Ensure belt webbing is not twisted.

When installing trim, do not press belt height adjustment button.

During installation, attach trim from bottom upwards toward belt height adjuster.

-- Remove locking compound residue from threaded screw holes. You can use a thread cutter to do so.

If threaded holes are not cleaned, there is the danger that new screws could seize up during installation and shear off when removed again.

-- Guide seat belt -2- through C-pillar trim opening -1-.

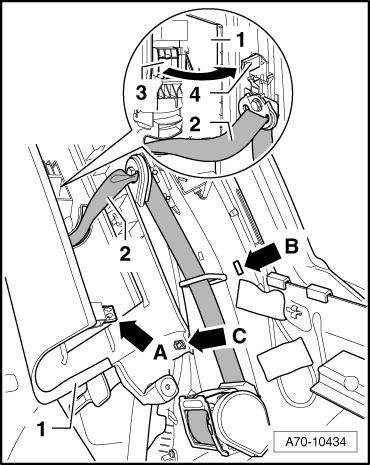

Fig 1: Guide Seat Belt -2- Through C-Pillar Trim Opening -1-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

To provide a better illustration, the right side of the vehicle is shown.

-- Ensure that sliding piece mount -3- of the C-pillar trim engages in retaining pins -4- on the seat belt height adjuster.

-- Clip C-pillar trim -1- on the rear side with the clamp -arrow A- into the mount in the body -arrow B-.

-- The opposite side of the trim must be clipped into mount in body with clamps -arrow C-.

-- Secure the C-pillar trim to the body with new screws and tighten them to the specified tightening torque.

-- Clip in cover cap with Airbag symbol.

-- The wheel housing trim and belt anchor must then be attached to the C-pillar. Refer to WHEEL HOUSING LINER OVERVIEW .

Vehicles with Vents in the C-Pillar Trim

-- Engage the bottom side of the vent (knurled wheel side) in the C-pillar trim.

-- Clip the top side of the vent in the C-pillar trim.

Procedure for All Vehicles

-- Draw the door seal lip over the C-pillar trim.

NOTE:

Ensure that the C-pillar trim is held securely.

-- Check the function of the seat belt height adjuster.

The seat belt height adjuster must engage audibly in each of the possible positions.
Button must return to upper position by itself after being pressed.
