Roof Reinforcement, Vehicles Without Sunroof, Attaching To Body

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

AK AdhesiveD 190 MKD A3

Removing

-- Remove headliner. Refer to HEADLINER OVERVIEW .

-- Carefully pull roof reinforcements -1- away from body roof beginning at rear.

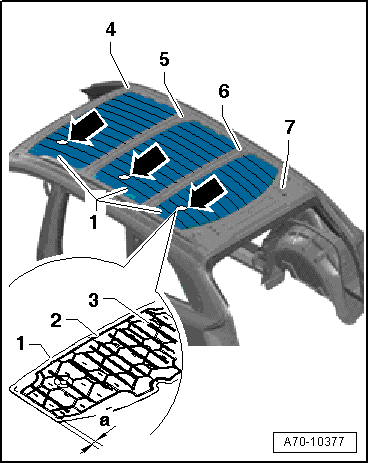

Fig 1: Roof Reinforcement Adhesive Bead Position

Courtesy of AUDI OF AMERICA, LLC

NOTE:

If the roof reinforcement is damaged during removal, such as with tears or kinks, it must be replaced.

Installing Old Roof Reinforcement

-- Apply new adhesive between adhesive beads -3-.

-- Apply new adhesive near peripheral adhesive bead -2-.

Installing New Roof Reinforcement

-- Place adhesive bead -2- on roof reinforcement -1- at a distance of -a- from the outer edge as shown in the figure.

Dimension -a- = 25 mm all around

-- Apply adhesive beads -3- to roof reinforcement, approx. 10 lengthwise as shown in illustration.

All:

-- Position the roof reinforcement centered with respect to the outer sides and roof braces -4- to -7-.

Holes -arrows- must be in direction of travel on left side of vehicle.

-- Push roof reinforcement from inside onto body roof.

-- Install headliner. Refer to HEADLINER OVERVIEW .
