Headliner Overview

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Molded headliner for vehicles without sunroof is shown in illustration. On vehicles with sunroof, remove headliner from cover frame. Refer to Removing .

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
Note the additional safety precautions when working on the side curtain airbag. Refer to HEAD CURTAIN AIRBAG ADDITIONAL SAFETY PRECAUTIONS .

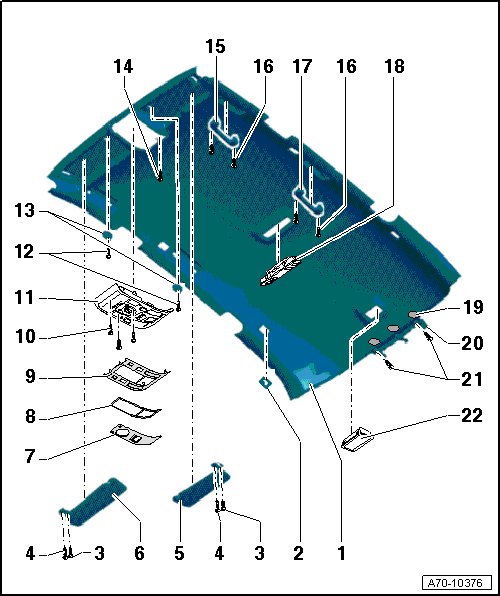

Fig 1: Headliner Overview

Courtesy of AUDI OF AMERICA, LLC

Headliner
- Removing and Installing. Refer to HEADLINER, REMOVING AND INSTALLING .
Cover
- For the screen separator wall mount.
- Must be unclipped to remove and install headliner.
- Hangs after unclipping from the screen separator wall mount and cannot be removed.
- Remove and install the screen separator wall mount. Refer to SCREEN SEPARATOR WALL MOUNT, REMOVING AND INSTALLING .
Bolt
- 3 Nm
- Approximately. 19 mm long
  NOTE:
  If 2 screws of different lengths are installed, shorter screw for securing sun visor must be installed at front of direction of travel.
Bolt
- 3 Nm
Passenger Side Sun Visor
- Some vehicles are equipped with a double sun visor.
- Removing and Installing. Refer to SUN VISOR OVERVIEW .
Driver Side Sun Visor
- Some vehicles are equipped with a double sun visor.
- Removing and Installing. Refer to SUN VISOR OVERVIEW .
Center Cover
- For interior light/front reading light.
Decorative Frame
- For center cover.
Diffusion Lens
- For interior light/front reading light.
Bolt
- Tightening specification. Refer to Special Tools .
Interior Light/Front Reading Light
Bolt
- 3 Nm
Sun Visor Center Bearing
- Removing and Installing. Refer to SUN VISOR OVERVIEW .
Bolt
- 2 Nm
Front Roof Grab Handle
- Removing and Installing. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .
Screw, Self-Locking
- 4 Nm
- Replacing
- Threaded holes for screws must always be cleaned (for example, with thread cutter).
Rear Roof Grab Handle
- Rear roof grab handle is equipped with a coat hook.
- Removing and Installing. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .
Left Rear Interior Lamp -W47- /Right Rear Interior Lamp -W48-
Clip
- Quantity: 3
- For headliner to assembly bridge.
Assembly Bridge
- For headliner to body.
Bolt
- 4 Nm
Rear Interior Lamp -W43-
