Sun Shade, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

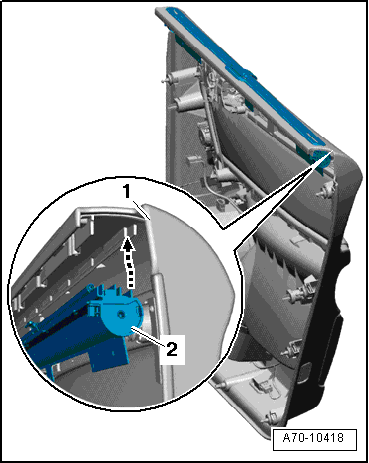

Fig 1: Sun Shade Guide Pin -2- Must Engage In Door Trim Mounting Groove -1- -Arrow-.

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Observe the following when doing so:

Sun shade guide pin -2- must engage in door trim mounting groove -1- -arrow-.

-- The guide strip -2- can only be inserted in one position in door trim.

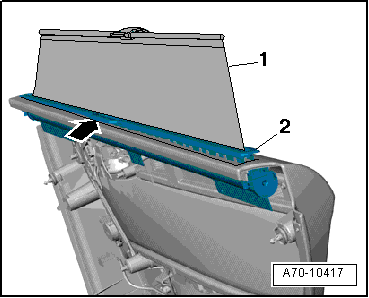

Fig 2: Pull The Sun Shade -1- Slightly Out Of The Door Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Identifying feature: the bulge -arrow- must face the window side.

-- Pull sun shade -1- out of door trim slightly and insert guide strip in door trim as shown in illustration.

Tightening specifications. Refer to SUN SHADE OVERVIEW .
