Sun Shade Overview

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

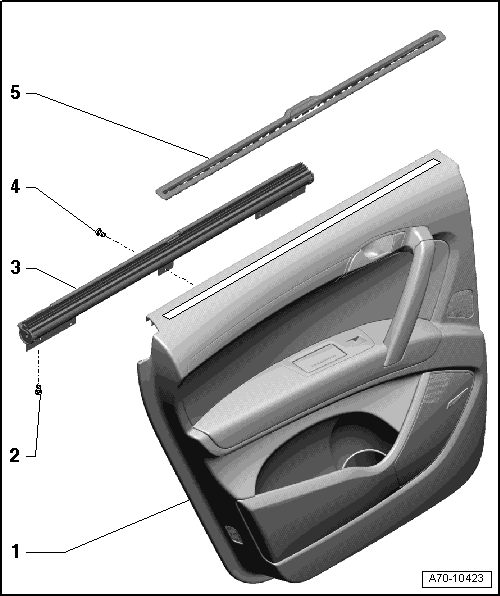

Fig 1: Rear Door Sun Shade Overview

Courtesy of AUDI OF AMERICA, LLC

Rear Door Trim
Bolt
- 1.2 Nm
Sun Shade
- Removing and Installing. Refer to SUN SHADE, REMOVING AND INSTALLING .
Bolt
- 1.2 Nm
Guide Strip
- Removing and Installing. Refer to SUN SHADE, REMOVING AND INSTALLING .

Fig 2: Identifying Screws -1- & Remove Mount -2-

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the screws -1- on the sun shade mount to 1.2 Nm.
