Instrument Panel, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Observe the following when doing so:

NOTE:

When installing, position cable ties in same place.

-- Position instrument panel and guide electrical connectors for Sunlight Photo Sensor -G107- and speaker through opening in instrument panel.

-- Slide clamps -1- on instrument panel -3- into the openings on lower windshield frame -2- by lightly pressing them down.

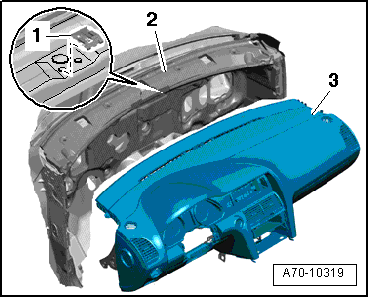

Fig 1: Slide Clamps -1- On Instrument Panel -3- Into The Openings On Lower Windshield Frame -2

Courtesy of AUDI OF AMERICA, LLC

-- Align instrument panel and tighten screws.

WARNING:

Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. Maintain personal safety when connecting the battery by staying out of airbag deployment areas, keeping a distance from belt tensioners/seat belts and ensuring no other people are in the vehicle interior at the moment when the battery is connected.

-- Switch on ignition.

-- Turn on the ignition and connect the battery ground cable. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367- FROM MY 09, REMOVING AND INSTALLING .

-- If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again using the Vehicle Diagnostic Tester.

Tightening specifications. Refer to INSTRUMENT PANEL OVERVIEW .
