Indirect Ventilation Trim, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove Sunlight Photo Sensor -G107-. Refer to SUNLIGHT PHOTO SENSOR -G107- .
-- Remove screw -arrow- in center of indirect ventilation trim.
-- Remove the left and right A-pillar trim. Refer to UPPER A-PILLAR TRIM OVERVIEW .

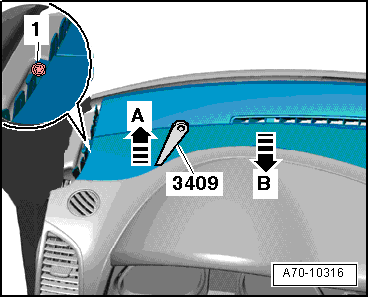

-- Remove left and right spreader pin -1- on indirect ventilation trim.
-- Remove indirect ventilation trim from instrument panel -arrow A- with Trim Removal Wedge3409.
-- Remove indirect ventilation trim by pulling back -arrow B-.
-- Disconnect the connector on the speaker, if equipped.
