Instrument Panel Central Tube, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

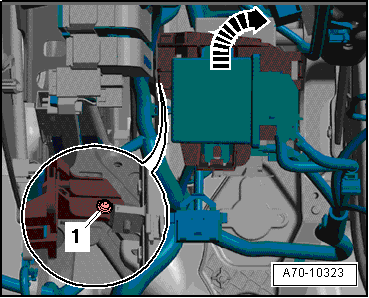

Fig 1: Press Head Range Control Module -J431- Bracket Upward And Disengage To Side
GWWA70-10323Courtesy of AUDI OF AMERICA, LLC
NOTE:

Position cable ties that were removed or cut away during removal in same place when installing.

-- Remove instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Remove the bolt -1-.

-- Press Headlamp Range Control Module -J431- bracket upward and disengage to side -arrow-.

-- Leave Headlamp Range Control Module -J431- with electrical lines connected in vehicle.

-- Remove left and right instrument panel central tube screws -1- and -2-.

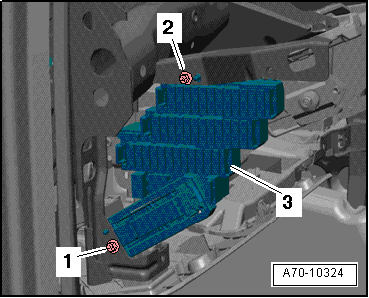

Fig 2: Instrument Panel Central Tube Screws
GWWA70-10324Courtesy of AUDI OF AMERICA, LLC

-- Remove left and right base bracket with instrument panel fuse carrier -3- back from instrument panel central tube.

-- Remove the Vehicle Electrical System Control Module -J519-. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .

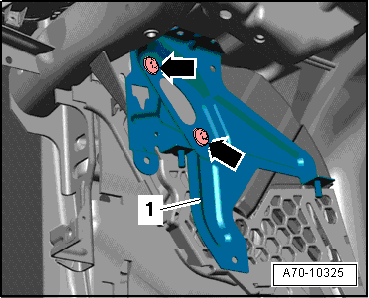

Fig 3: Remove The Bolts -Arrows-.
GWWA70-10325Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Press bracket -1- with wiring harness and installed Data Bus On Board Diagnostic Interface -J533- to side.

-- Unclip cover -1- on the parking brake bearing -arrow- and tip cover to side.

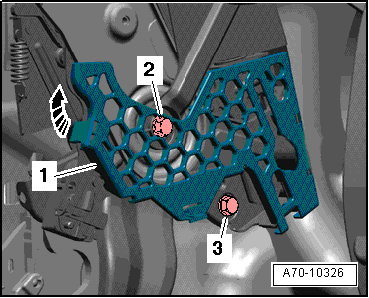

Fig 4: Unclip Cover -1- On The Parking Brake Bearing -Arrow- And Tip Cover To Side.
GWWA70-10326Courtesy of AUDI OF AMERICA, LLC

-- Remove parking brake screws -2- and -3-.

-- Remove nut -4-.

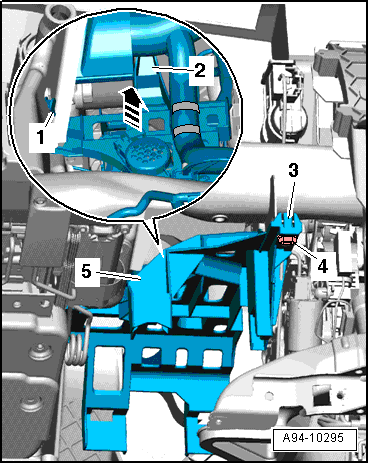

Fig 5: Release Retainer -3- And Disengage The Center Instrument Panel Relay And Fuse Carrier
GWWA94-10295Courtesy of AUDI OF AMERICA, LLC

-- Release retainer -3- and disengage the center instrument panel relay and fuse carrier at the threaded pins for nut -4-.

-- Slide the center instrument panel relay and fuse carrier upward slightly in order to disengage retaining pin -1- at the instrument panel central tube.

NOTE:

Ignore -2-.

The retaining frame is shown without the center instrument panel relay and fuse carrier to provide a better illustration.

-- Remove ground lines from ground points -1- and -3- and free them up.

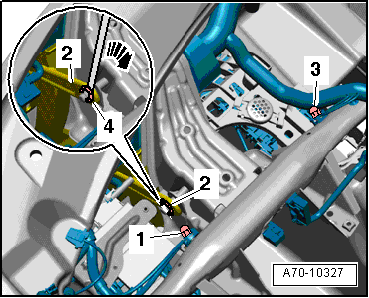

Fig 6: Using A Screwdriver, Pry Out Lock Washer -4
GWWA70-10327Courtesy of AUDI OF AMERICA, LLC

-- Using a screwdriver, pry out lock washer -4- -arrow- and disengage brace -2- at instrument panel central tube.

-- Remove nut -6- and remove steering column screw -5-.

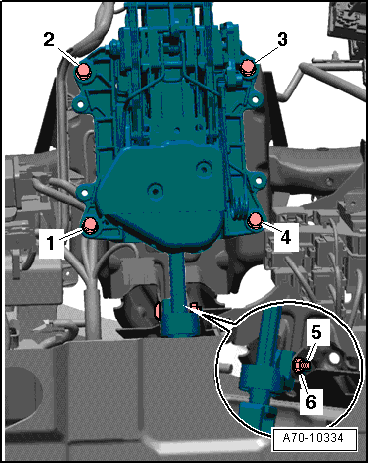

Fig 7: Remove Nut -6- And Remove Steering Column Screw -5-.
GWWA70-10334Courtesy of AUDI OF AMERICA, LLC

-- Remove screws -1 to 4- and lay steering column in footwell on a suitable surface.

-- Remove screws -arrows- and remove Front Information Display Control Head Control Module -J523-.

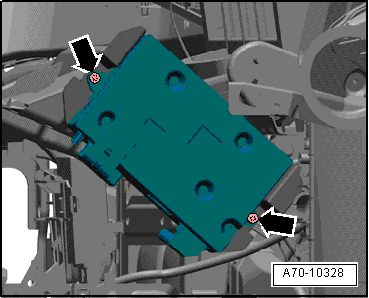

Fig 8: Front Information Display Control Head Control Module -J523 Screws
GWWA70-10328Courtesy of AUDI OF AMERICA, LLC

-- Secure Front Information Display Control Head Control Module -J523- at top with electrical lines connected.

-- Remove screws -arrows- and remove Front Information Display Control Head Control Module -J523- bracket from instrument panel central tube.

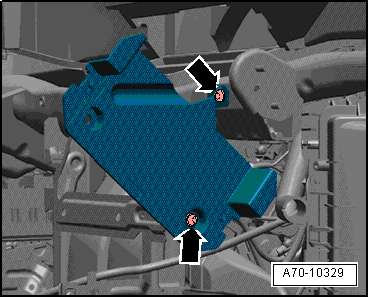

Fig 9: Identifying Screws For Front Information Display Control Head Control Module -J523- Bracket
GWWA70-10329Courtesy of AUDI OF AMERICA, LLC
Fig 10: A/C Unit Rubber/Metal Elements
GWWA87-10236Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Brace the A/C unit with a suitable support against the body. Otherwise, there is the danger that the A/C unit could come loose from the rubber/metal elements -A- and sag down.

-- Remove A/C unit screws -1- and -2- on instrument panel central tube.

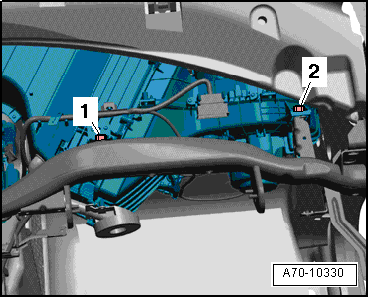

Fig 11: Remove A/C Unit Screws -1- And -2-
GWWA70-10330Courtesy of AUDI OF AMERICA, LLC

-- Press wiring harness clips -arrows- of instrument panel central tube with Pry Lever80-200.

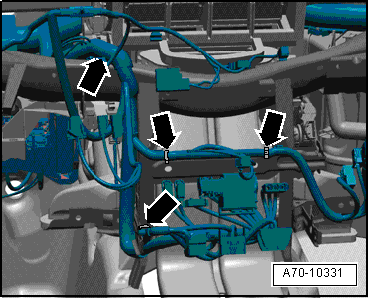

Fig 12: Press Wiring Harness Clips -Arrows- Of Instrument Panel Central Tube With 80-200.
GWWA70-10331Courtesy of AUDI OF AMERICA, LLC
NOTE:

For easier removal of wiring clips, use silicon-free lubricating spray if necessary.

-- Remove the windshield wiper. Refer to WINDSHIELD WIPER BLADES, REMOVING AND INSTALLING .

-- Remove driver side plenum chamber cover. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .

-- Remove plug -1- at the left plenum chamber bulkhead.

Fig 13: Left Plenum Chamber Bulkhead Plug
GWWA70-10404Courtesy of AUDI OF AMERICA, LLC

-- Remove instrument panel central tube screw -2- through the opening in the plenum chamber bulkhead.

Fig 14: Instrument Panel Central Tube Screws
GWWA70-10405Courtesy of AUDI OF AMERICA, LLC
CAUTION:

For reinstallation, mark the installation location of the instrument panel central tube in the height and side positions with respect to the left and right angle brackets on the A-pillar.

-- Remove instrument panel central tube screws -1 to 7-.

NOTE:

2 technicians are needed to remove instrument panel central pipe.

-- Tip instrument panel central tube back on upper side.

-- Carefully guide the lower instrument panel central tube supports out of the floor covering.

-- Remove instrument panel central tube from vehicle interior.
