Rollover Support Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Convertible Top Compartment Cover Locking Motor -V222-
GWWA70-11083Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
WARNING:

Follow the safety precautions for the rollover protection. Refer to ROLLOVER PROTECTION .

-- Open the convertible top until the displayed position of the top and the convertible top compartment cover is reached.

-- Support the convertible top with a suitable wood rod.

-- Disconnect the battery ground cable. Refer to BATTERY .

-- Unhook the hooks on the rollover support trim -1- through the openings in the rollover protection aluminum mount -arrow A-.

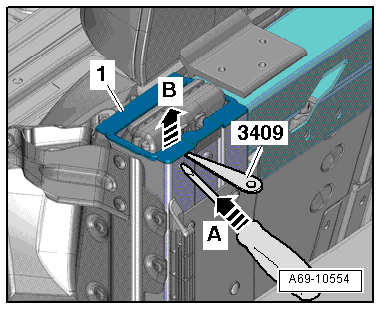

Fig 2: Removing Rollover Protection Trim
GWWA69-10554Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- At the same time, push the trim with the :3409  upward -arrow B- to prevent the hooks from getting hooked in again.

-- Do this to all 4 hooks and then remove the trim.
