Rollover Support Guide, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow the safety precautions for the rollover protection. Refer to ROLLOVER PROTECTION .
-- Perform an output diagnostic test in "Guided Functions" using the Vehicle Diagnostic Tester.
- The rollover supports are extended.
-- Disconnect the battery ground cable. Refer to BATTERY .

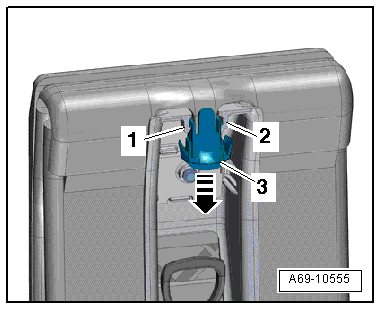

-- Release the retaining hooks -1 and 2- with a small screwdriver and remove the guide -3- for the rollover support downward -arrow-.
