Rollover Protection, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

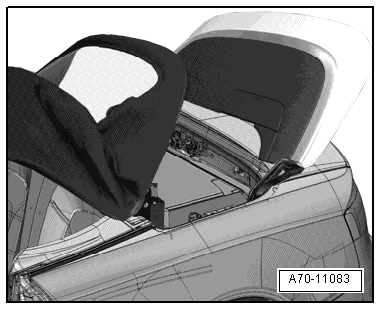

Fig 1: Identifying Convertible Top Compartment Cover Locking Motor -V222-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

WARNING:

Follow the safety precautions for the rollover protection. Refer to ROLLOVER PROTECTION .

-- Open the convertible top until the displayed position of the top and the convertible top compartment cover is reached.

-- Support the convertible top with a suitable wood rod.

-- Disconnect the battery ground cable. Refer to BATTERY .

-- Remove the left and right rear headrests. Refer to HEADREST, REMOVING AND INSTALLING .

-- Remove the left and right side cushions. Refer to SIDE CUSHION, REMOVING AND INSTALLING .

-- Remove the convertible top compartment front trim panel. Refer to CONVERTIBLE TOP COMPARTMENT FRONT TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the left and right lock on the rear seat backrest. Refer to REAR SEAT BACKREST LOCK, REMOVING AND INSTALLING .

-- Remove the front luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING, FRONT LUGGAGE COMPARTMENT FLOOR .

-- Remove the left and right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the left and right rear belt end fitting. Refer to REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .

-- Remove the variable convertible top compartment enclosure. Refer to VARIABLE CONVERTIBLE TOP COMPARTMENT ENCLOSURE, REMOVING AND INSTALLING .

-- Remove the Left Rear Door Control Module -J388- / Right Rear Door Control Module -J389-. Refer to CENTRAL LOCKING .

-- Remove the Rear Parking Aid Warning Buzzer -H15-. Refer to PARKING AID .

-- Remove the left and right guide rails for the variable convertible top compartment enclosure. Refer to GUIDE RAIL FOR VARIABLE CONVERTIBLE TOP COMPARTMENT ENCLOSURE, REMOVING AND INSTALLING .

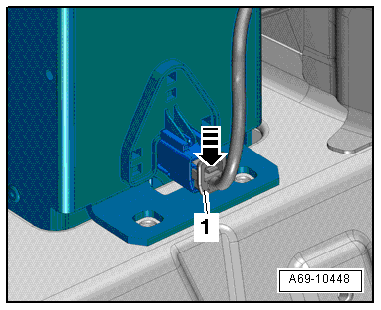

-- Open the release -arrow-, pull out the connector and disconnect the connectors on the left and right side of the rollover protection -1-.

Fig 2: Identifying Rollover Protection Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Mark the installation position for the rollover protection as shown in the following illustrations:

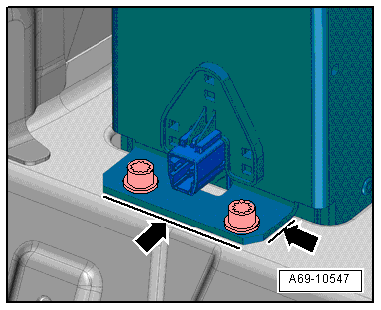

Fig 3: Identifying Crossmember Installation Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Lower threaded connection on the crossmember -arrows-.

Left and right front threaded connection on the side panel -arrow-.

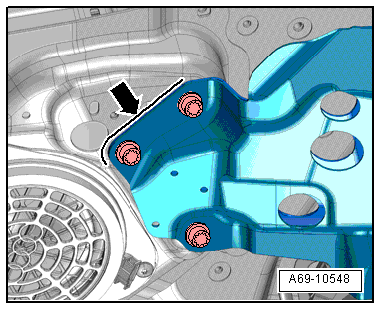

Fig 4: Identifying Side Panel Installation Position
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Threaded connection in the convertible top compartment -arrow-.

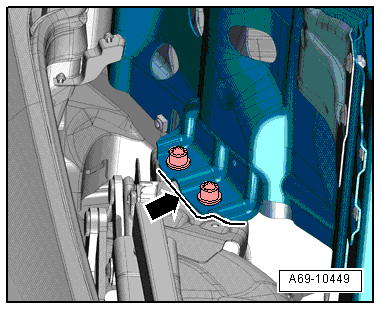

Fig 5: Identifying Convertible Top Compartment Installation Position
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 6: Identifying Rollover Protection Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

WARNING:

Loosen only those bolts shown in the illustration.
Never remove the support plates from the rollover protection.

-- Remove the screws in sequence -5 to 1-.

-- Loosen the screw -6- only ¹ /₂ turn.

-- Remove the rollover protection from the vehicle with a second technician.
