Connector Bracket, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow the safety precautions for the rollover protection. Refer to ROLLOVER PROTECTION .

-- Disconnect the battery ground cable. Refer to BATTERY .

-- Remove the side cushion. Refer to SIDE CUSHION, REMOVING AND INSTALLING .

-- Remove the front luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING, FRONT LUGGAGE COMPARTMENT FLOOR .

-- Remove the expanding clip for the luggage compartment side trim panel on the rollover protection, and pull the side trim panel in the connector bracket area slightly to the side.

Fig 1: Identifying Rollover Protection Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the release -arrow- and disconnect the connector -1-

-- Release the hooks -4-, pull out the connector and remove the connector coupling -2- on the bracket.

Fig 2: Removing Connector Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

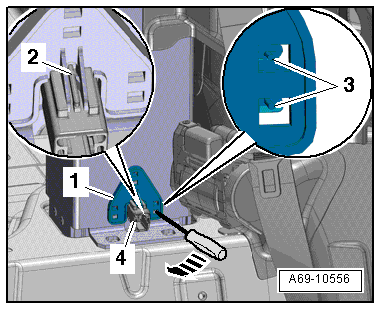

-- Release the hooks on the bracket -1- with a small screwdriver at the pins -3- one after the other -arrow-.

-- At the same time, push the connector bracket forward using the :3409 to prevent the hooks from getting hooked in again.

-- Do this at all six hooks and then remove the connector bracket.
