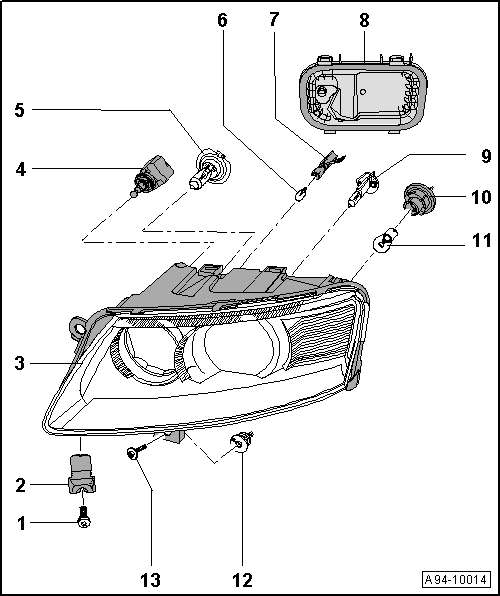

Halogen Headlamps Assembly Overview
NOTE:
Adjust the headlamps after performing any work that could have affected their adjustment. Refer to HEADLAMP, ADJUSTING .
- Nut
Ignore
- 6 Nm
- Spacer
Ignore
- Headlamp Housing
- Removing and installing, replacing components at front end, refer to HEADLAMP, AFTER FRONT END COMPONENTS REPLACEMENT
- Removing and installing when reusing current headlamp, refer to HEADLAMP, REUSING CURRENT HEADLAMP
- Headlamp Range Control Positioning Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing, refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-
- High Beam Headlamp Bulb
- Left High Beam Headlamp -M30-
- Right High Beam Headlamp -M32-
- 12 V, 55 W (H1 - W5W - white)
- Changing bulb, refer to HIGH BEAM HEADLAMP BULBS
- Parking Lamp Bulb
- Left Side Marker Lamp Bulb -M1-
- Right Side Marker Lamp Bulb -M3-
- Glass socket lamp 12V, 5 W
- Changing bulb, refer to PARKING LAMPS M1/M3, REPLACING BULBS
- Lamp Socket
- For parking lamp
- Housing Cover
- Low Beam Headlamp Bulb
- Left Low Beam Headlamp -M29-
- Right Low Beam Headlamp -M31-
- 12 V, 55 W (H7 - W5W - white)
- Changing bulb, refer to LOW BEAM HEADLAMPS
- Lamp Socket
- For the front turn signal lamp
- Front Turn Signal Lamp
- Left Front Turn Signal Lamp -M5-
- Right Front Turn Signal Lamp -M7-
- 12 V, 21 W (PY21W - orange)
- Changing bulb, refer to FRONT TURN SIGNAL LAMP BULBS
- Adjusting Element
- For adjustment of headlamp to bumper contour
- Quantity: 3
- Bolt
- 8 Nm
