Headlamp, Adjusting

• The following test and adjustment description applies to all countries.
• However, national guidelines or regulations of the country should be observed.

Left headlamp

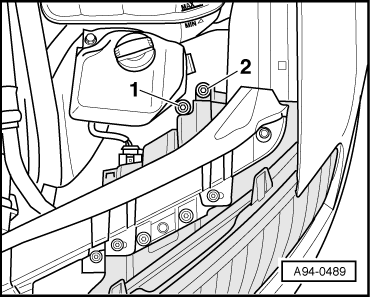

Fig 1: Identifying Headlight Adjustment Screws

Courtesy of AUDI OF AMERICA, LLC

Adjusting screw on left headlamp:

1 - Height Adjustment Screw

2 - Height/Lateral Adjustment Screw

The allocation on the right headlamp is reversed.

-- To adjust height, turn the adjusting screws -1 and 2- the same number of turns.

-- Turn the adjusting screw -2- for side adjustment.
