Fog Lamp Bulb, Removing And Installing

Removal

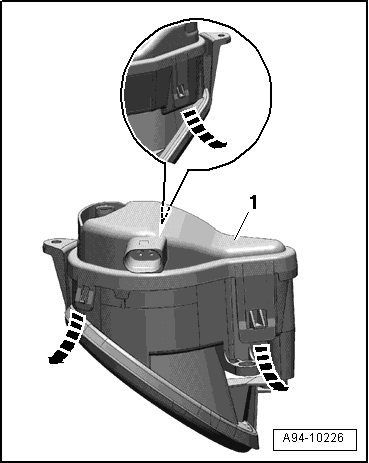

Fig 1: Releasing Securing Guides -Arrows- At Cap -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove fog lamp, refer to FOG LAMP, REMOVING AND INSTALLING .

-- Release securing guides in direction of -arrows- at cap -1-.

-- Disconnect electrical connectors -1- and -2- on bulb.

-- Disengage wire clamp -3- and remove bulb -4- from housing.

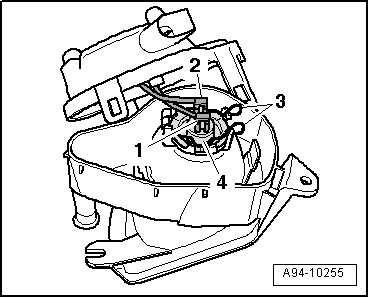

Fig 2: Disconnecting Electrical Connectors -1- And -2- From Bulb

Courtesy of AUDI OF AMERICA, LLC

Installation

Install in reverse order of removal. Note the following:

-- Insert the new bulb (H7 - 12V, 55 W) into the housing without touching the bulb with bare hands.

-- Secure bulb with spring clip.

-- Reconnect harness connectors and close housing cover.

-- Adjusting fog lamps, refer to FOG LAMP, ADJUSTING .
