Rear Vehicle Level Sensor

General Information

Vehicles with level control and/or gas discharge lamps have standard automatic headlamp range control. Refer to LEFT/RIGHT HID HEADLAMP CONTROL MODULE -J343- /J344 .

To function properly, the level control and automatic headlamp range control system need information about compression travel or rebound travel at the front and rear axles.

For this, the position of the left/right trapezoidal arm in relation to the body is transferred via a coupling rod to Left Rear Level Control System Sensor -G76- and Right Rear Level Control System Sensor -G77-. This transmit electrical signals to the Left/Right High-intensity Gas Discharge Lamp Control Module -J343/344-.

Left/right high-intensity gas discharge lamp control module, servicing. Refer to LEFT/RIGHT HID HEADLAMP CONTROL MODULE -J343- /J344 .

At the rear axle, these signals from Left Front Level Control System Sensor -G78- and Right Front Level Control Sensor -G289- are transmitted to the left/right high-intensity gas discharge lamp control module.

These signals are required for determining vehicle level.

The headlamp range control responds automatically to changes in the vehicle level.

The vehicle level can change in the following situations:

• Trailer Mode
• Different load conditions; vehicle empty, vehicle partially or fully loaded

It is always necessary to adapt the control position, to check the headlamp basic setting and to calibrate the lane assists when:

• The trapezoidal control arm has been removed and reinstalled or replaced.
• Installation work has been performed on the level control system sensor.
• The level control system sensor has been replaced.
• The threaded connection for coupling rod of level control system sensor was loosened at trapezoidal control arm.

Adapt the control position. Refer to SELF-LEVELING SUSPENSION CONTROL POSITION, PROGRAMMING .

Headlamp basic setting. Refer to HEADLAMP, ADJUSTING .

Calibrating the lane assists. Refer to LANE ASSIST CALIBRATION PROCEDURE .

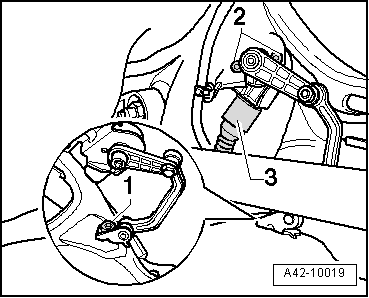

Replacing Level Control System Sensor with Subframe Installed

-- Remove the wheel.

-- Disconnect the harness connector -3-.

-- Remove bolt -1-.

-- Remove bolts -2- with offset wrench. Do not bend upper retaining plate when doing so.

-- Remove level control system sensor.

-- Adapt replacement part accordingly and install.

-- Install the bolts -2- using an angled wrench. Do not bend upper retaining plate when doing so.

Sensor lever must point outward.

-- Install the bolt -1-.

-- Connect the connector -3-.

Tightening specifications  . Refer to TRAPEZOIDAL CONTROL ARM, UPPER CONTROL ARM, TIE ROD, COIL SPRING AND LEVEL CONTROL SYSTEM SENSOR OVERVIEW .

-- Adapt the control position. Refer to SELF-LEVELING SUSPENSION CONTROL POSITION, PROGRAMMING .

-- Perform headlamp basic setting. Refer to HEADLAMP, ADJUSTING .

-- Calibrating the lane assists. Refer to LANE ASSIST CALIBRATION PROCEDURE .
