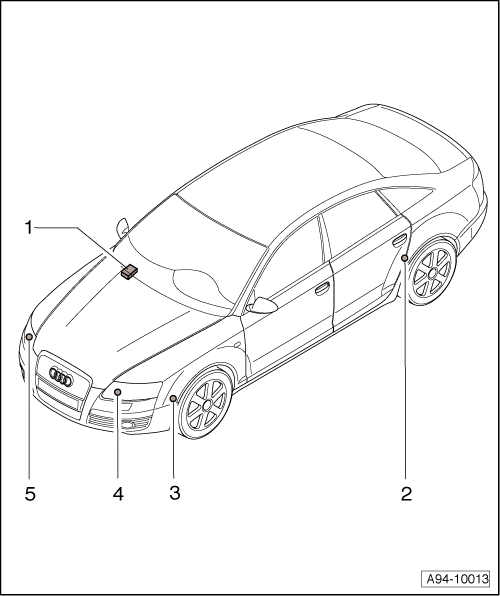

Overview - Automatic Headlamp Range Control
- Control Module
- Component location in the glove compartment on the instrument panel central tube
- Removing and installing, refer to Headlamp Range Control Module -J431- / Cornering Lamp and Headlamp Range Control Module -J745-
Vehicles without cornering lamp
- Headlamp Range Control Module -J431-
Vehicles with cornering lights:
- Cornering Lamp And Headlamp Range Control Module -J745-
- Left Rear Level Control System Sensor -G76-
- Located at left rear axle control arm
- Removing and installing, refer to REAR VEHICLE LEVEL SENSOR
- Left Front Level Control System Sensor -G78-
- At left front track control link
- Removing and installing, refer to FRONT LEVEL CONTROL SYSTEM SENSOR
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
