Rear Lid

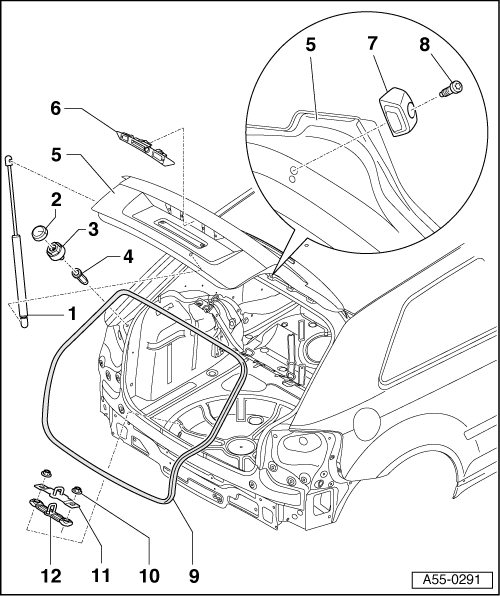

Fig 1: Identifying Rear Lid Components

Courtesy of AUDI OF AMERICA, LLC

Gas Strut
- Removal REAR LID GAS-FILLED STRUT .
Cover
Adjusting Buffer
Pop Rivet Nut
- Riveted into body.
- When installing, pop rivet nut must sit flat.
Rear Lid
- Removing
- Remove the rear lid trim panel. Refer to Removal and Installation
- Disconnect or pull off electrical harness connectors and hose for rear window washer system.
- Remove gas-filled strut.
- Second person is required to support and lift lid.
- Remove bolts on lid hinge REAR LID HINGE .
- Remove rear lid.
Handle
Buffer
Screw
- 8 Nm
Lid Seal
Nut
- 20 Nm
Striker Pin
- Note different versions.
- Rigid version
Striker Pin
- Decoupled version
