Rear Lid Gas-Filled Strut

Removal

-- Prop up and secure rear lid in open position.

-- Using screwdriver, lift retaining spring -3- as shown and remove gas-filled strut -1- from upper ball head pin -2-.

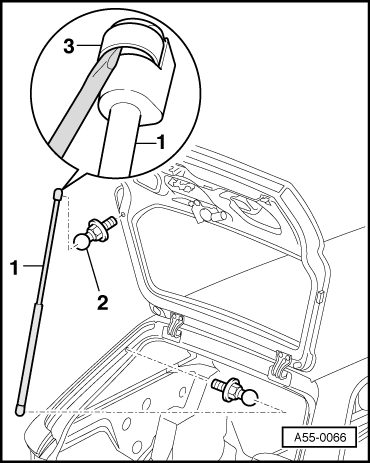

Fig 1: Using Screwdriver To Lift Retaining Spring And Remove Gas-Filled Strut From Upper Ball Stud

Courtesy of AUDI OF AMERICA, LLC

NOTE:

After completely removing gas-filled strut, ensure correct position when installing.

Noise insulation component must be installed on the body side.

Installation

Installation is reverse of removal, noting the following:

-- To install, press gas-filled strut onto ball head pins so that it engages in position.

-- Ball head pin tightening specification 20 Nm^{-1 Nm}
