Transmission, vehicles with V8 4.2L FSI engine, removing
WARNING: This page is about a different car, the 2010 Audi A8, 2009 Audi A8, 2008 Audi A8, 2007 Audi A8, and 2004 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.
Special tools, testers and auxiliary items required

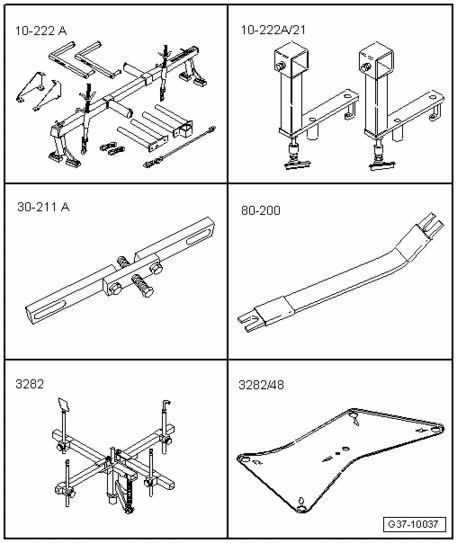

Fig 1: Identifying Special Tools - Transmission, Vehicles With V8 4.2L FSI Engine, Removing (1 Of 2)
- Engine Support Bridge 10 - 222 A
- Adapter 10 - 222 A/21
- Bracket 30 - 211 A
- Pry lever 80 - 200
- Transmission support 3282
- Adapter 3282/48
Special tools, testers and auxiliary items required

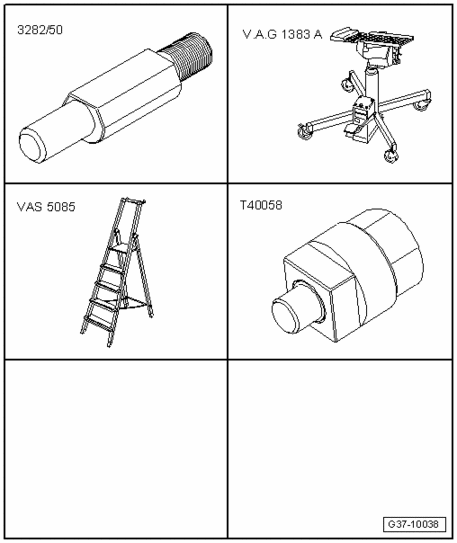

Fig 2: Identifying Special Tools - Transmission, Vehicles With V8 4.2L FSI Engine, Removing (2 Of 2)
- Pin 3282/50
- Engine/Transmission Jack V.A.G 1383 A
- Step ladder VAS 5085
- Adapter T40058
- M10x20 bolt
Work procedure
- Observe all repair notes → General Repair Notes .
CAUTION:
Contact corrosion! Notes →
Contact corrosion! .
NOTE:
- All cable ties that are opened or cut open during removal must be replaced in the same positions during installation.
CAUTION:
Observe procedures for disconnecting battery → 27 - BATTERY, STARTER, GENERATOR, CRUISE CONTROL
.
- Switch ignition off.
- Remove cover of luggage compartment right side trim - arrows -.
- Remove cover - 1 - from above battery.
NOTE:
- Disregard - 2 -.
- Disconnect Ground (GND) lead - arrow - at battery.
- Remove rear engine cover - arrows -.
- Remove rubber seal - 1 - of plenum chamber covers.
- Remove plenum chamber covers - 2 - and - 3 -.
Fig 8: Securing Engine Support Bridge 10 - 222 A With Adapters 10 - 222 A/21 At Suspension Strut Domes
- Remove strut tower rear bolts - 3 -.
- Secure Adapter 10 - 222 A/21 without Adapter 10 - 222 A/4 to suspension strut towers.
- The supports are designated for left and right side of the vehicle.
- The center mounting point - 2 - of supports is on the strut tower front bolts.
- The Adapters 10 - 222 A/21 are fastened with the strut tower rear bolts - 3 -.
- The knurled head screw - 1 - must be turned down so far that the support plate rests on top of the strut tower.
Fig 9: Installing Adapter 10 - 222 A/4 With Adapters T40093/6 On Adapters 10 - 222 A/21 And Secure Spindles 10 - 222 A/11 At Engine Lifting Eyes
- Install Adapter 10 - 222 A/4 with adapters T40093/6 on adapters 10 - 222 A/21.
- Secure spindles 10 - 222 A/11 on engine lifting eyes.
- Pre-tension engine slightly using spindles on engine support bridge.
- Remove both front wheels.
- Remove sound insulation by loosening fasteners - 1, 2, 4 -.
NOTE:
- Disregard - 3 -.
- Remove front part of left and right from wheel housing liner → 66 - EXTERIOR EQUIPMENT .
- Free up secondary air injection (AIR) air guide hose - 1 - on ATF cooler bracket.
- Remove bolts - arrows - and remove ATF cooler.
- Secure ATF cooler with attached coolant hoses to engine.
- Remove sound insulation bracket by removing bolts - 1 -.
- Remove cross member by removing bolts - 2 -.
- Remove left drive axle heat shield - arrows -.
NOTE:
- For the sake of illustration, shown with engine removed.
- Remove right drive axle heat shield - arrows -.
- Remove left and right drive axles from transmission flange shafts.
- Remove left and right stabilizer bar mounting bolts - 1 and 2 -.
- Remove bolts - 3 and 4 -.
NOTE:
- Ignore - 1 and 2 -.
- Remove left and right engine mounting bolts - arrows -.
- Remove engine carrier.
Fig 18: Right Engine Mount Electrical Harness Connector, Right Engine Support Electrical Wiring Bracket & Engine Support With Engine Mount Bolts
- Disconnect electrical connector - 2 - on right engine mount.
- Remove electrical wiring bracket from right engine support - 1 -.
- Remove bolts - arrows - and remove right engine support with engine mount.
NOTE:
- The B+ line can only be removed after disconnecting electrical connector terminal 50.
- Remove Ground (GND) cable - 1 -.
- Remove electrical wires - 3 - and - 4 -.
- Remove bolts - 2 - and - 5 - and remove starter.
- Insert guide pin on adapter T40058 so smaller diameter - arrow 2 - faces toward engine. The larger diameter - arrow 1 - faces toward adapter.
- To loosen torque converter bolts, counterhold crankshaft with adapter T40058.
NOTE:
- Pay no attention to - arrow -.
- Remove 3 internal TORX bolts - arrows - of the torque converter in the opening of the removed starter (turn crankshaft 1 /3 revolution further for each bolt).
- Remove front cross member - arrows -.
- Remove left front muffler nuts - 1 -.
- Remove bolt - 3 -.
NOTE:
- Disregard - 2 -.
- Remove right front muffler nuts - 1 -.
- Remove bolt - 2 - and remove with spring element.
CAUTION:
There is a risk of damaging flex joint in front exhaust pipe.
- Do not bend flex joint in front exhaust pipe more than 10°.
- Remove nuts - arrows - on front muffler retaining tabs.
- Disconnect exhaust system at clamping sleeves - 1 and 2 - and remove front muffler.
- If present, remove drive shaft heat shield - A - - arrows -.
- Remove bolts connecting drive shaft to transmission.
- Press drive shaft together with rear final drive; the universal joint is able to slide axially.
- Tie up drive shaft to body.
- Remove left and right front transmission mount bolts - arrows -.
- Remove bolts - arrows - and remove left transmission support with transmission mounting.
NOTE:
- Disregard - 1 -.
- Remove bolts - arrows - and remove right transmission support with transmission mounting.
- Press ball socket - 1 - of selector lever cable off from selector shaft lever using pry lever 80 - 200.
- Unclip securing plate - 2 - at selector lever cable mounting bracket.
- Remove bolt - 3 - and lay aside selector lever cable.
- Remove nut - arrow - and remove ATF lines from bracket.
- Remove bolt - arrow - on ATF line bracket.
- Remove bolt - arrow - and remove ATF lines from transmission.
- Loosen bolt - 1 - on lower left coolant pipe bracket.
NOTE:
- Disregard - 2 to 4 -.
CAUTION:
There is a risk of destroying the transmission control module (Mechatronic) with static discharge.
- Do not touch contacts in transmission connector with hands.
- To discharge static electricity, touch transmission housing with hand (without wearing gloves).
- Disconnect electrical connector on transmission by turning screw connection counter-clockwise - arrow -.
- Mount transmission support 3282 on Engine/Transmission Jack V.A.G 1383 A.
- Place Adapter 3282/48 on transmission support 3282 , as shown in the illustration.
- Align arms of the transmission support to correspond with holes in the adjustment plate.
- Attach support elements on adjustment plate, as illustrated.
NOTE:
- The pin 3282/50 has one flattened side - arrow -. When inserting into transmission, the flattened side must face toward the oil pan.
- The arrow symbol on the adjusting plate 3282/52 points in the direction of travel.
- Place Engine/Transmission Jack V.A.G 1383 A with transmission support 3282 under transmission.
- Align Adapter 3282/48 so that it is parallel to the transmission by adjusting the transmission support 3282.
Fig 39: Securing Mount To Threaded Hole At Back Left Of Transmission With An M10X20 Screw & Inserting Flattened Pin 3282/50 Into Mounting Hole At Right Rear Of Transmission Housing
- Secure mount to threaded hole at back left of transmission with an M10x20 screw - arrow 1 -.
- Insert flattened Pin 3282/50 into mounting hole at right rear of transmission housing - arrow 2 -.
CAUTION:
- The flattened side of the pin must face toward transmission oil pan, so that it does not bend or become damaged.
- If the transmission oil pan is damaged, it must be replaced.
Fig 40: Insert Pin In Left Front Mounting Hole On Transmission Housing & Placing Pin In Housing Recess At Right Front Of Differential Housing
- Insert pin in left front mounting hole on transmission housing - arrow 2 -.
- Place pin in housing recess at right front of differential housing - arrow 1 -.
- Raise transmission slightly using Engine/Transmission Jack V.A.G 1383 A.
- Remove tunnel cross member bolts - arrows -.
- Evenly lower engine/transmission assembly with spindles on Engine Support Bridge 10 - 222 A and with Engine/Transmission Jack V.A.G 1383 A until dimension - a - is reached.
- Dimension - a - = 70 mm.
- Remove bolts - 3 through 10 - connecting engine to transmission.
NOTE:
- Ignore - A -.
- Pull left lower coolant pipe slightly to left.
- Press transmission off alignment sleeves and off engine and press torque converter simultaneously through opening of removed starter and off drive plate.
- Disconnect electrical connector - arrow - on Engine Speed (RPM) Sensor G28.
- Lower transmission at rear edge by adjusting transmission support 3282 accordingly.
- Pay attention to drive shaft flange clearance when lowering transmission.
- Secure torque converter in transmission against falling down using Bracket 30 - 211 A.
