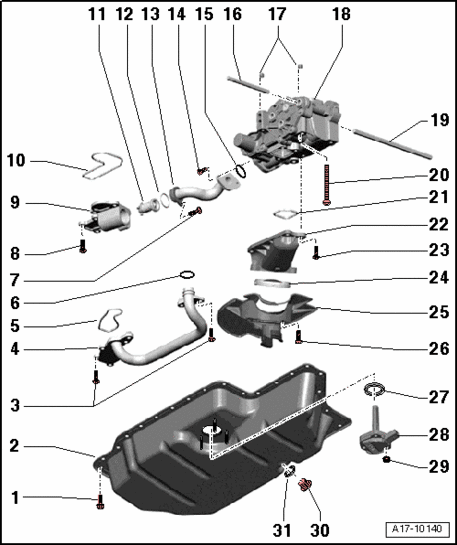

Oil pump and lower part of oil pan, assembly overview: Notes
WARNING: This page is about a different car, the 2010 Audi A8, 2009 Audi A8, 2008 Audi A8, and 2007 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.
1 - Bolt
- 9 Nm
2 - Oil pan (lower section)
- Removing and installing → Lower part of oil pan, removing and installing
3 - Bolt
- 9 Nm
4 - Oil pipe
5 - Gasket
- Replace
6 - O-ring
- Replace
7 - Bolt
- 9 Nm
8 - Bolt
- 9 Nm
9 - Oil check valve housing
10 - Gasket
- Replace
11 - Oil check valve
12 - O-ring
- Replace
13 - Oil pipe
14 - Bolt
- 9 Nm
15 - O-ring
- Replace
16 - Drive shaft for coolant pump
17 - Fitting sleeves
- 2 pieces
18 - Oil pump
- Do not disassemble
- With relief valve approx. 5.5 bar
- Removing and installing → Oil pump, removing and installing
19 - Drive shaft for oil pump
20 - Bolt
- Replace
- 8 Nm additional 90° (1 /4 turn).
21 - Gasket
- Replace
22 - Intake tube
- For oil pump
23 - Bolt
- 9 Nm
24 - Oil strainer
- Clean
25 - Oil baffle
26 - Bolt
- 9 Nm
27 - Seal
- Replace
28 - Oil Level Thermal Sensor G266
29 - Bolt
- 9 Nm
30 - Oil drain plug
- 25 Nm
31 - Seal
- Replace
