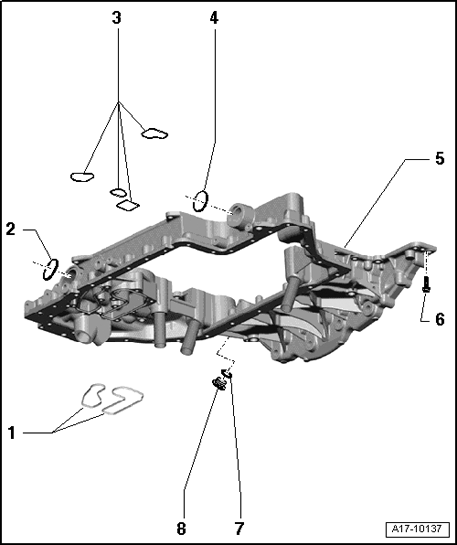

Upper part of oil pan, assembly overview: Notes
WARNING: This page is about a different car, the 2010 Audi A8, 2009 Audi A8, 2008 Audi A8, and 2007 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.
1 - Seals
- Replace
2 - O-ring
- Replace
3 - Seals
- Replace
4 - O-ring
- Replace
5 - Oil pan (upper section)
- Removing and installing → Upper part of oil pan, removing and installing
6 - Bolt
- Tightening order → Upper part of oil pan, tightening sequence
7 - Seal
- Replace
8 - Locking bolt
- 35 Nm
