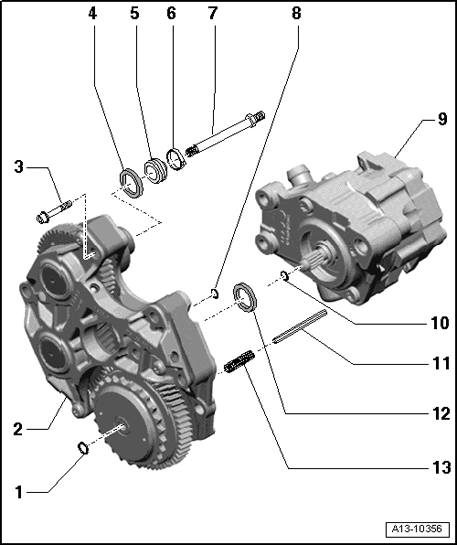

Power take-off, assembly overview
WARNING: This page is about a different car, the 2010 Audi A8, 2009 Audi A8, 2008 Audi A8, and 2007 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.
1 - Circlip
2 - Spur gear unit
- Cannot be replaced separately
- Removing and installing → Spur gear unit, removing and installing
3 - Bolt
- 22 Nm
4 - Sealing ring for A/C compressor drive
- Replacing → Power take-off seals, replacing .
5 - Dust seal cap for A/C compressor drive
6 - Clamp
7 - Drive shaft for A/C compressor
- 60 Nm
8 - O-ring
- Replace
9 - Power-steering pump
10 - O-ring
- Replace
11 - Drive shaft for oil pump
12 - Sealing ring for power-steering pump drive
- Replacing → Power take-off seals, replacing .
13 - Spring
