Center and rear muffler, separating: Separating

Cut through exhaust pipe at right angles with body saw (for example, V.A.G 1523 A) at position marked (arrow).

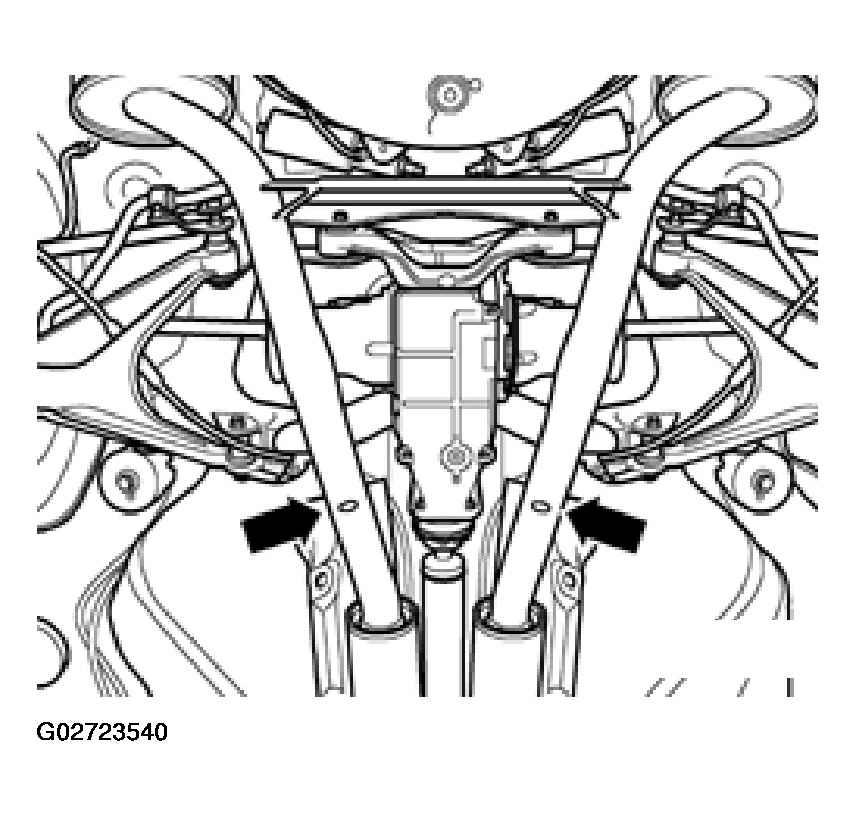

Fig 1: Identifying Positions For Cutting Through Exhaust Pipe With Body Saw
Courtesy of AUDI OF AMERICA, INC.

WARNING: Wear eye protection

When installing, position clamps centered over saw-cuts.
- Install clamps so that ends of bolts (arrows) are not below bottom circumference of clamps, see INSTALLATION POSITION OF REAR CLAMPS .

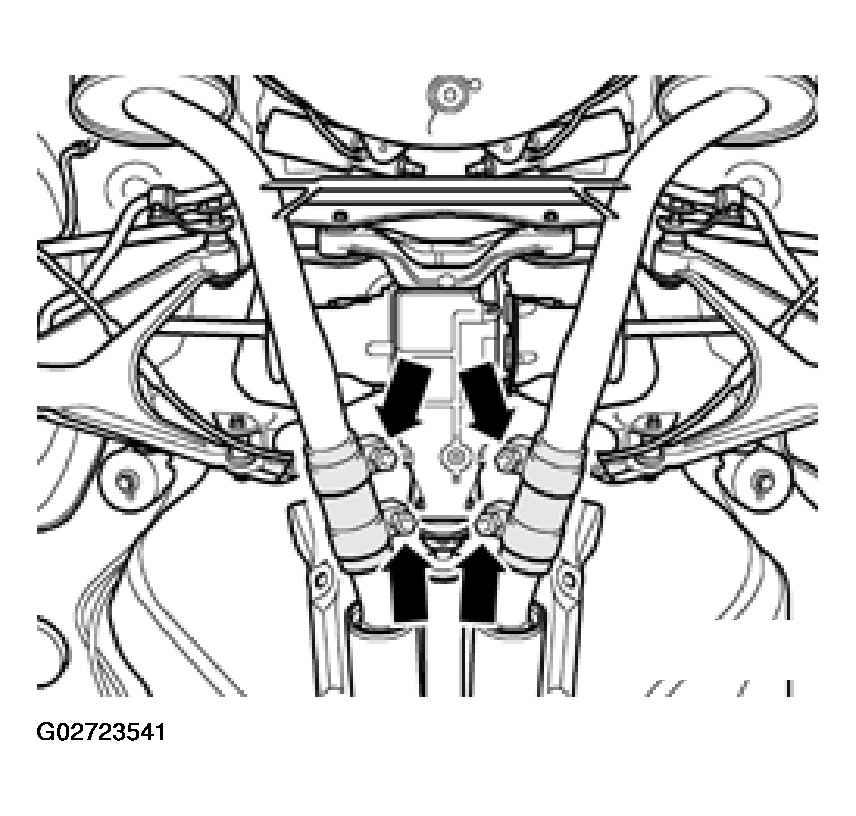

Fig 2: Installing Clamps So That Ends Of Bolts Are Not Below Bottom Circumference Of Clamps
Courtesy of AUDI OF AMERICA, INC.
Align exhaust system. See EXHAUST SYSTEM, ALIGNMENT .
