Turbocharger, overview
NOTE:
- Illustration shows turbocharger of cylinder bank 2 (left).
- Nuts and studs on turbocharger are subjected to high temperatures. Use only genuine parts. See parts catalog.

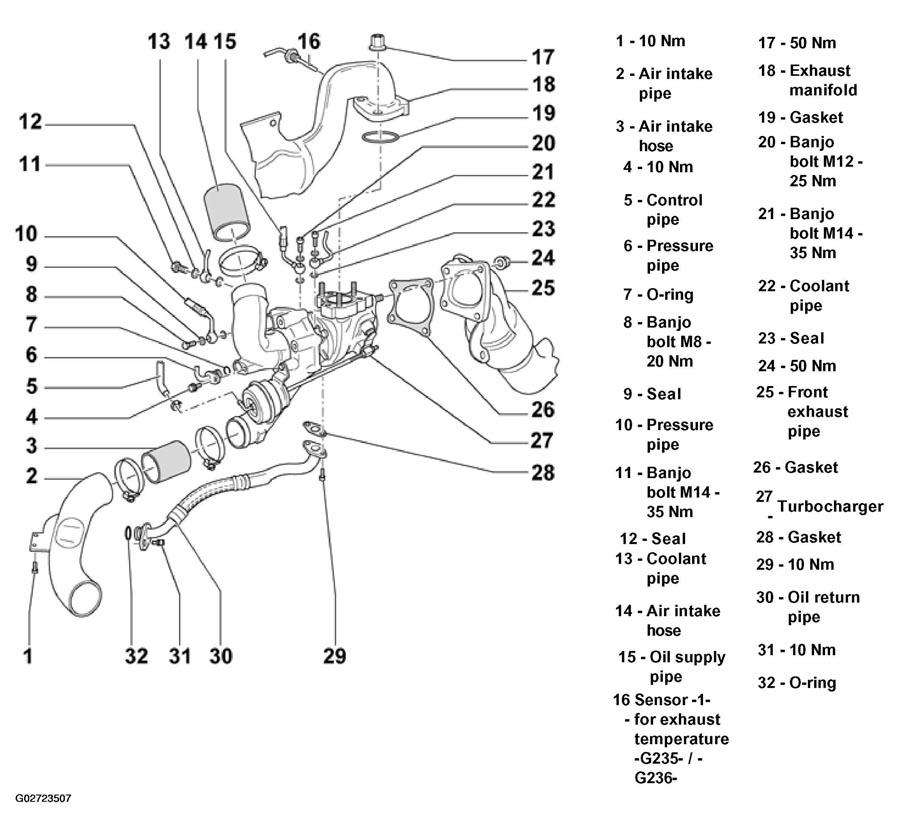

The following list pertains to Fig 1.
- 10 Nm
- Air intake pipe
- Air intake hose
- Remove any traces of oil or grease on hose connections and hoses of charge air system before installing. Do not apply lubricant.
- 10 Nm
- Control pipe
- For Wastegate Bypass Regulator Valve -N75-
- Pressure pipe
- To opposite turbocharger
- O-ring
- Always replace
- Banjo bolt M8 - 20 Nm
- Seal
- Always replace
- Pressure pipe
- Supply pipe for control pressure
- To Wastegate Bypass Regulator Valve -N75-
- Banjo bolt M14 - 35 Nm
- Seal
- Always replace
- Coolant pipe
- Air intake hose
- Remove any traces of oil or grease on hose connections and hoses of charge air system before installing. Do not apply lubricant.
- Oil supply pipe
- Sensor -1- for exhaust temperature -G235- / -G236-
- Connection of temperature sensor must face downward when installing. Guide line upward in a loop.
- Tighten to 25 Nm
- 50 Nm
- Always replace
- Align turbocharger before securing. See INSTALLING .
- Exhaust manifold
- Removing and installing, see EXHAUST MANIFOLD (LEFT SIDE), REMOVING AND INSTALLING or EXHAUST MANIFOLD (RIGHT SIDE), REMOVING AND INSTALLING
- Gasket
- Always replace
- Banjo bolt M12-25 Nm
- Banjo bolt M14-35 Nm
- Coolant pipe
- Seal
- Always replace
- 50 Nm
- Different versions possible
- Always replace
- Front exhaust pipe
- Removing and installing, see FRONT EXHAUST PIPE (LEFT), REMOVING AND INSTALLING or FRONT EXHAUST PIPE (RIGHT), REMOVING AND INSTALLING
- Gasket
- Always replace
- Turbocharger
- Checking, see TURBOCHARGER AND CHARGE PRESSURE REGULATING VALVE, CHECKING
- Removing and installing, see LEFT TURBOCHARGER, REMOVING AND INSTALLING
- Gasket
- Always replace
- 10 Nm
- Oil return pipe
- To top section of sump
- 10 Nm
- O-ring
- Always replace
