Read Measuring Value Block (function 08)

WARNING: When driving or riding in an airbag-equipped vehicle, never hold test equipment in your hands or lap while the vehicle is in motion. Objects between you and the airbag can increase the risk of injury in an accident.

Connect VAG 1551, insert "Transmission Electronics" address word 02 and advance through program sequence until "Select function XX" is indicated in display. See ON BOARD DIAGNOSTIC (OBD), CHECKING .

Indicated on display

Fig 1: VAG 1551 Scan Tool Display - Reading Measuring Value Block (1 Of 4)

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0- and -8- to select "Read Measuring Value Block" function 08.

Indicated on display

Fig 2: VAG 1551 Scan Tool Display - Reading Measuring Value Block (2 Of 4)

Courtesy of AUDI OF AMERICA, INC.

Press -Q- button to confirm input.

Indicated on display

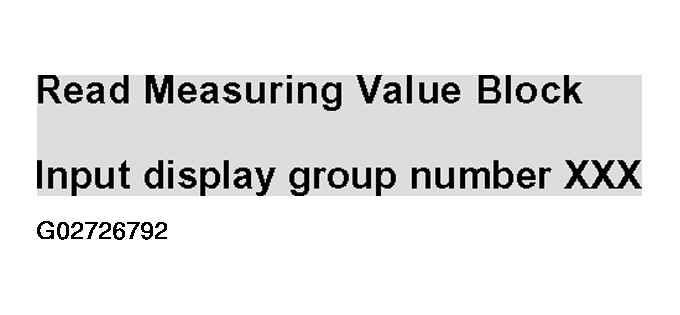

Fig 3: VAG 1551 Scan Tool Display - Reading Measuring Value Block (3 Of 4)

Courtesy of AUDI OF AMERICA, INC.

Input display group number. Display group numbers, see Fig 5 .
Press -Q- button to confirm input.

4 display fields always appear in the measuring value block (in physical values where necessary). For specifications for values in individual display fields => table, => MEASURING VALUE BLOCK TABLE .

Fig 4: VAG 1551 Scan Tool Display - Reading Measuring Value Block (4 Of 4)

Courtesy of AUDI OF AMERICA, INC.

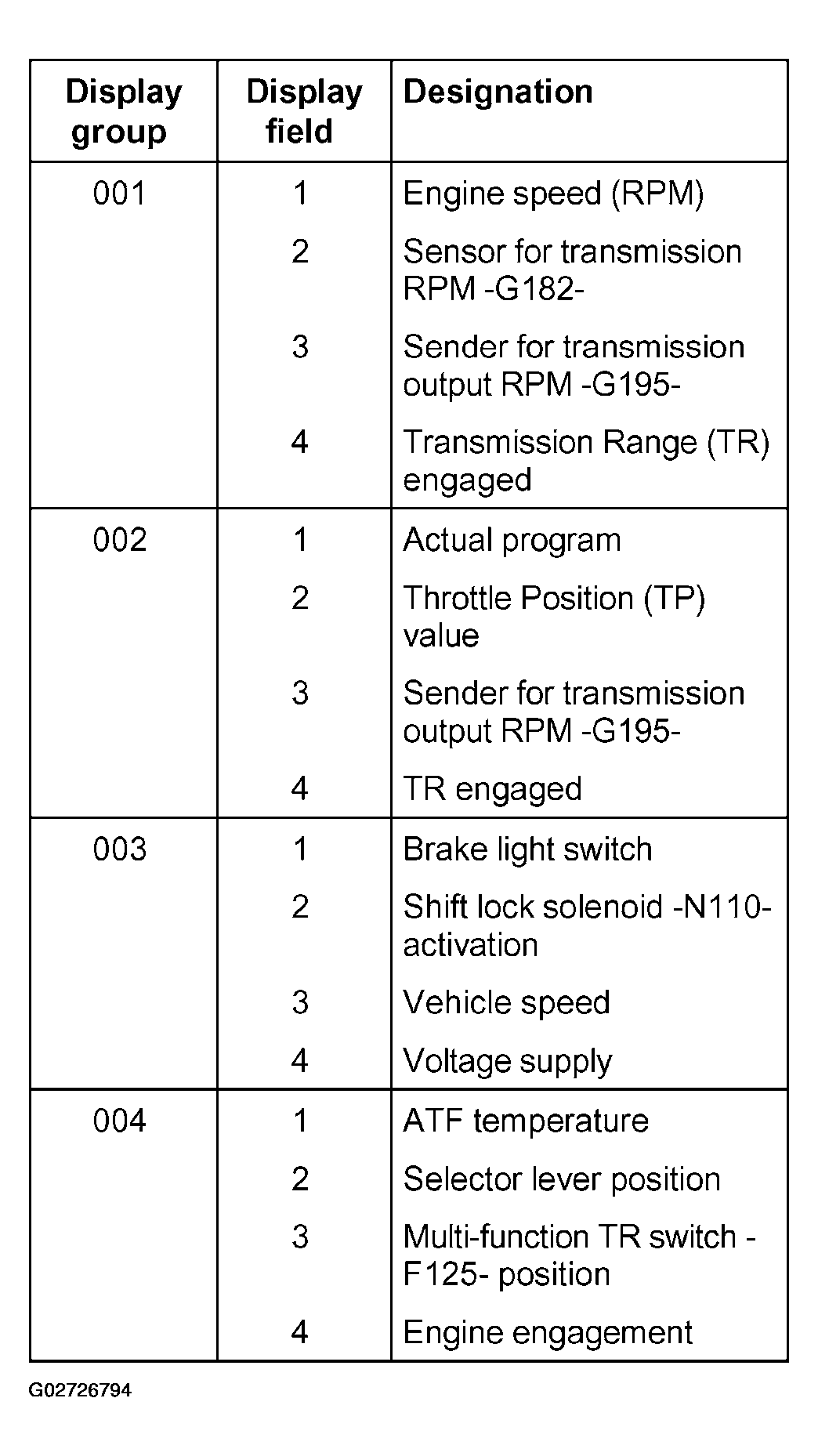

Fig 5: Available Display Group Chart (Display Groups 001 To 004)

Courtesy of AUDI OF AMERICA, INC.

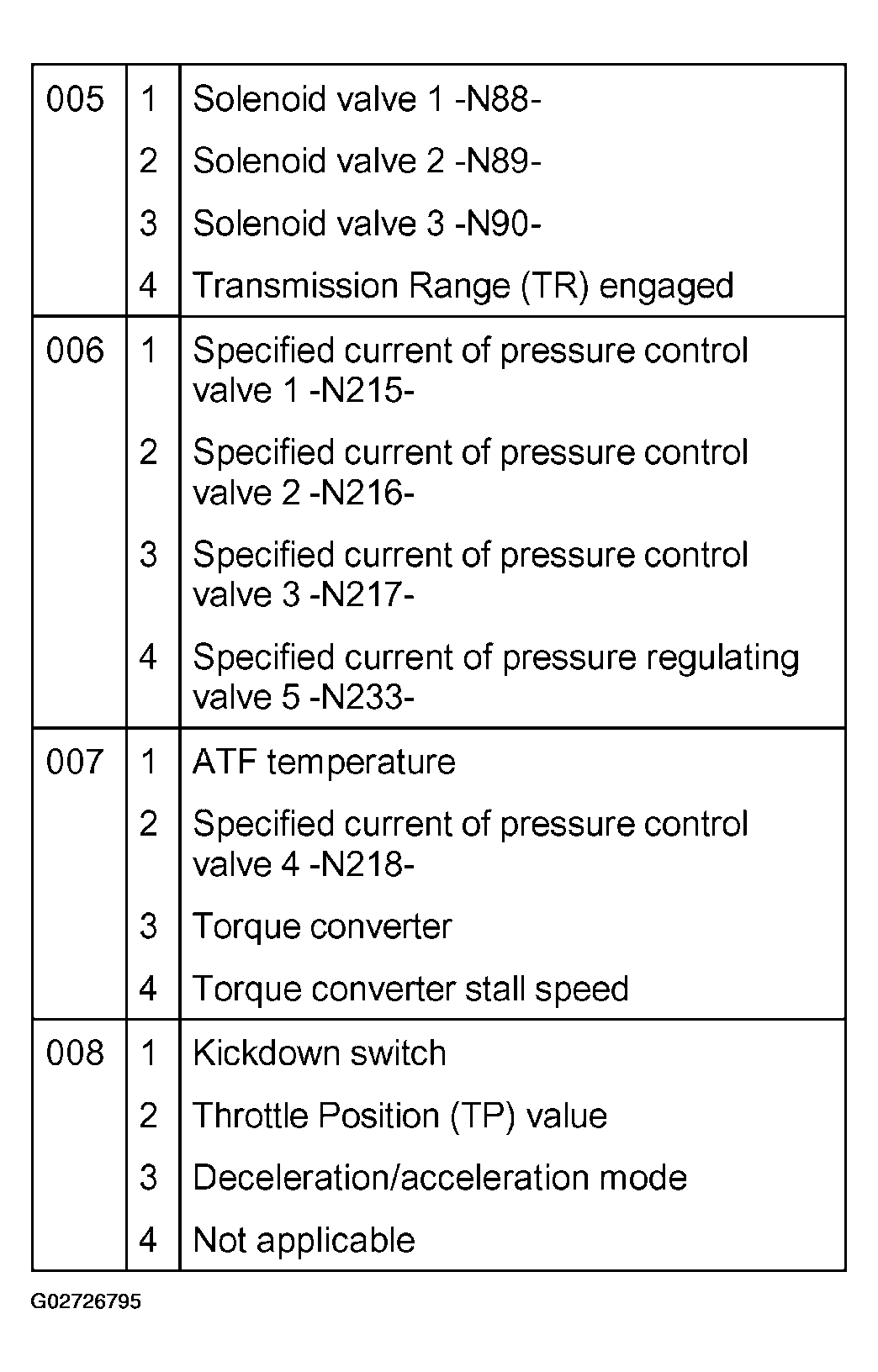

Fig 6: Available Display Group Chart (Display Groups 005 To 008)

Courtesy of AUDI OF AMERICA, INC.

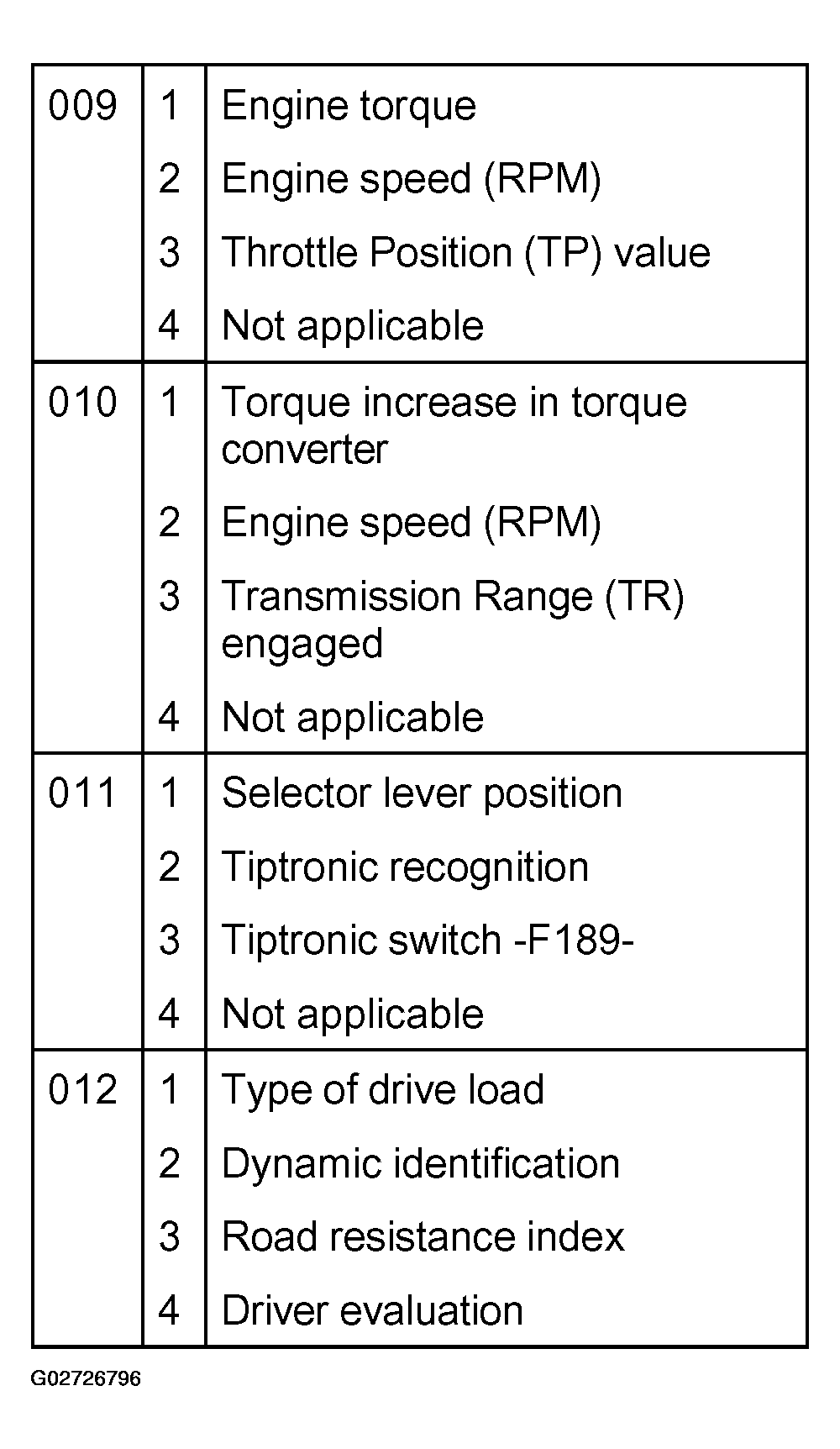

Fig 7: Available Display Group Chart (Display Groups 009 To 012)

Courtesy of AUDI OF AMERICA, INC.

NOTE: The actual display is printed out if the printer is switched on.

If the specified values are attained in all display fields:

Press --> button.

Indicated on display

Fig 8: VAG 1551 Scan Tool Display - Select Function XX

Courtesy of AUDI OF AMERICA, INC.
