Measuring value block table

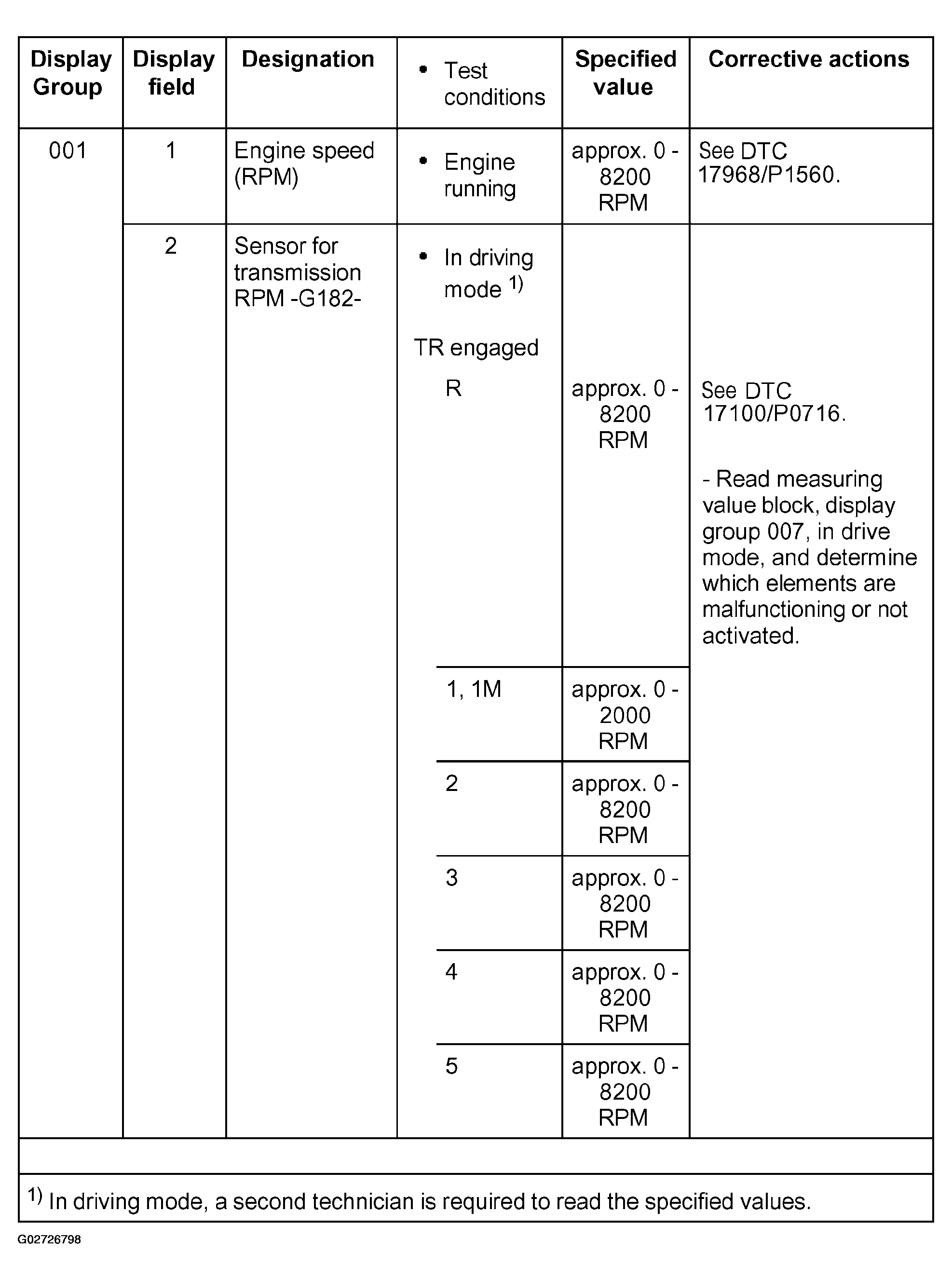

Fig 1: Measuring Value Block Chart (Display Group 1, Display Fields 1 & 2)

Courtesy of AUDI OF AMERICA, INC.

For more DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE .

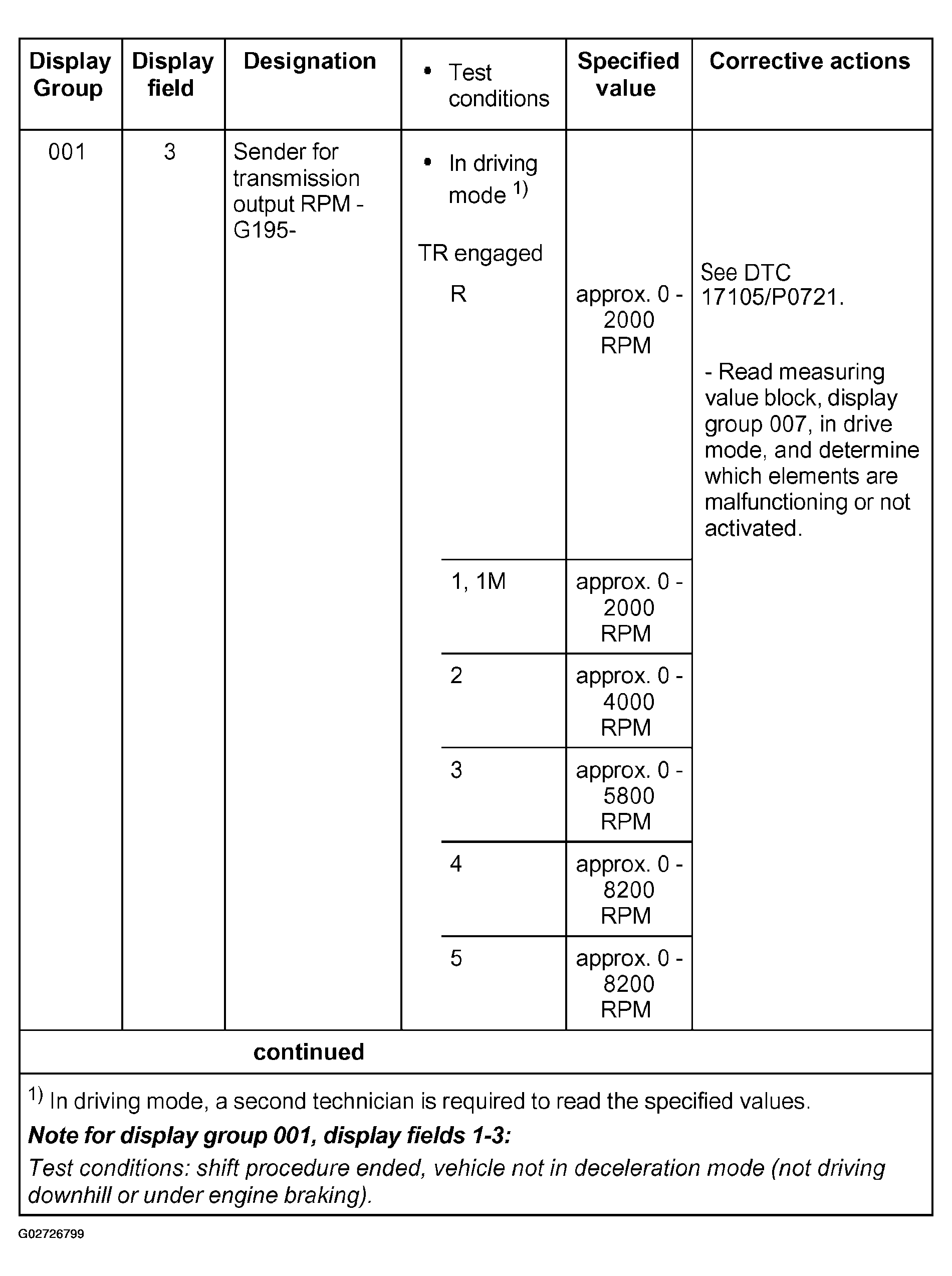

Fig 2: Measuring Value Block Chart (Display Group 1, Display Field 3)

Courtesy of AUDI OF AMERICA, INC.

For more DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE .

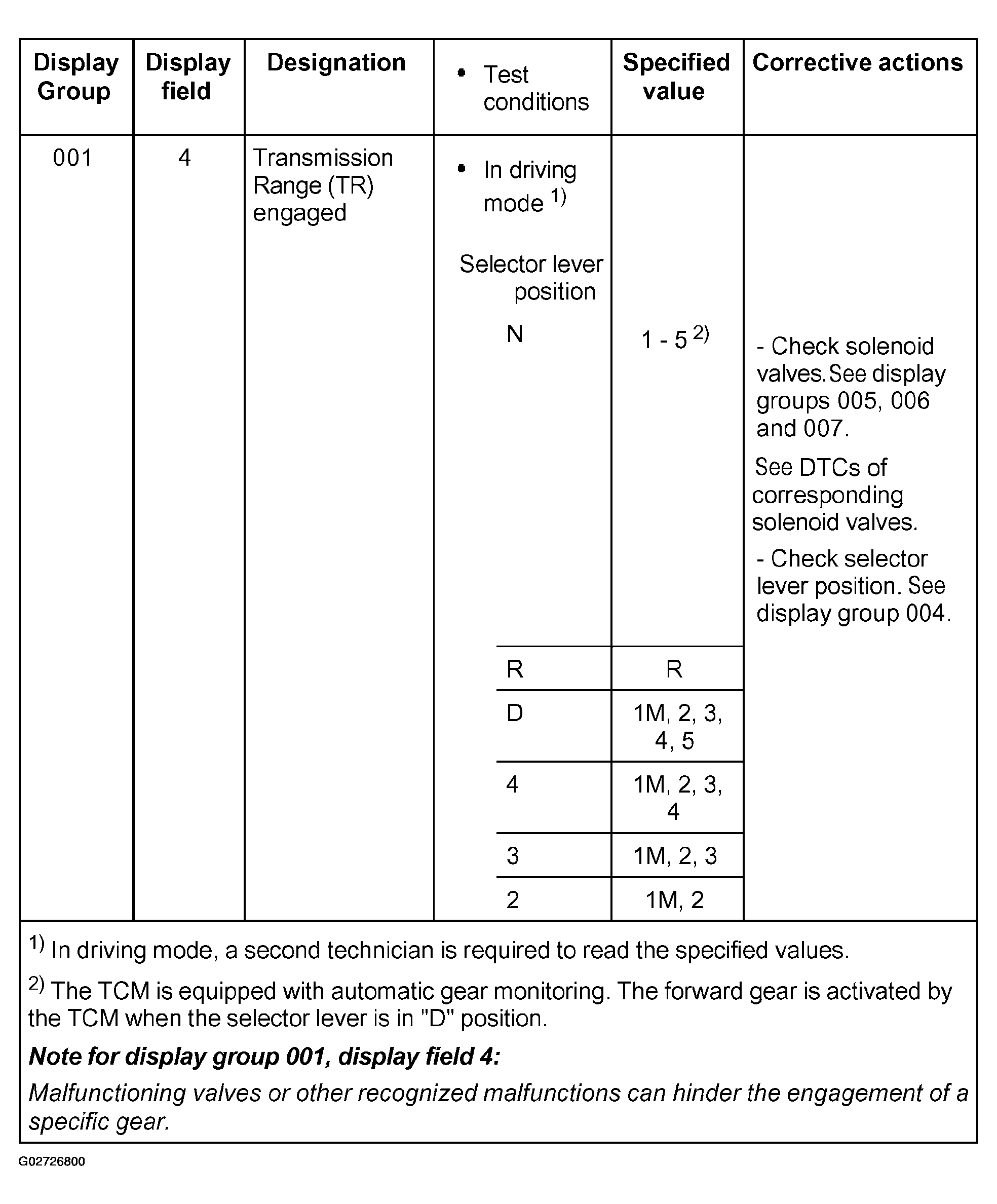

Fig 3: Measuring Value Block Chart (Display Group 1, Display Field 4)

Courtesy of AUDI OF AMERICA, INC.

For more DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE .

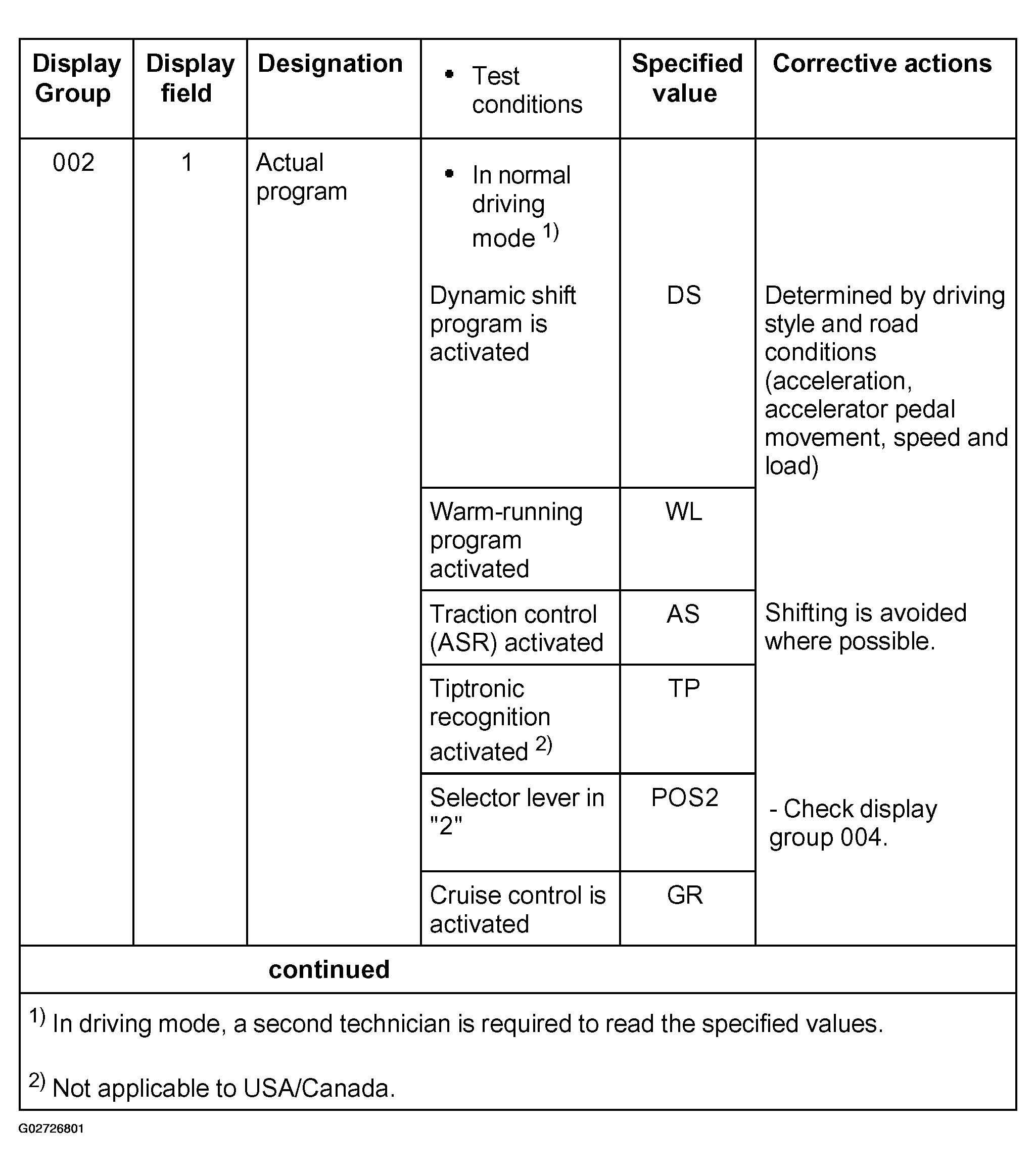

Fig 4: Measuring Value Block Chart (Display Group 2, Display Field 1)

Courtesy of AUDI OF AMERICA, INC.

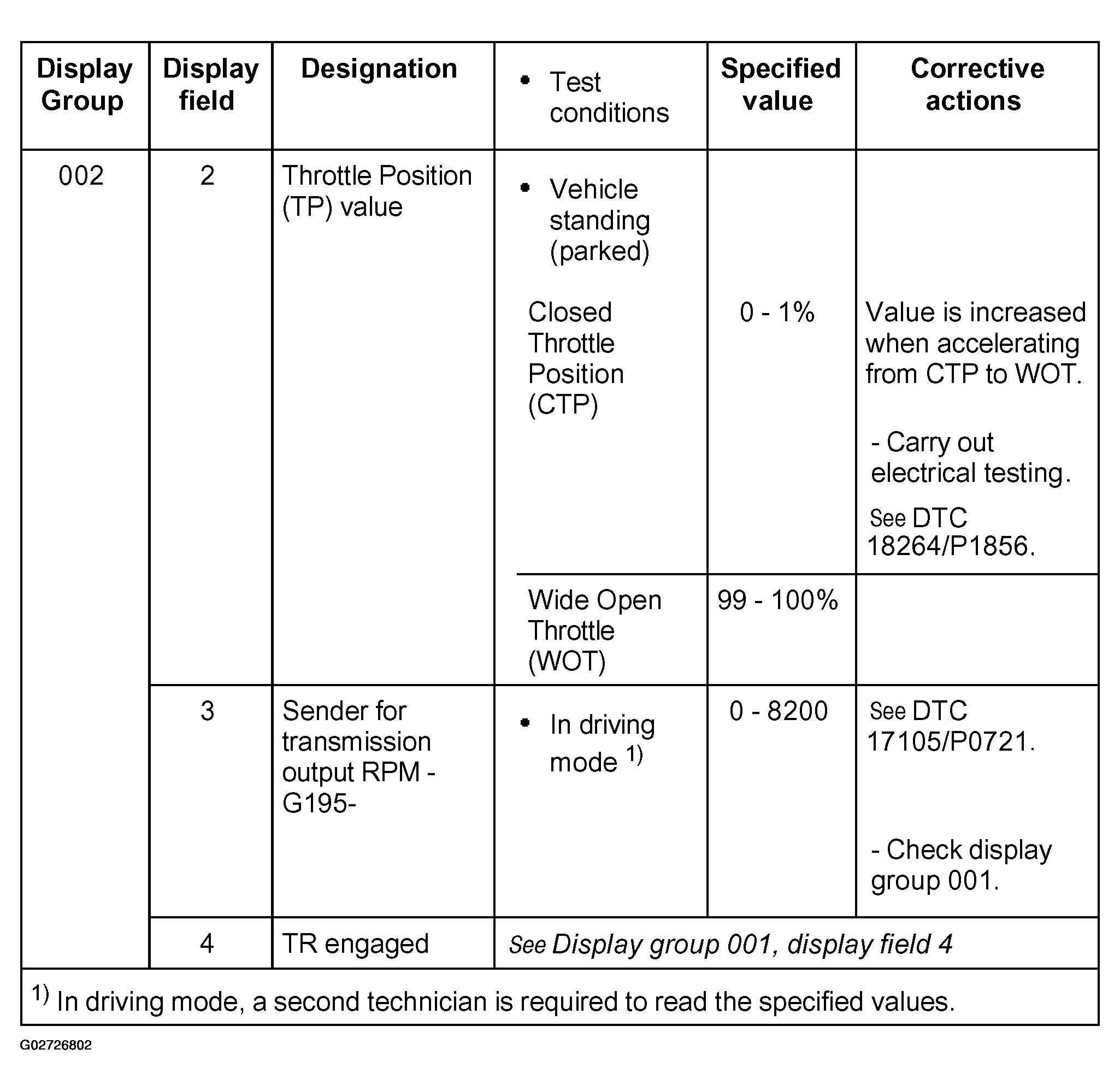

Fig 5: Measuring Value Block Chart (Display Group 2, Display Fields 2, 3 & 4)

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING
For more DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE .

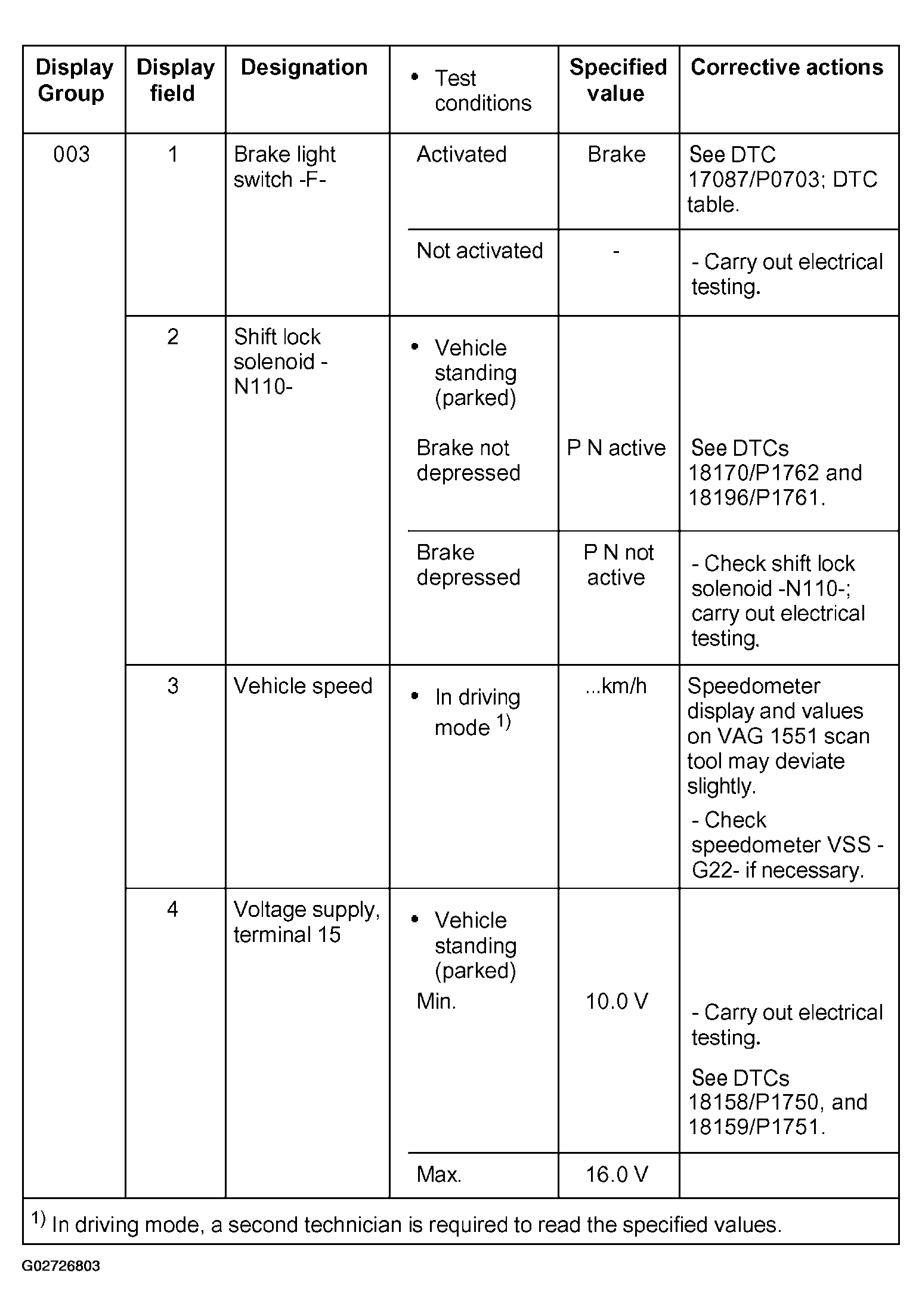

Fig 6: Measuring Value Block Chart (Display Group 3)

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING
For more DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE .

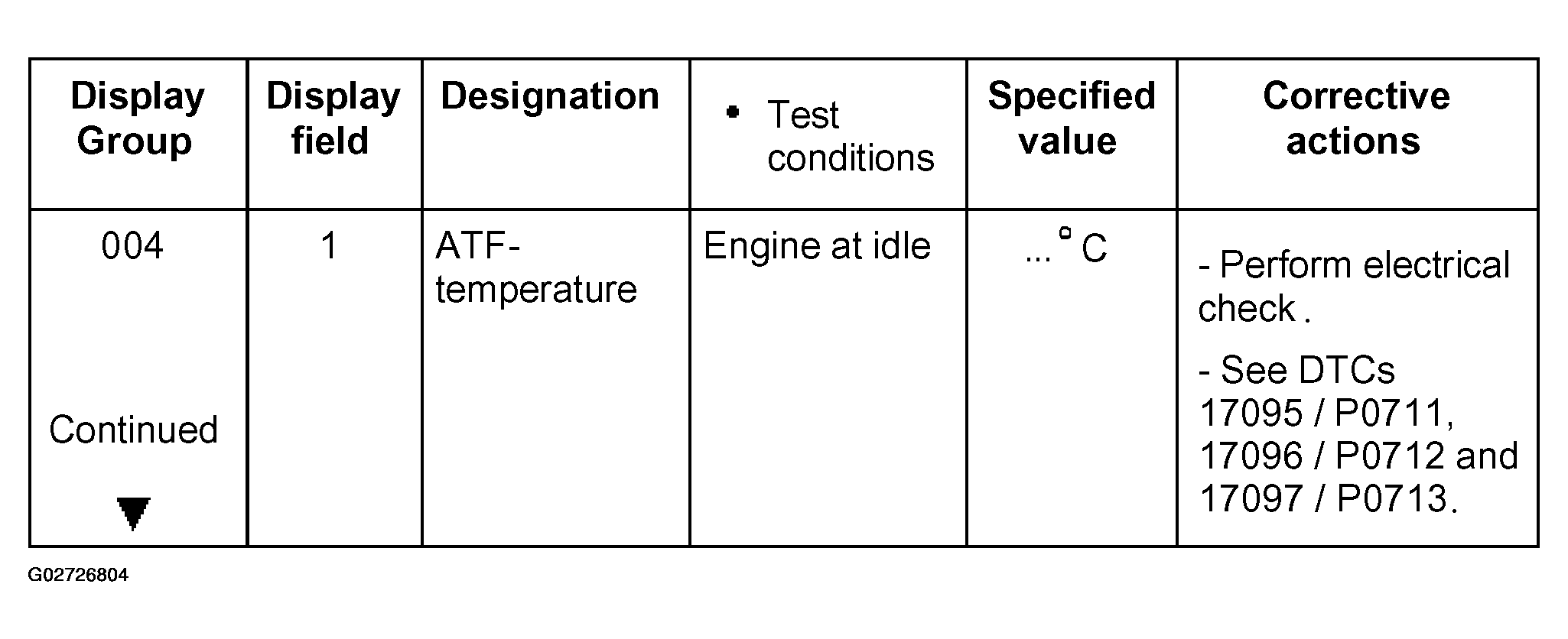

Fig 7: Measuring Value Block Chart (Display Group 4, Display Field 1)

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING
For more DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE .

Note for ATF-temperature:

A recognized temperature of minus 50° C (122° F) indicates a short circuit to Ground (GND),
A recognized temperature of 180° C (356° F) indicates a short circuit to plus (B+) or open circuit.

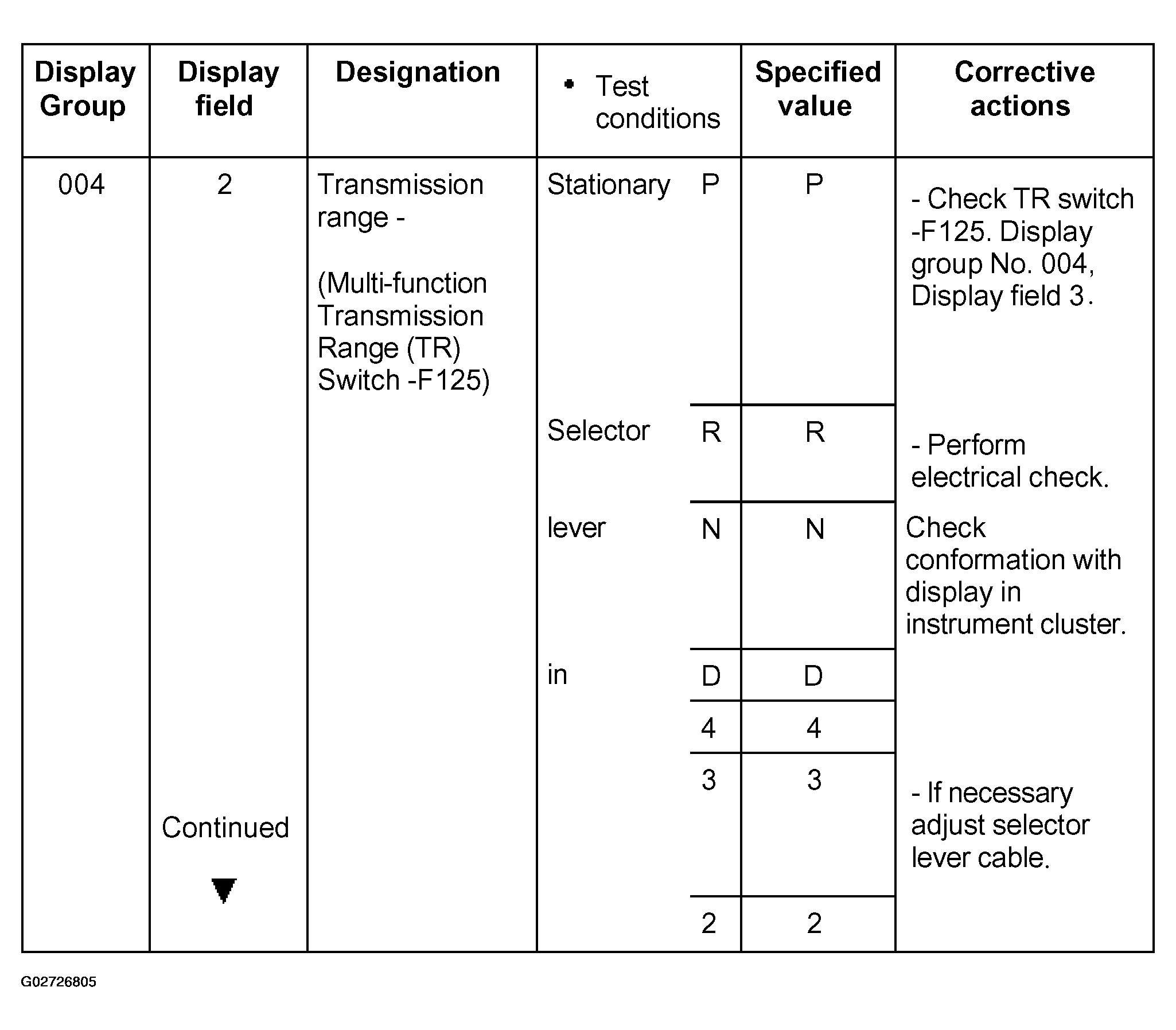

Fig 8: Measuring Value Block Chart (Display Group 4, Display Field 2)

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING
For more DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE .
For selector lever cable adjustment, see SELECTOR LEVER CABLE .

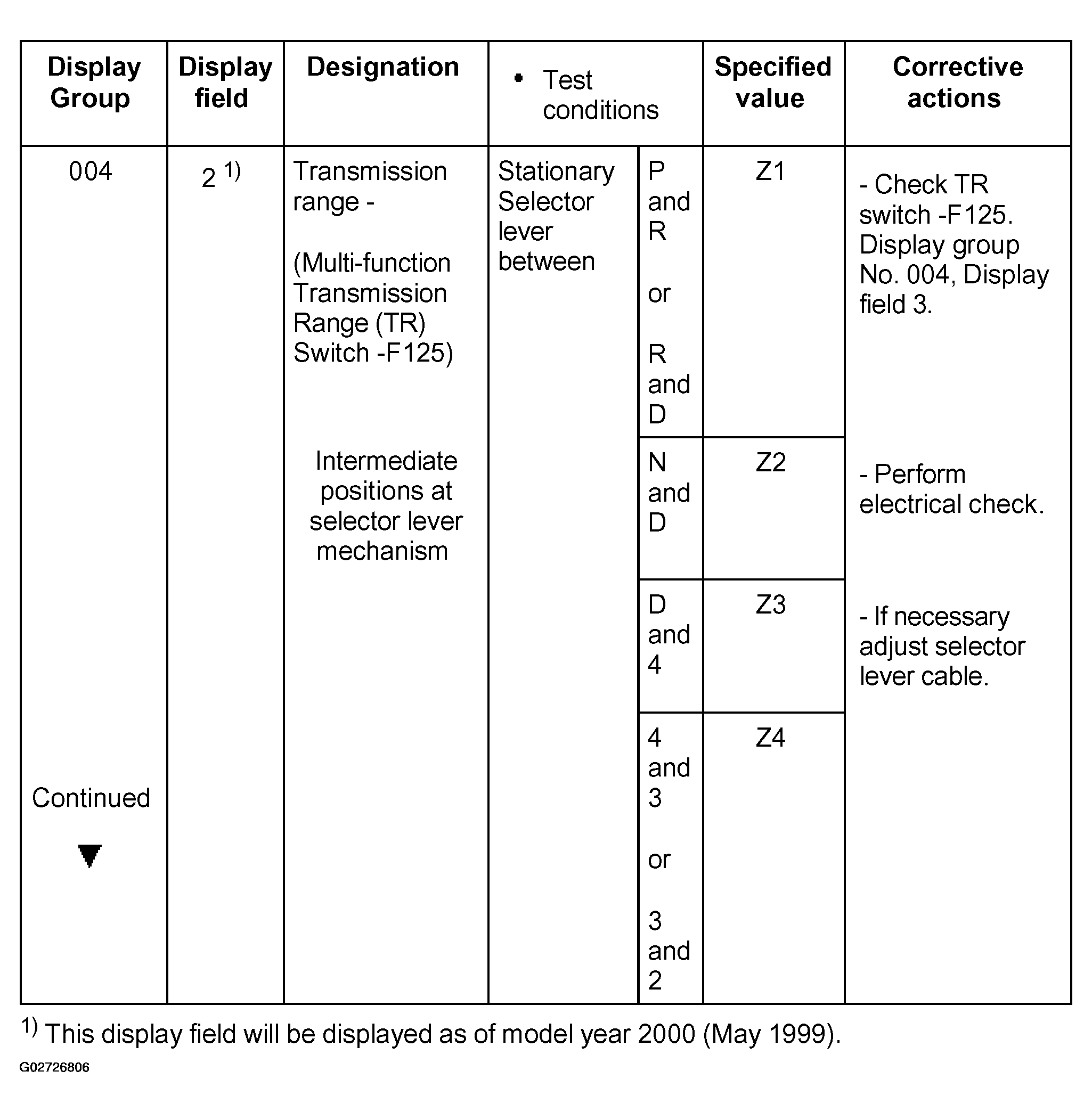

Fig 9: Measuring Value Block Chart (Display Group 4, Display Field 2 Cont.)

Courtesy of AUDI OF AMERICA, INC.

Note to intermediate positions:

If the selector lever is shifted to the indicated intermediate positions, the scan tool will display "Z1", "Z2", "Z3" or "Z4". The display in the instrument cluster must not show the selected position, only PRND432 without a range being illuminated.

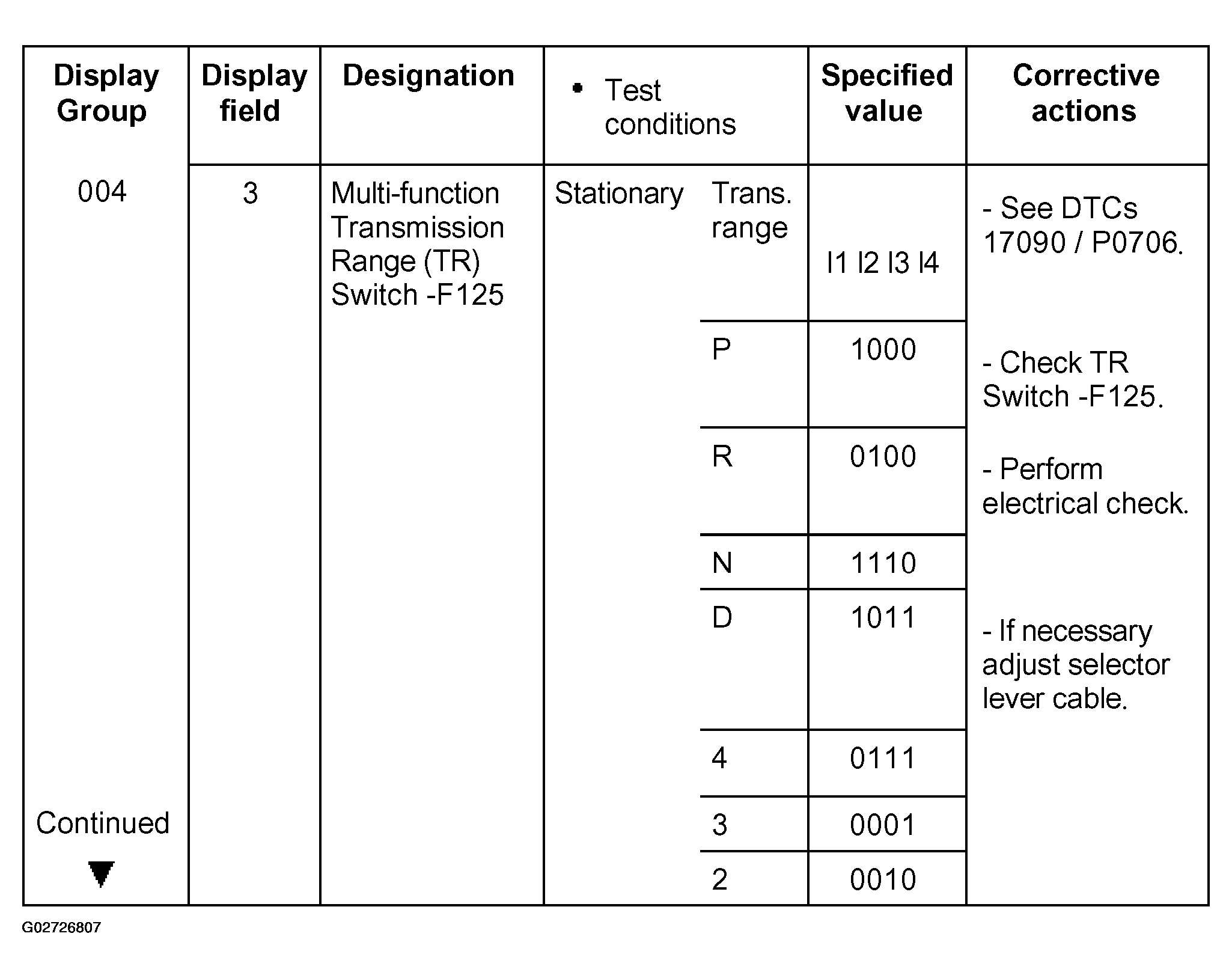

Fig 10: Measuring Value Block Chart (Display Group 4, Display Field 3)

Courtesy of AUDI OF AMERICA, INC.

For DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE
For electrical testing, see ELECTRICAL TESTING .
For selector lever cable adjustment, see SELECTOR LEVER CABLE .

Note to display field 3 of display group number 004:

The input signals for Multi-function Transmission Range (TR) Switch -F125 can be checked at the TCM.

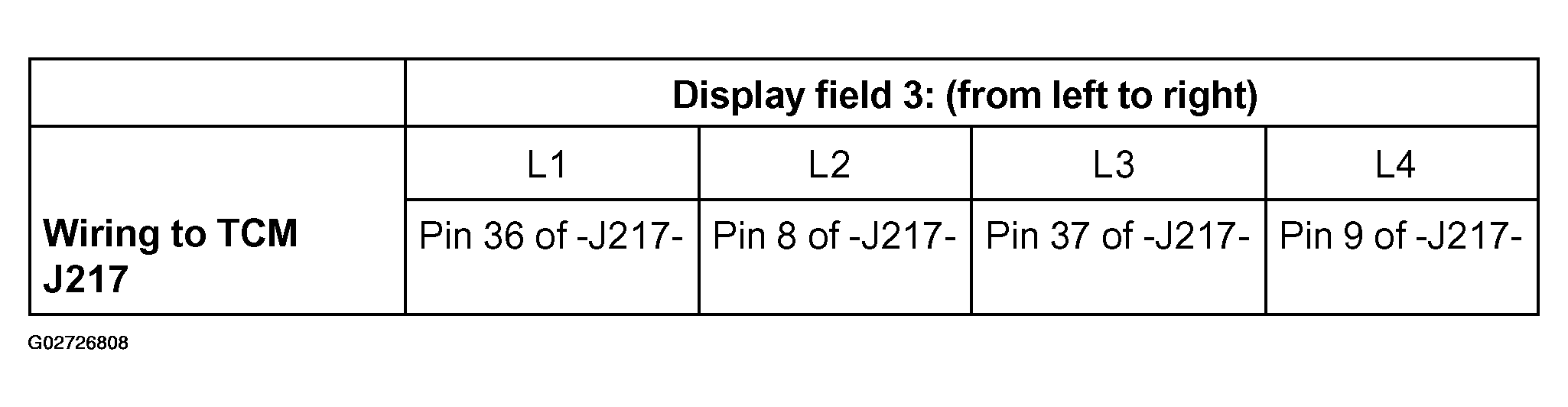

Fig 11: Explantion Of Display Group 4, Display Field 3

Courtesy of AUDI OF AMERICA, INC.

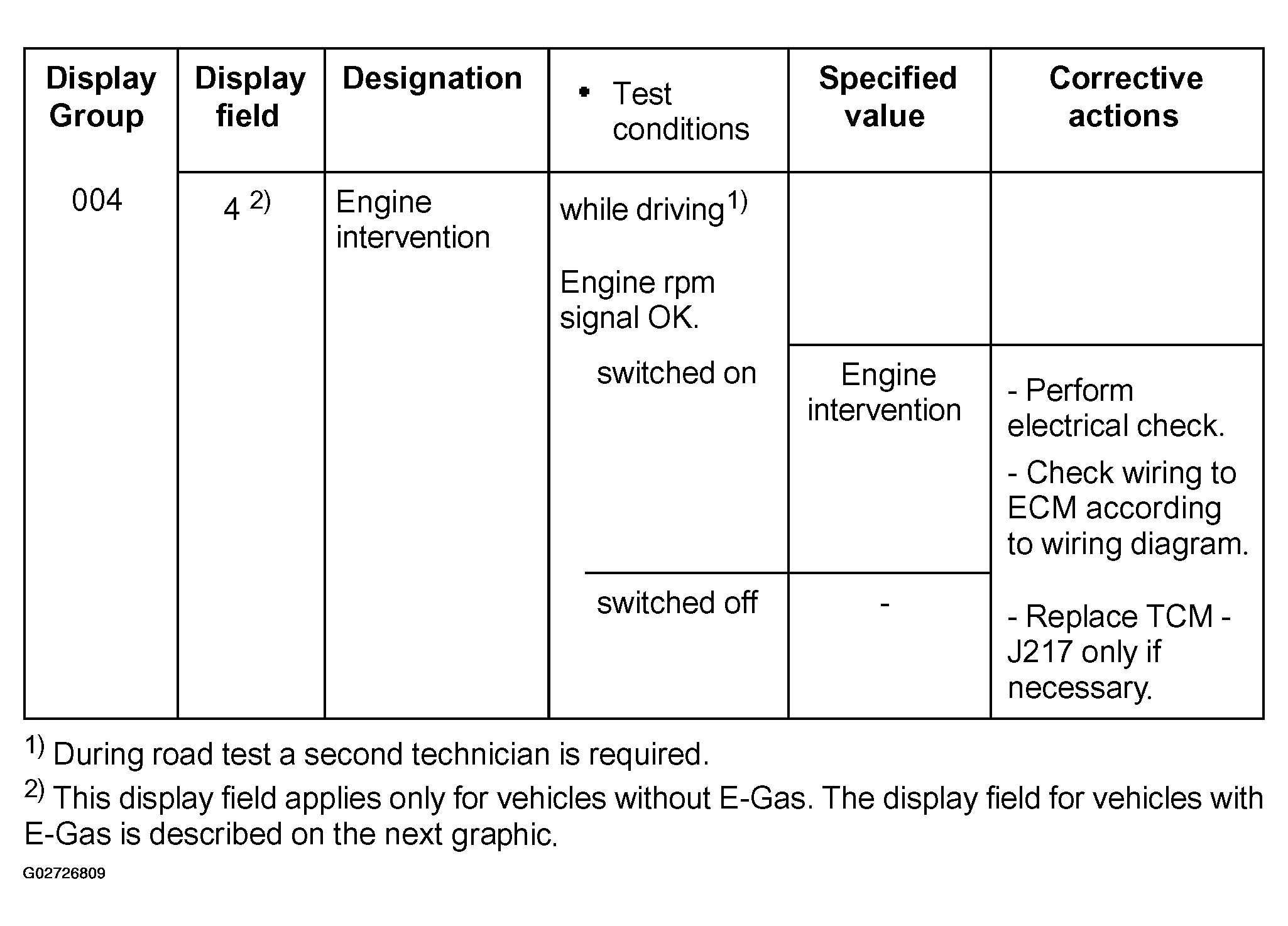

Fig 12: Measuring Value Block Chart, Vehicles Without E-Gas (Display Group 4, Display Field 4)

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING .

Note to display field 4 of display group number 004:

The engine intervention is only activated during shifting. The engine intervention can only be very briefly activated depending on the driving situation. This means that the relative slow data transmission to the V.A.G 1551 scan tool can neglect this brief engine intervention under certain driving conditions.

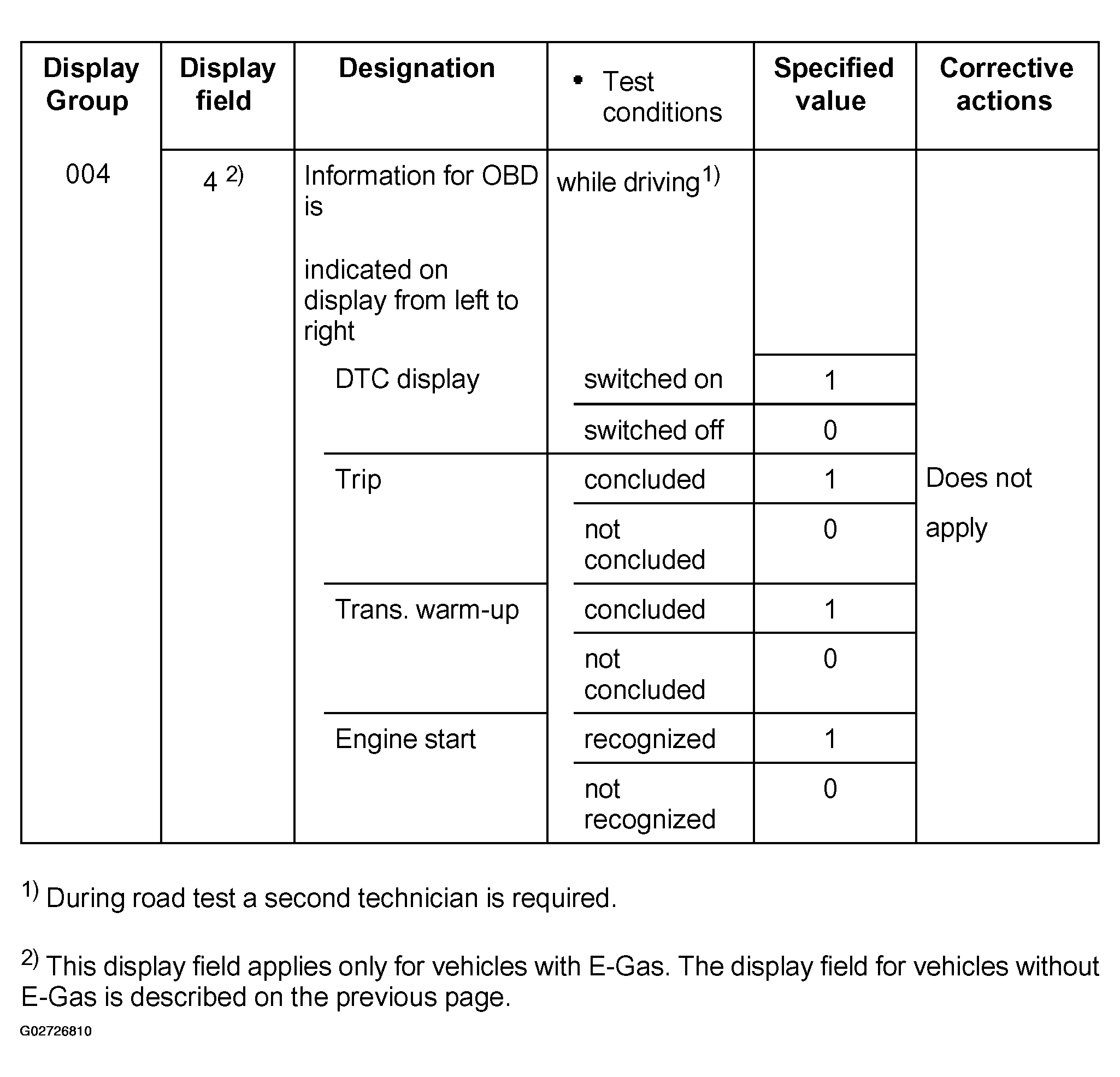

Fig 13: Measuring Value Block Chart, Vehicles With E-Gas (Display Group 4, Display Field 4)
Courtesy of AUDI OF AMERICA, INC.

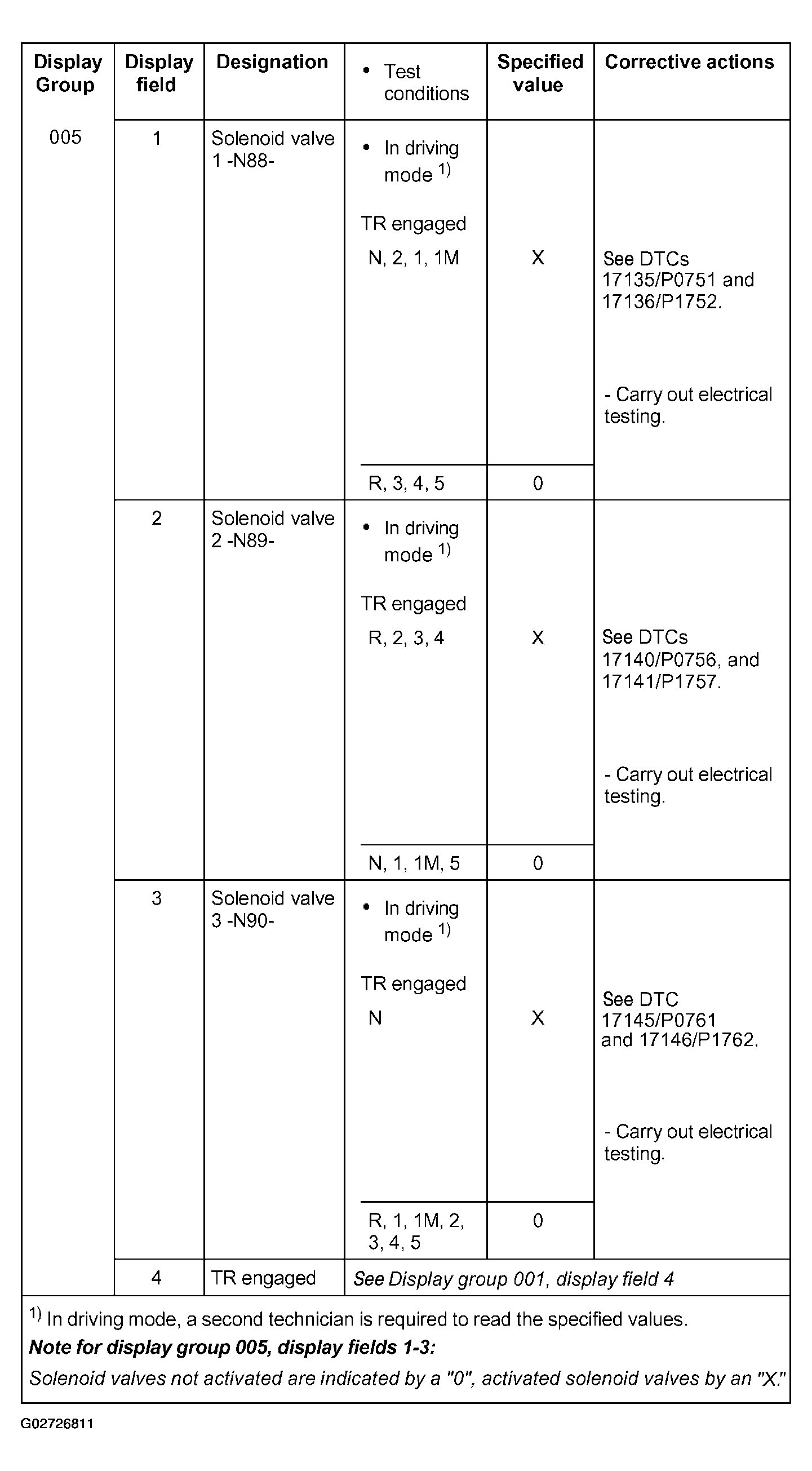

Fig 14: Measuring Value Block Chart (Display Group 5, Display Fields 1 To 3)
Courtesy of AUDI OF AMERICA, INC.
- For DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE .
- For electrical testing, see ELECTRICAL TESTING .

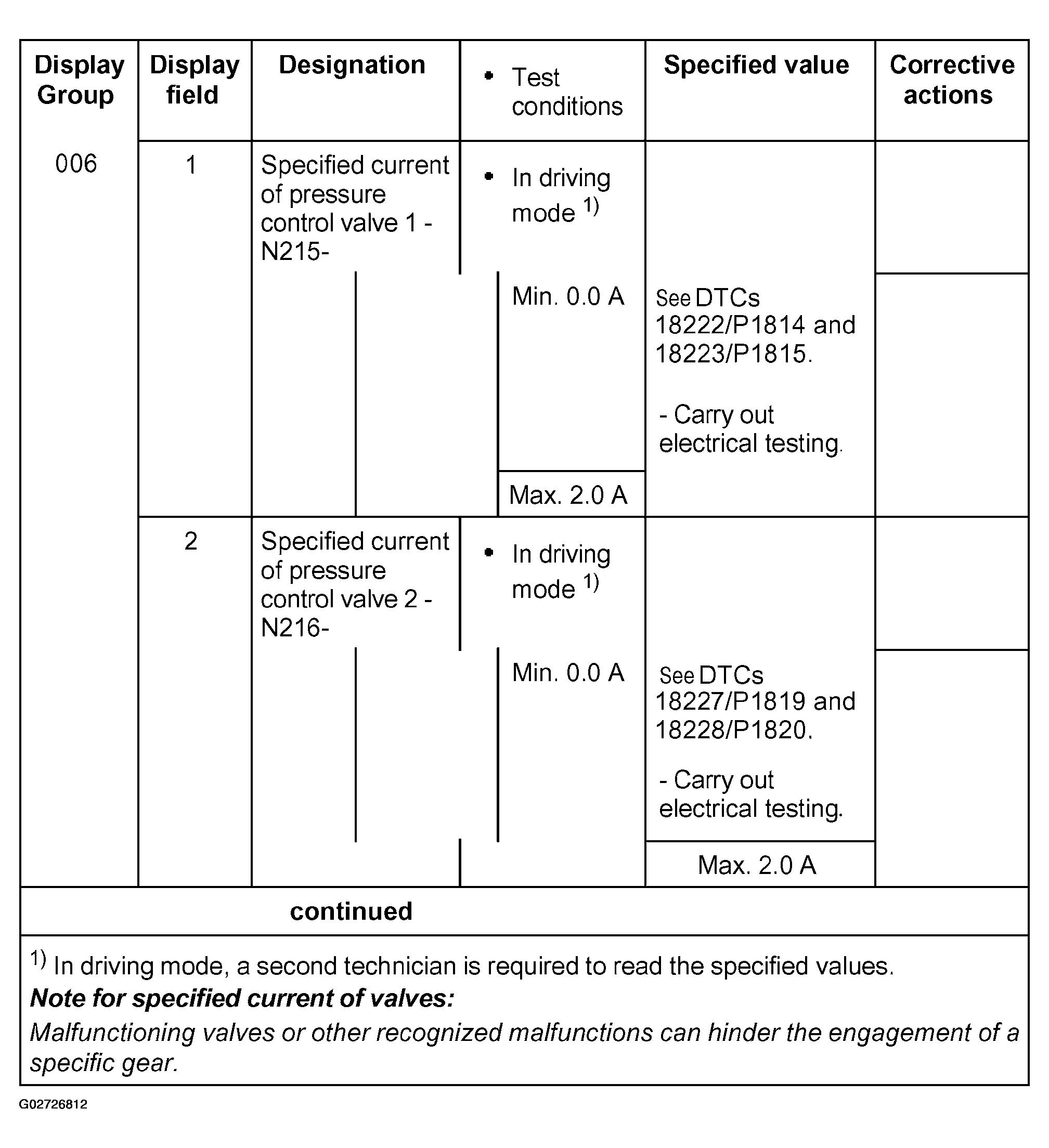

Fig 15: Measuring Value Block Chart (Display Group 6, Display Fields 1 & 2)
Courtesy of AUDI OF AMERICA, INC.
- For DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE .
- For electrical testing, see ELECTRICAL TESTING .

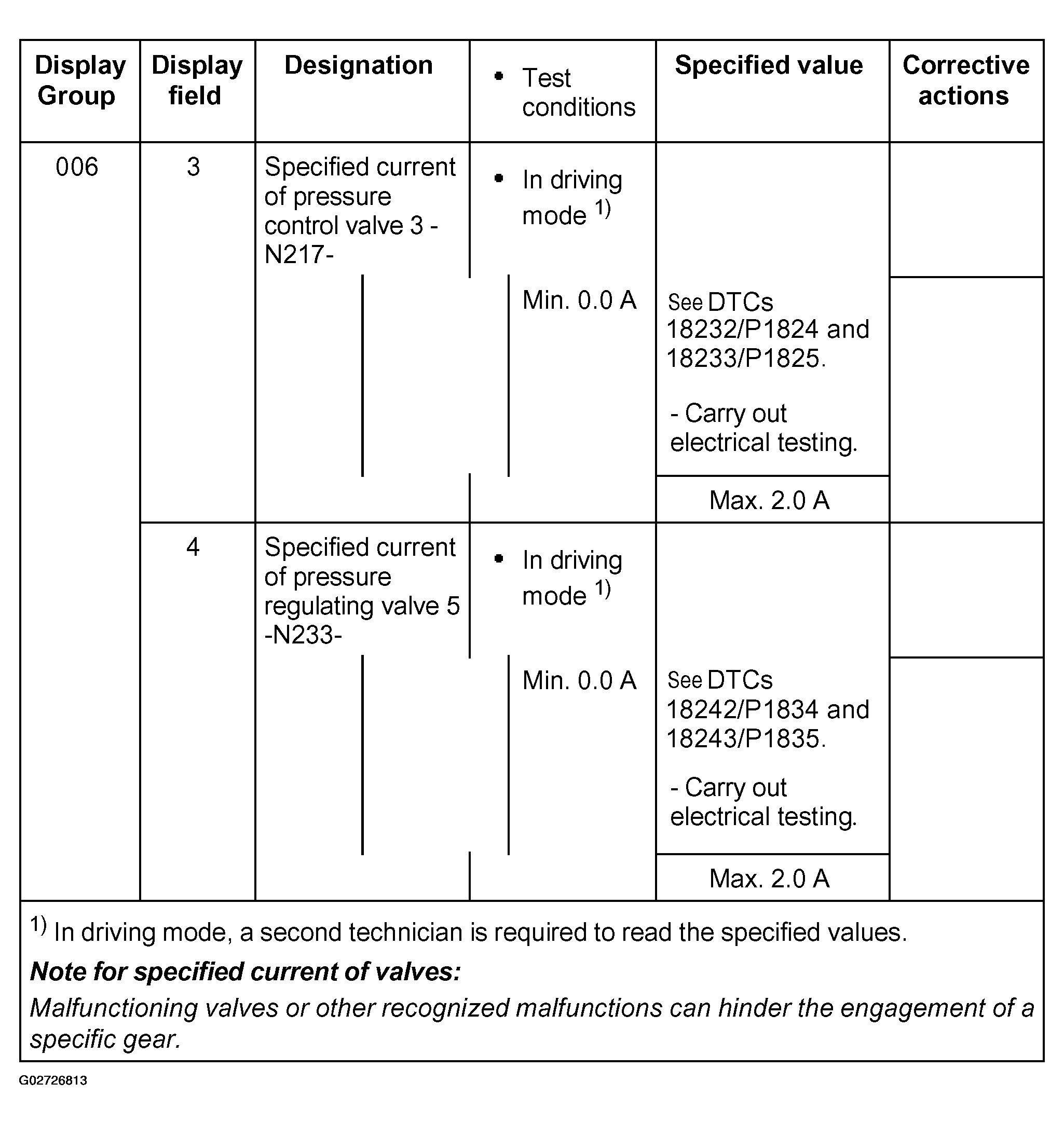

Fig 16: Measuring Value Block Chart (Display Group 6, Display Fields 3 & 4)
Courtesy of AUDI OF AMERICA, INC.
- For DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE
- For electrical testing, see ELECTRICAL TESTING

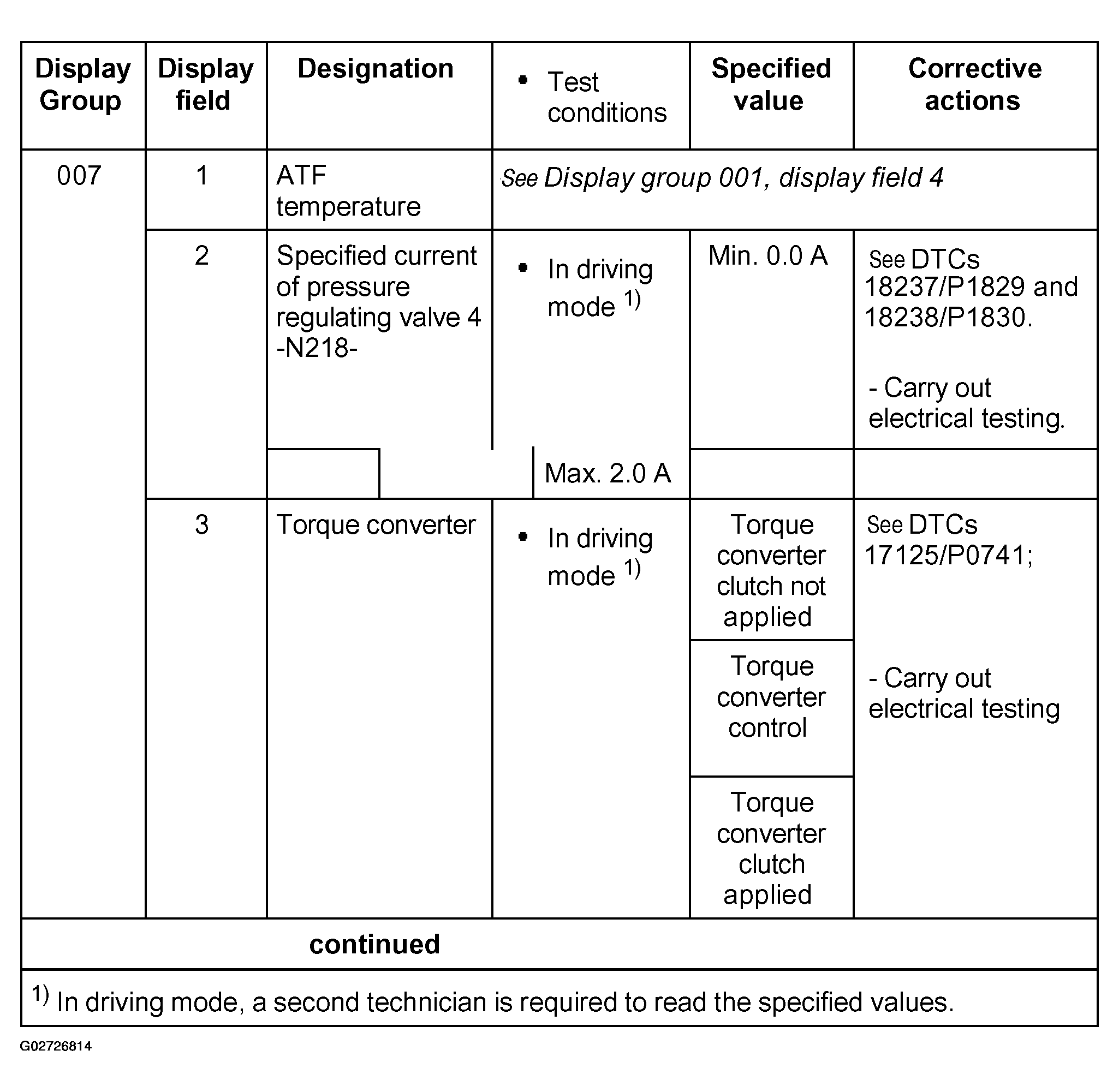

Fig 17: Measuring Value Block Chart (Display Group 7, Display Fields 1 To 3)
Courtesy of AUDI OF AMERICA, INC.
- For DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE
- For electrical testing, see ELECTRICAL TESTING

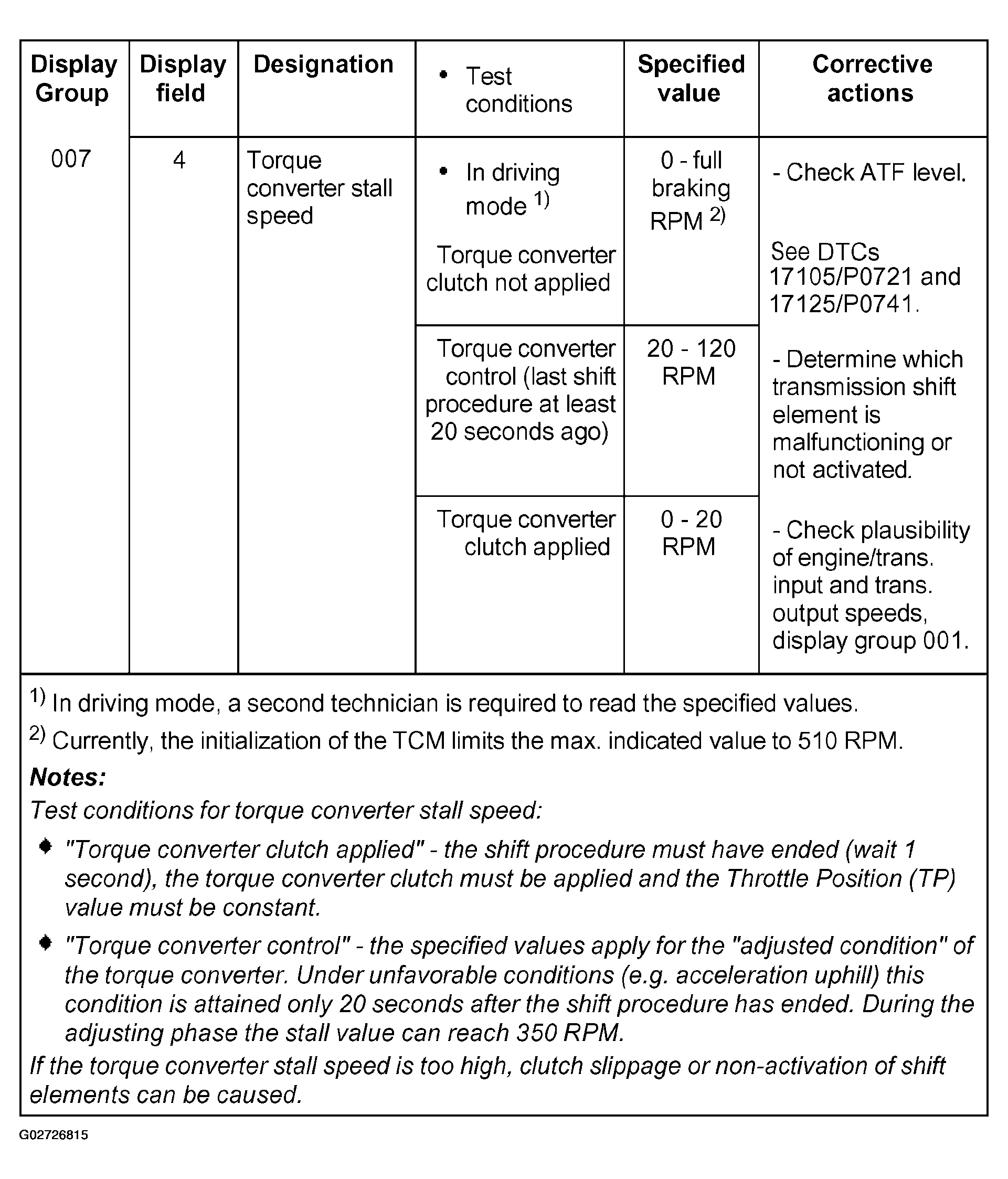

Fig 18: Measuring Value Block Chart (Display Group 7, Display Field 4)
Courtesy of AUDI OF AMERICA, INC.
- To check ATF level, see CHECKING FLUID LEVEL .
- For DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE
- For transmission shift elements, see TRANSMISSION SHIFT ELEMENTS .

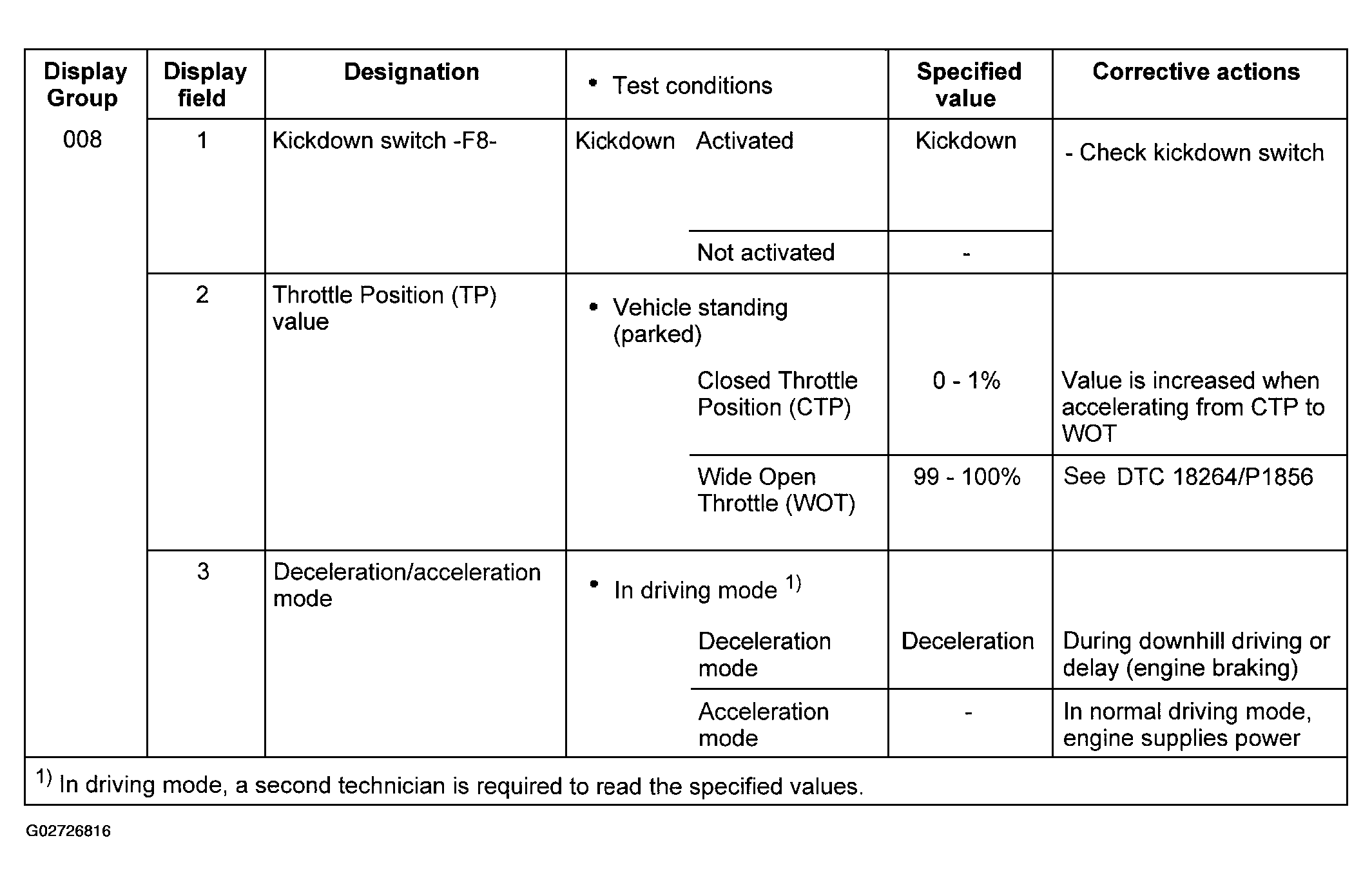

Fig 19: Measuring Value Block Chart (Display Group 8, Display Fields 1 To 3)
Courtesy of AUDI OF AMERICA, INC.
- For DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE
- For electrical testing, see ELECTRICAL TESTING

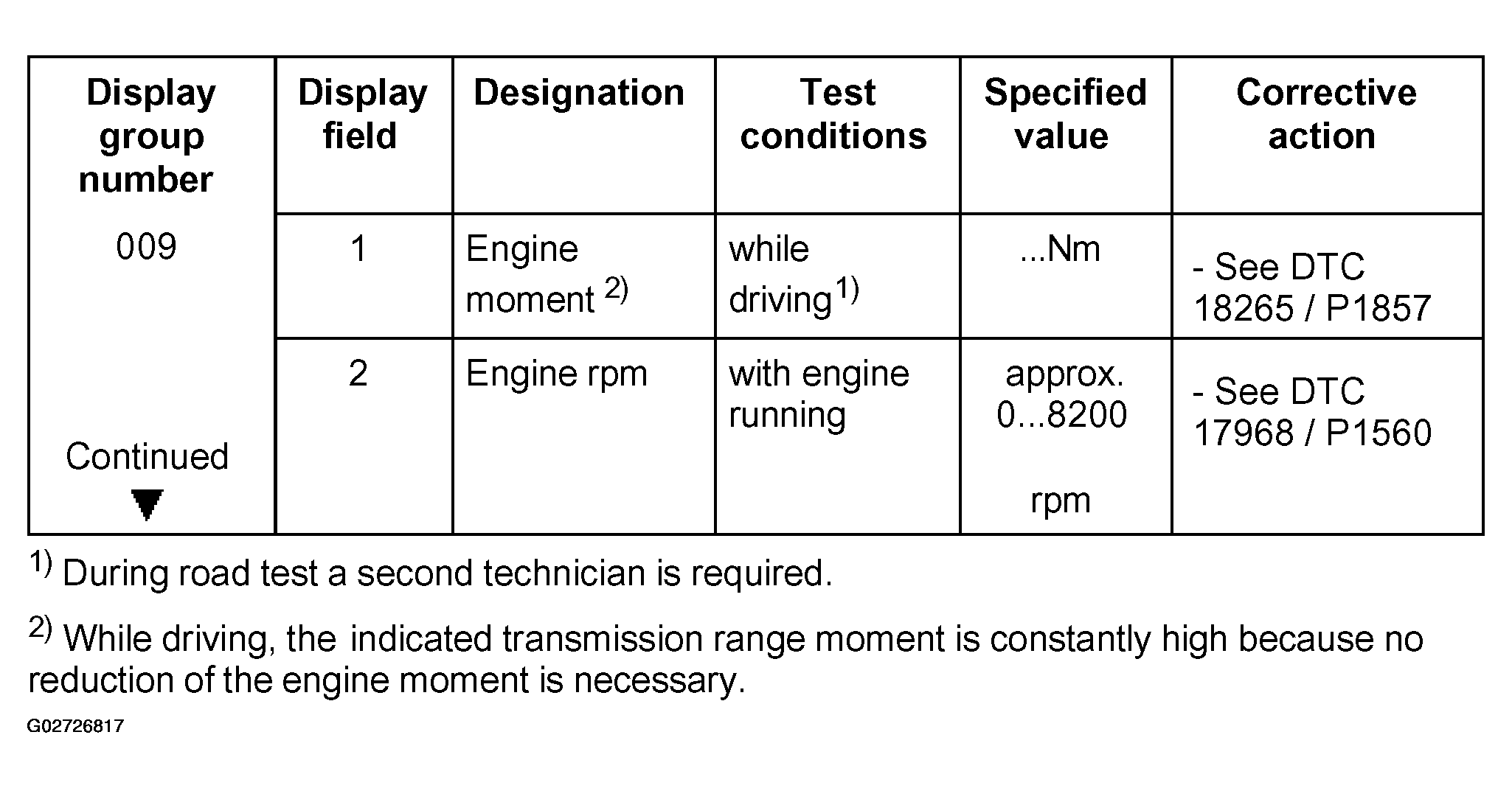

Fig 20: Measuring Value Block Chart (Display Group 9, Display Fields 1 & 2)
Courtesy of AUDI OF AMERICA, INC.
- For DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE

Note on Display field 1:

The signal of the engine moment is transmitted to the TCM via the CAN-BUS wiring.

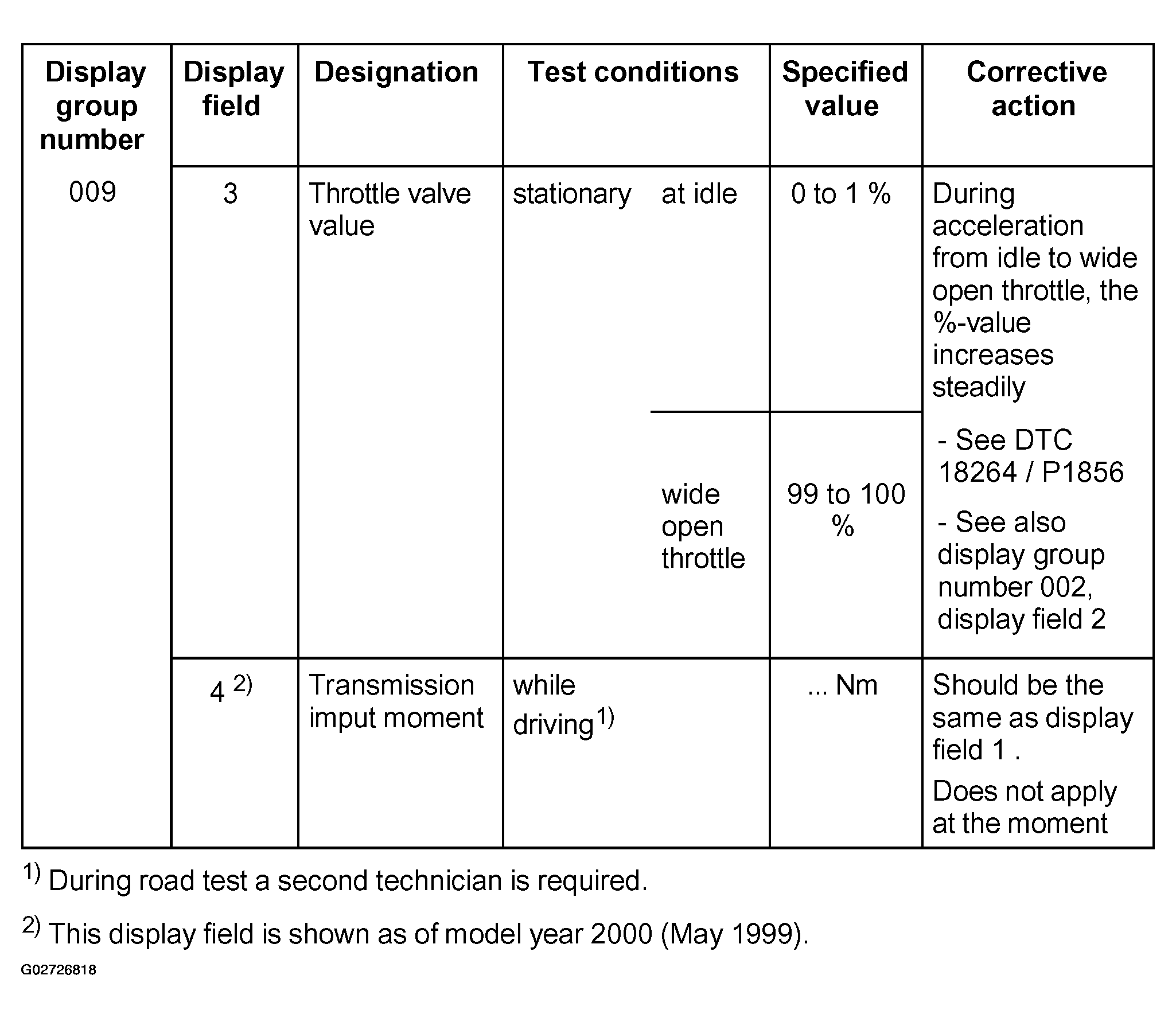

Fig 21: Measuring Value Block Chart (Display Group 9, Display Fields 3 & 4)

Courtesy of AUDI OF AMERICA, INC.

For DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE

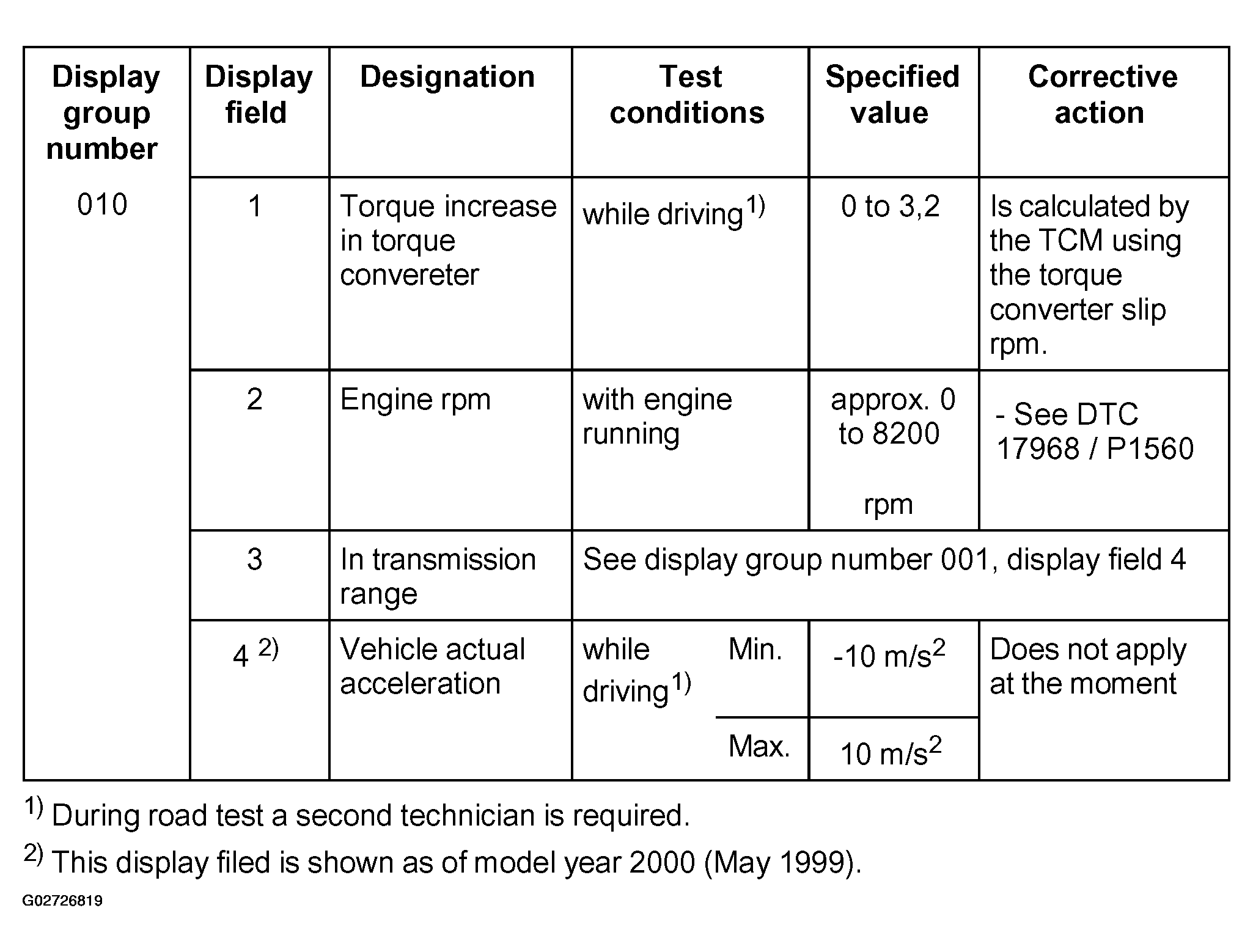

Fig 22: Measuring Value Block Chart (Display Group 10, Display Fields 1 To 4)

Courtesy of AUDI OF AMERICA, INC.

For DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE

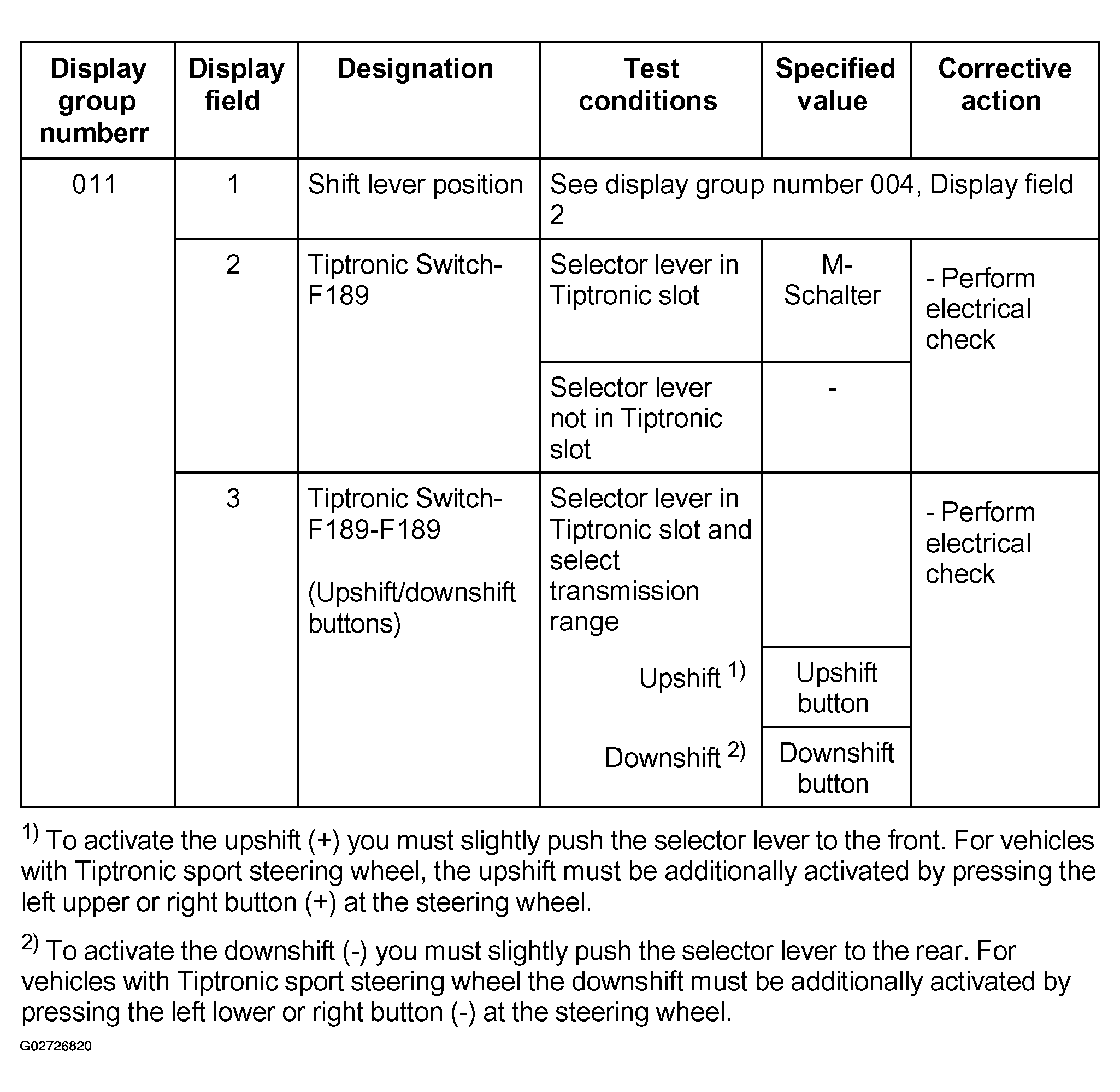

Fig 23: Measuring Value Block Chart (Display Group 11, Display Fields 1 To 3)

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING

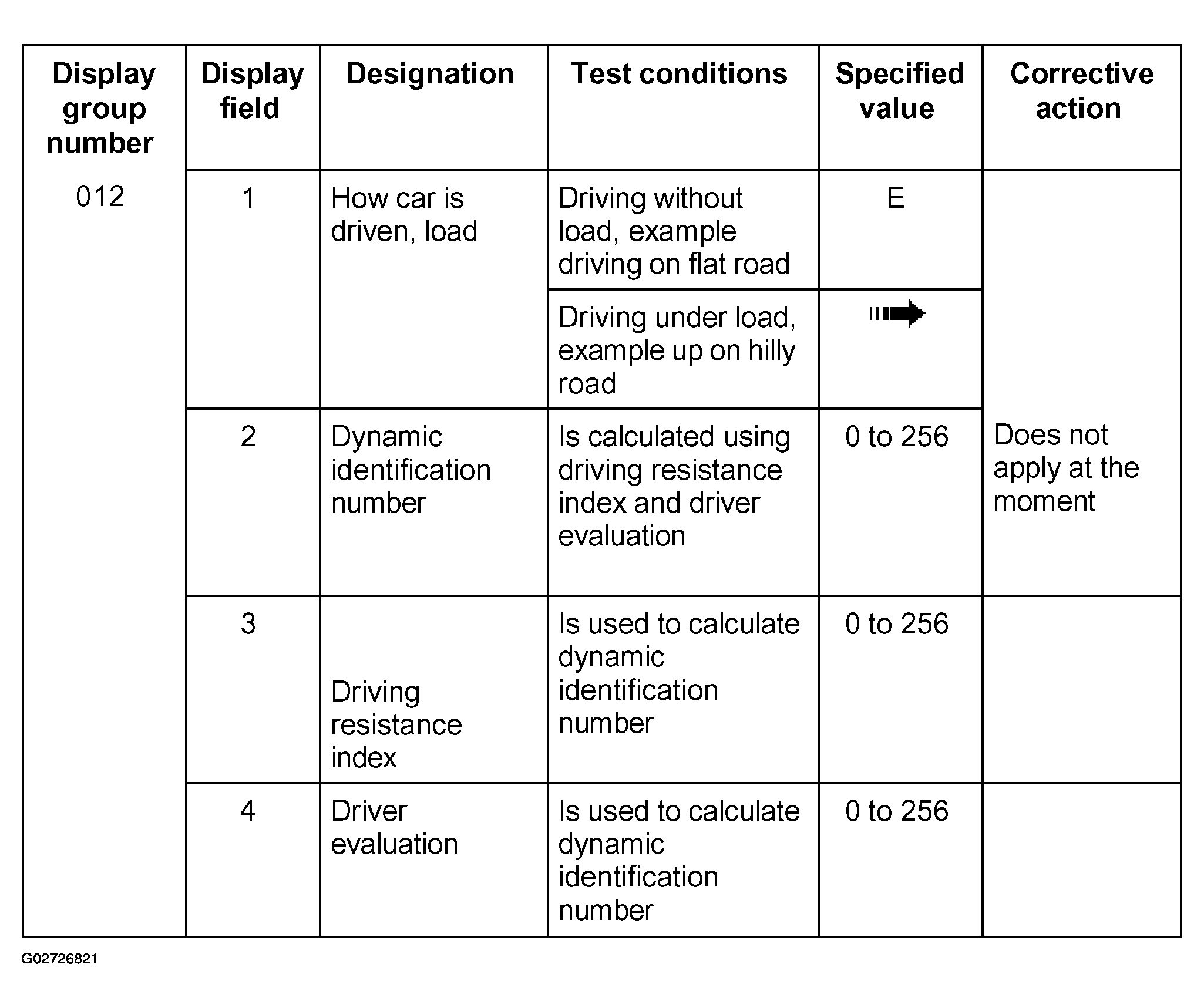

Fig 24: Measuring Value Block Chart (Display Group 12, Display Fields 1 To 4)

Courtesy of AUDI OF AMERICA, INC.

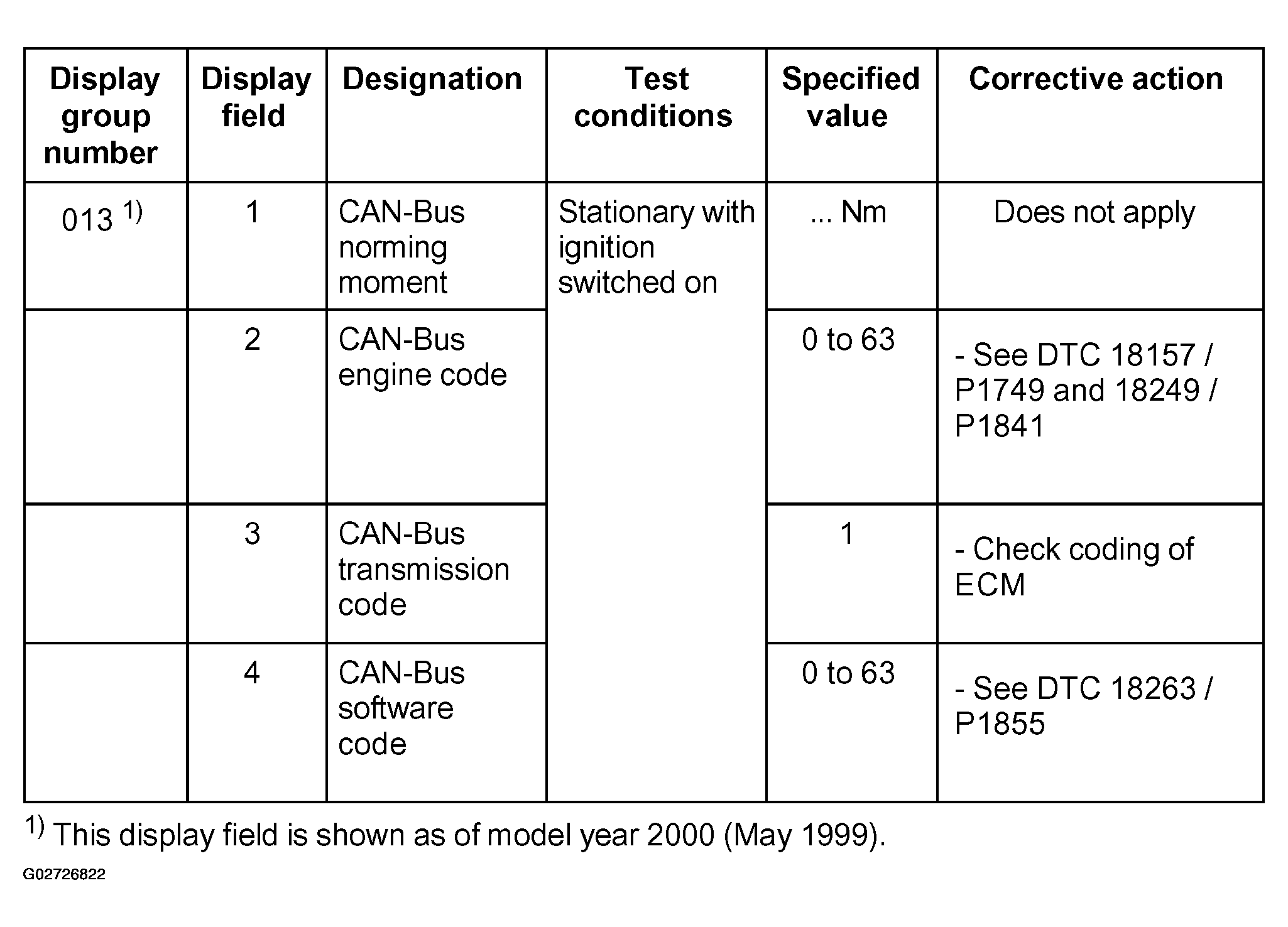

Fig 25: Measuring Value Block Chart (Display Group 13, Display Fields 1 To 4)

Courtesy of AUDI OF AMERICA, INC.

For DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE

Note to display group number 013:

Display field 2 and 4: When replacing the ECM, the display must be the same for the old and the new ECM. If not, the wrong ECM was installed or it was incorrectly coded.

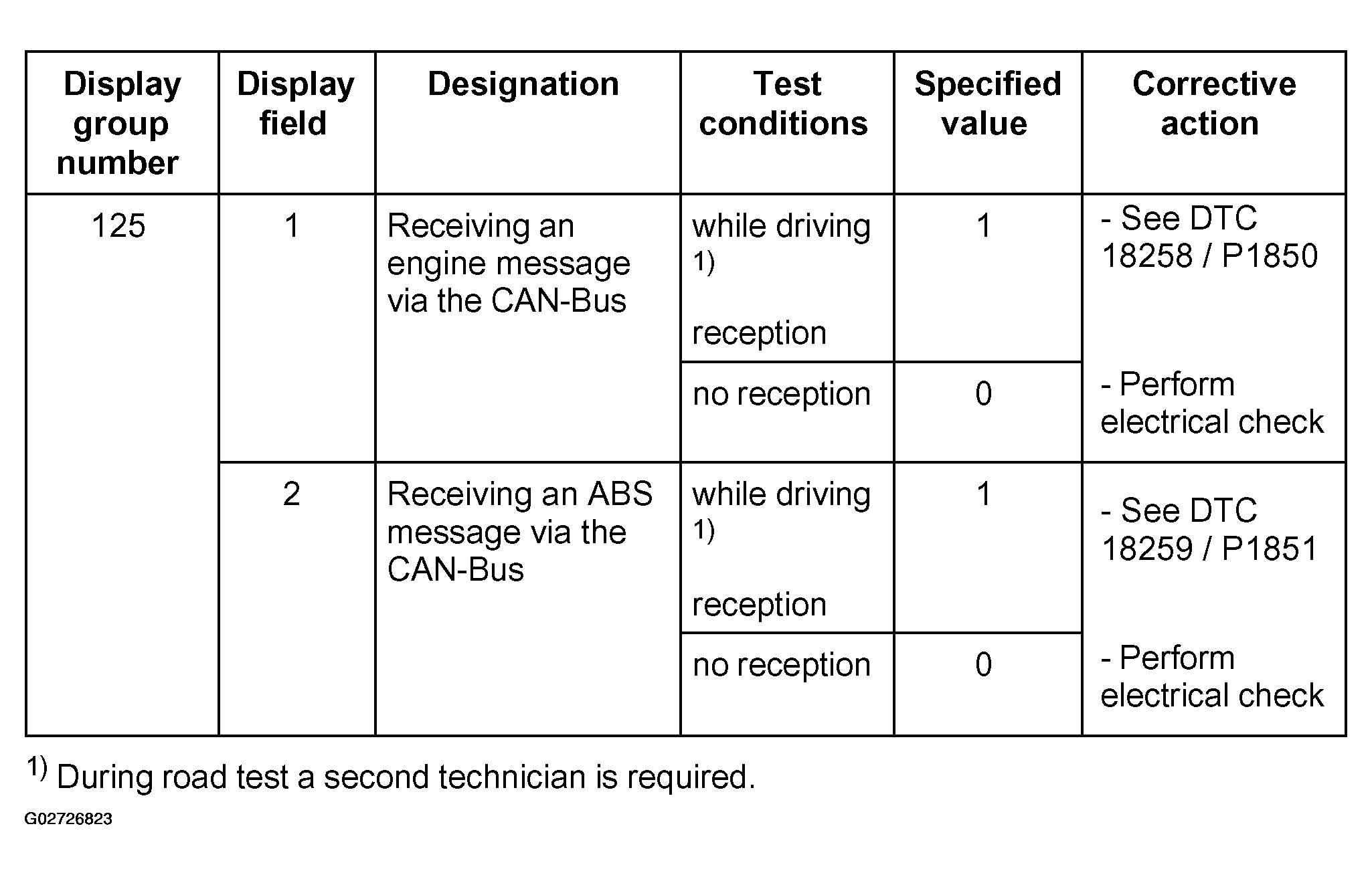

Fig 26: Measuring Value Block Chart (Display Group 125)
Courtesy of AUDI OF AMERICA, INC.
- For more DTC information, see DIAGNOSTIC TROUBLE CODE (DTC) TABLE .
- For electrical testing, see ELECTRICAL TESTING .
