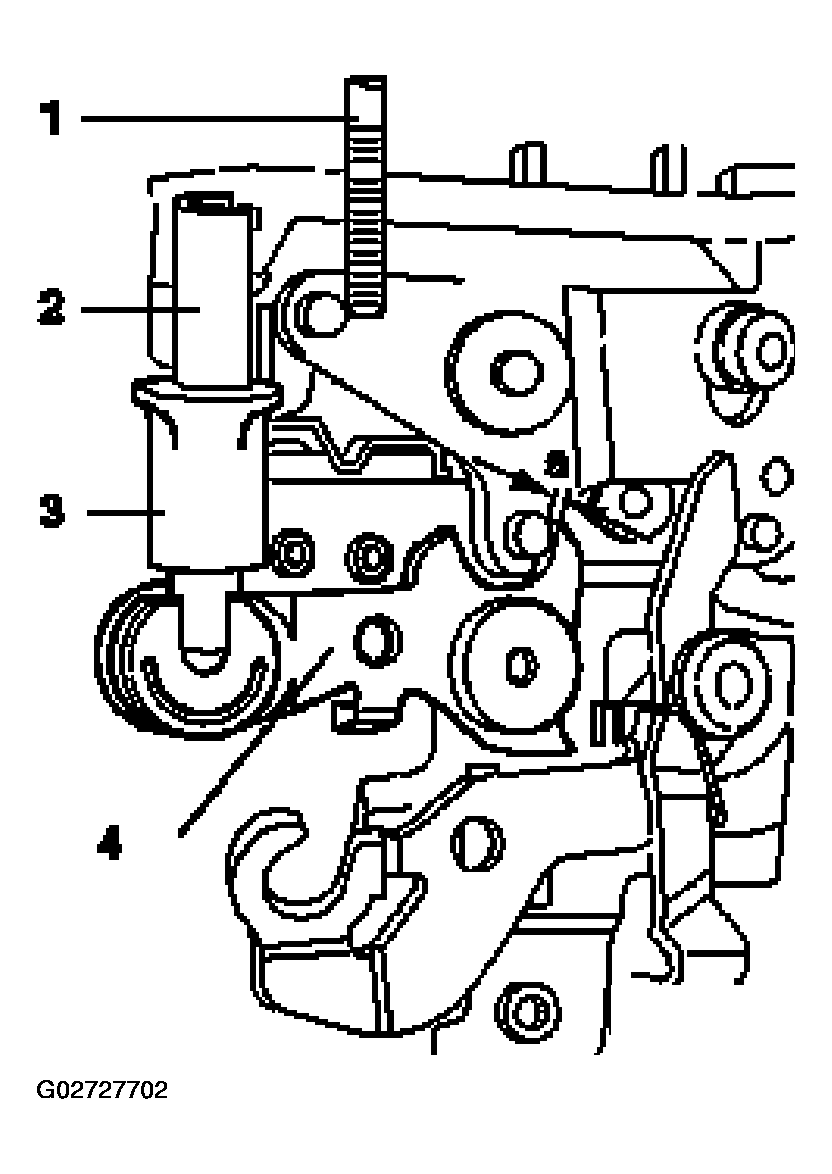

Adjusting locking lever play
- Insert securing rod -1- into operating clip -2- so that dimension -a- at the locking lever -4- is approx. 1mm.
- During this, dimension -a- = 13mm (adjustment depth for securing rod) must be maintained. See ADJUSTMENT DEPTH FOR SECURING ROD .
