Door lock cover, removing and installing

NOTE: The following list refers to Fig 1 .

Securing rod-lock cylinder
- Clip into socket at release lever
Door handle
- Removing and installing. See DOOR HANDLE, REMOVING .
Operating rod-door lock
- Adjustment depth for securing rod in operating clip. See ADJUSTMENT DEPTH FOR SECURING ROD .
Cover for door lock
- To remove, unclip at top first, then pull bottom toward rear of door lock.
Installing pin
- Only installed for new parts; helps keep secure.
- Do not remove door lock until successfully installing operating rod.
Operating clip
- Engage in door lock. See REMOVING AND INSTALLING SECURING ROD FOR LOCK CYLINDER .

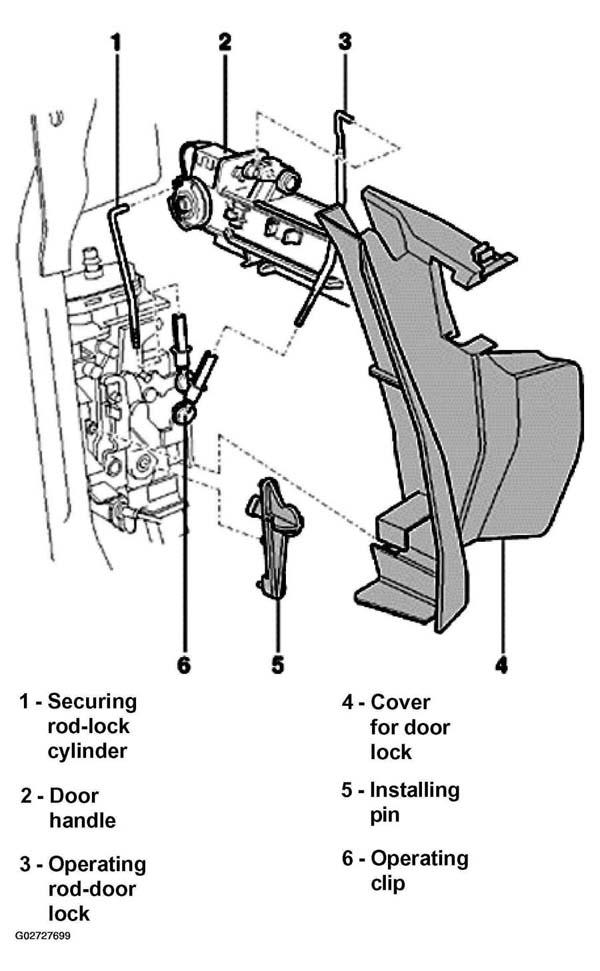

Fig 1: Identifying Door Lock Cover Components

Courtesy of AUDI OF AMERICA, INC.
