Rear lid contact switch, removing and installing: Removing
- Remove rear lid lock.
- Disconnect harness connector.

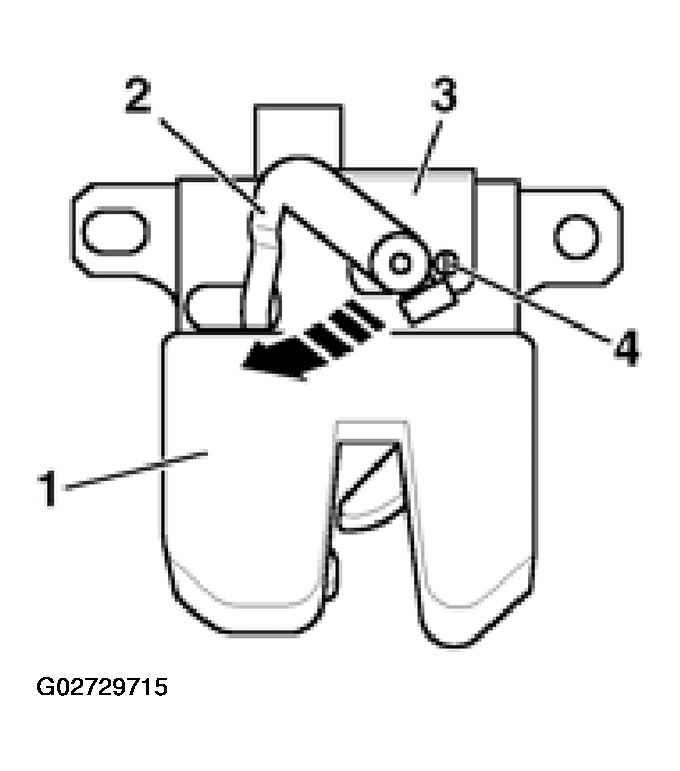

- From the removed lid lock -1- use a small standard screwdriver and unlock the plastic loop -3- and both spread rivets -4-. See Fig 1.
- Push lever -2- in direction of arrow and flip plastic piece -3- to the rear.

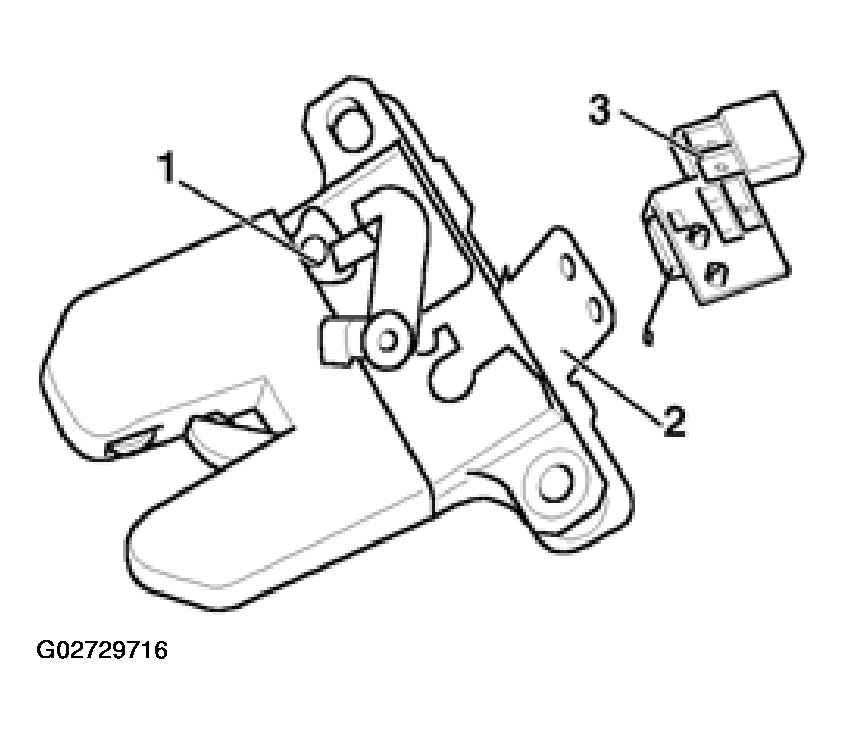

- Remove the contact switch -3- carefully from the rear lid lock -1-.
