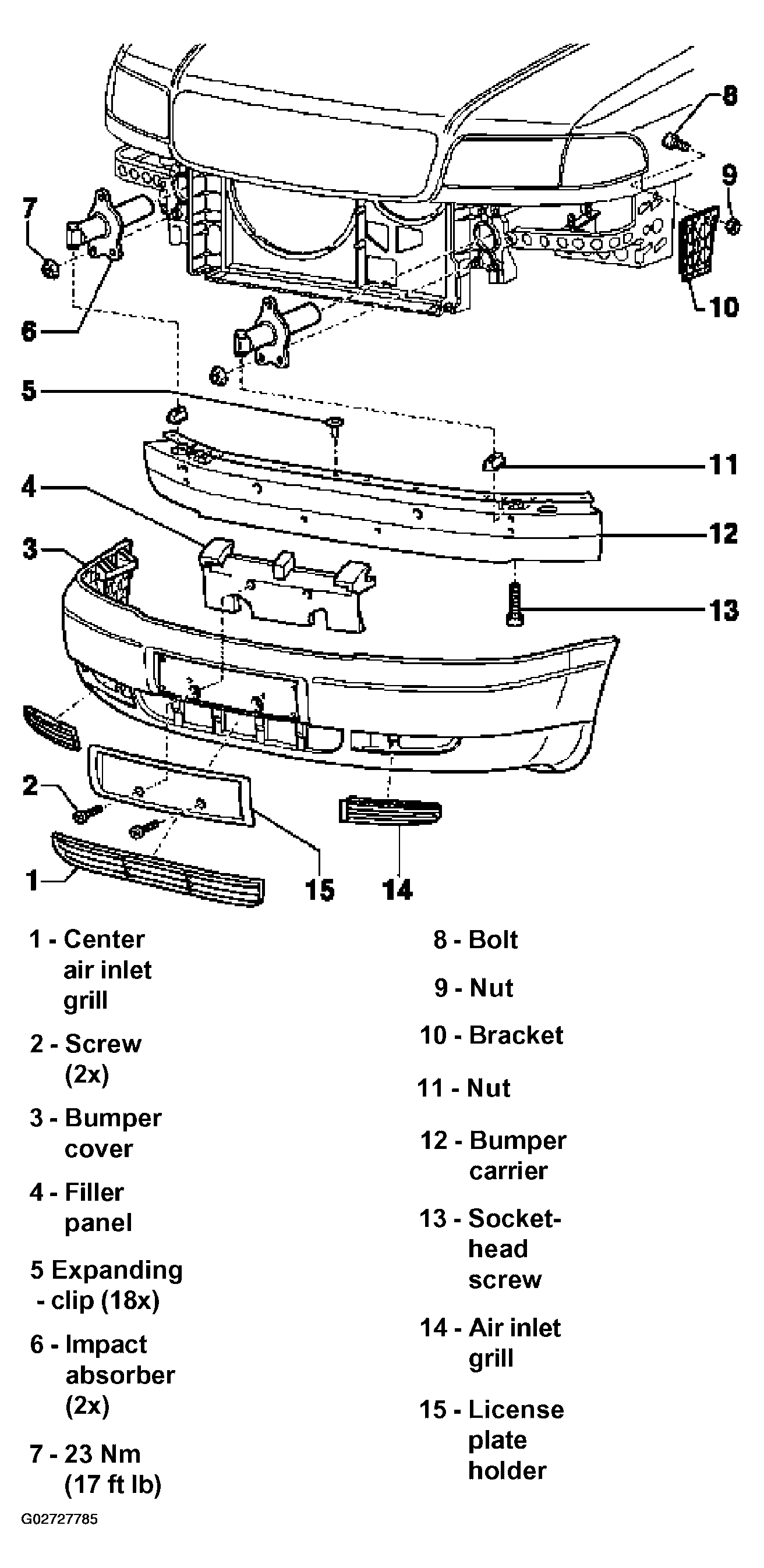

Front bumper, assembly overview
NOTE:
The following list refers to Fig 1.
- Center air inlet grill
- Screw (2x)
- 1 Nm (9 in. lb)
- Bumper cover
- Removing and installing. See FRONT BUMPER COVER, REMOVING AND INSTALLING .
- Filler panel
- Expanding clip (18x)
- Impact absorber (2x)
Removing:
- Remove bumper. See FRONT BUMPER, REMOVING AND INSTALLING .
- Remove A/C pressure switch.
- Remove nuts (or bolts) -7- and remove impact absorber.
- Checking. See IMPACT ABSORBERS, TESTING .
- 23 Nm (17 ft lb)
- 2x
- Bolt
- 12 Nm (9 ft lb)
- Nut
- Bracket
- Different versions on left and right-sides
- Adjusting. See FRONT BUMPER, ADJUSTING .
- Nut
- Bumper carrier
Removing:
- Remove bumper. See FRONT BUMPER, REMOVING AND INSTALLING .
- Unclip expanding clip -5-.
- Adjusting. See FRONT BUMPER COVER, REMOVING AND INSTALLING .
- Socket-head screw
- 65 Nm (48 ft lb)
- Air inlet grill
- License plate holder
- Removing and installing. See LICENSE PLATE HOLDER, REMOVING AND INSTALLING .
