License plate holder, removing and installing
Remove screws -2-.
Push retaining tabs -3- (5x) in direction of arrow.
Pull out license plate holder -1-.

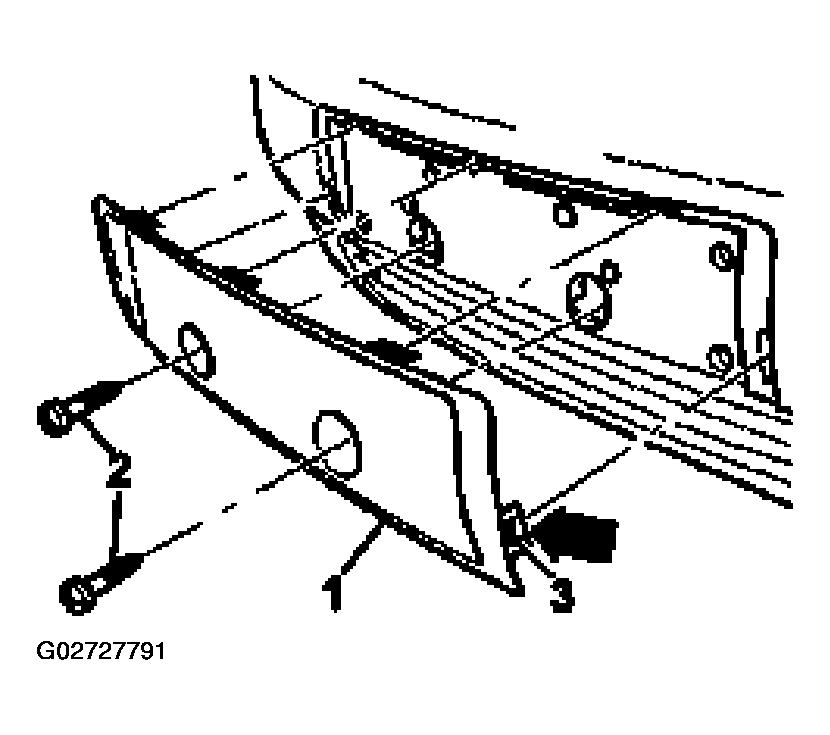

Fig 1: Removing/Installing License Plate Holder (Up To M.Y. 1999)
Courtesy of AUDI OF AMERICA, INC.
