Front trim and spoiler, assembly overview: Notes

NOTE: The following list refers to Fig 1.

Bumper cover
Trim
- Before removing, bumper must be removed.
  - To remove, remove Philips-head screws -3- and -4-.
  - Disengage locking lugs of retaining clamp and remove trim toward front. See FRONT TRIM, REMOVING .
- Before installing trim, press retaining clamps into bumper cover
Phillips-head screw
Phillips-head screw
Bumper carrier
Removing:
- Remove clips -8- from upper and lower sides. See CLIP FOR BUMPER COVER .
Spoiler
Removing:
- remove bumper.
- Remove hex bolt -7-.
- Remove clips from underside. See CLIP FOR BUMPER COVER .
Hex bolt
- 21 Nm
Clip
- Qty: 15

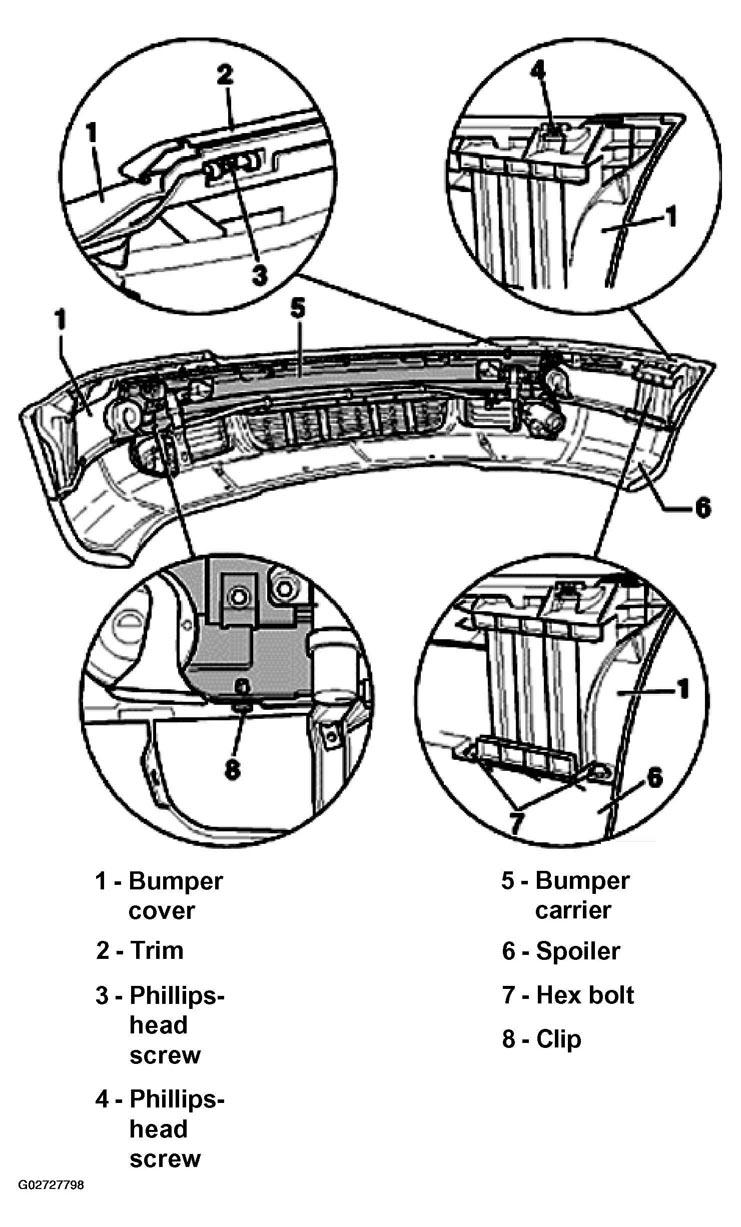

Fig 1: Identifying Front Trim And Spoiler Assembly Components (M.Y. 1999 & Up)

Courtesy of AUDI OF AMERICA, INC.
