Right rear reception antennas, removing and installing

The reception antennas are located behind the wheelhousing liners.

• Removing and installing wheel-housing liners:

  See REAR WHEELHOUSING LINER, REMOVING AND INSTALLING .

• Disconnect harness connector -1-.
• Remove hex nuts -2-.

  Tightening torque: 1.5 Nm (13.5 in lb)

• Remove antenna -3-

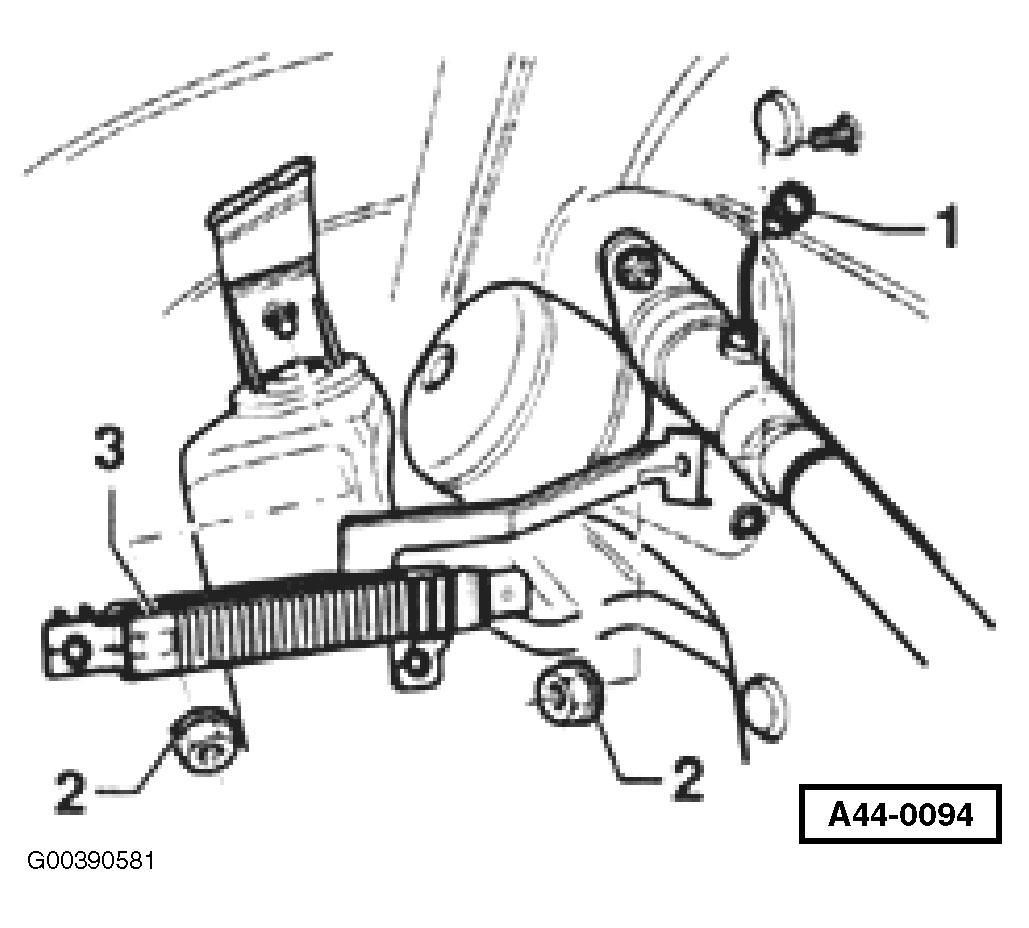

Fig 1: Identifying Right Rear Reception Antenna, Harness Connector & Hex Nuts
Courtesy of AUDI OF AMERICA, INC.

Removing and installing rear reception antenna with bracket

• Antenna bracket -1-
• Snap-on nut -2-
• Antenna -3-
• Hex bolts -4-;

  Tightening torque: 2.5 Nm (22 in lb)

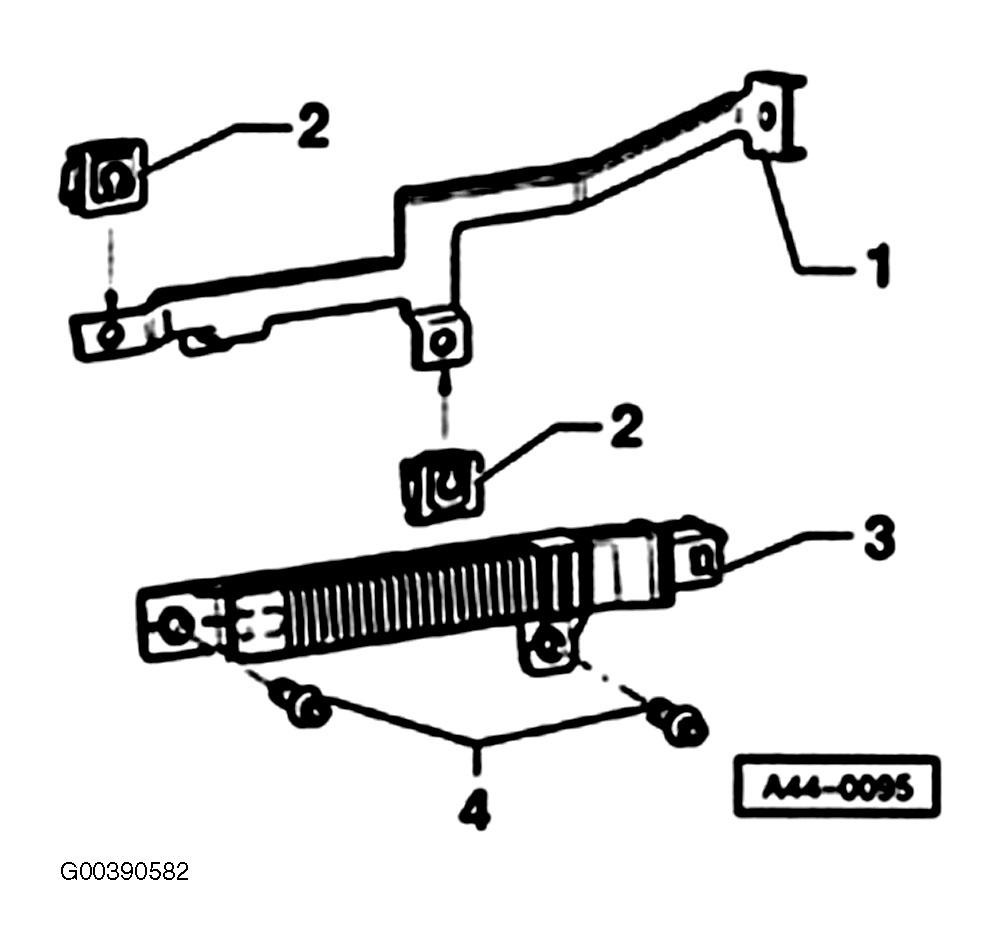

Fig 2: Identifying Right Rear Reception Antenna & Components
Courtesy of AUDI OF AMERICA, INC.

Install in reverse order of removal.
