Rear wheelhousing liner, removing and installing

NOTE: Mounting parts vary depending on version.
NOTE: The following list refers to Fig 1 .
  1. Right-rear wheelhousing liner
    • To remove, remove bolts, open quick-release and unscrew cap nuts.
  2. Left-rear wheelhousing liner
    • To remove, open quick-release and unscrew cap nuts.
  3. Cap nut
    • 1 Nm (9 in. lb)
  4. Bolt
  5. Bolt

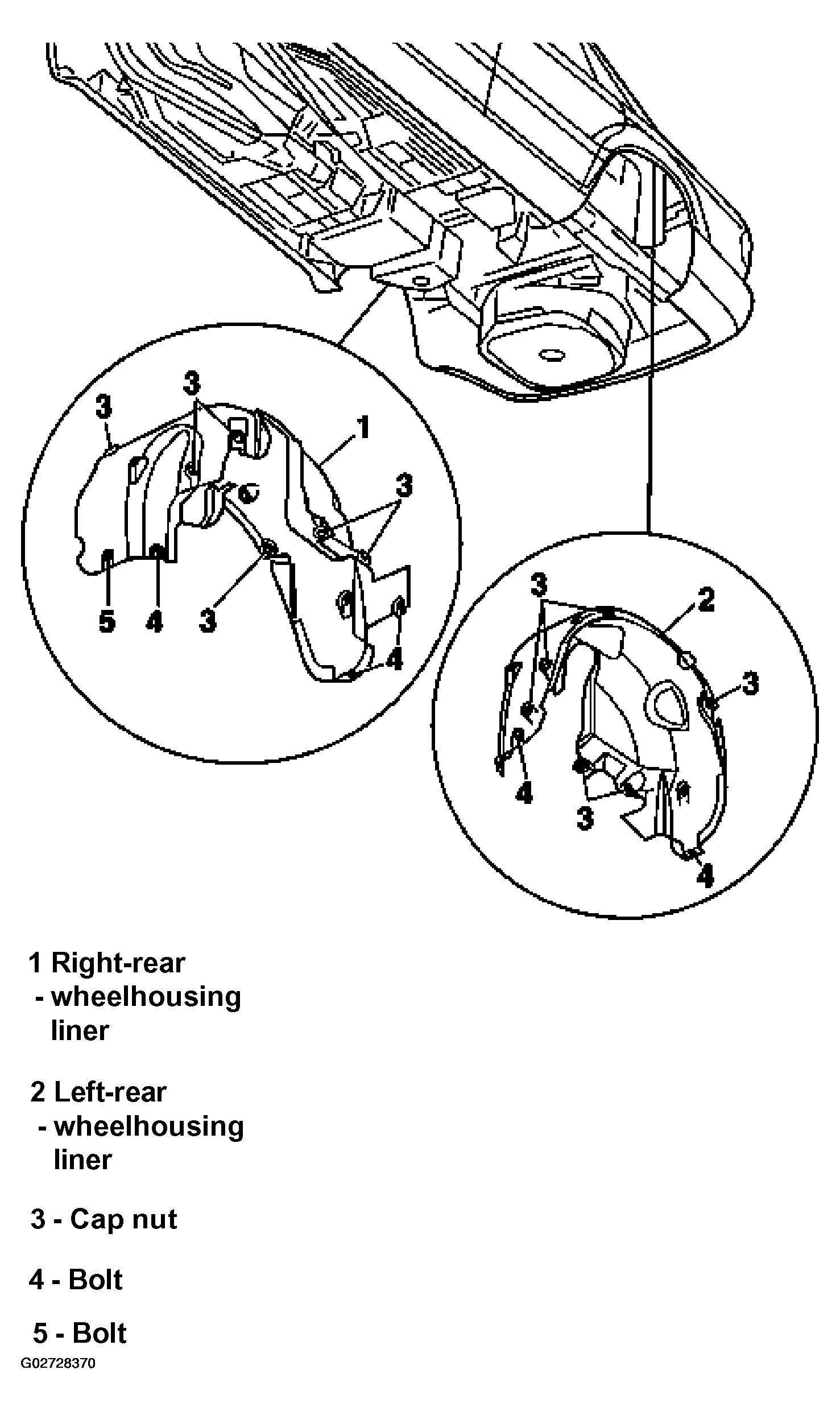

    6. Fig 1: Identifying Rear Wheelhousing Liner
    G02728370Courtesy of AUDI OF AMERICA, INC.
