Seatback electrical components, removing and installing
- Seatback cover and seatback cushion, removing.
NOTE:

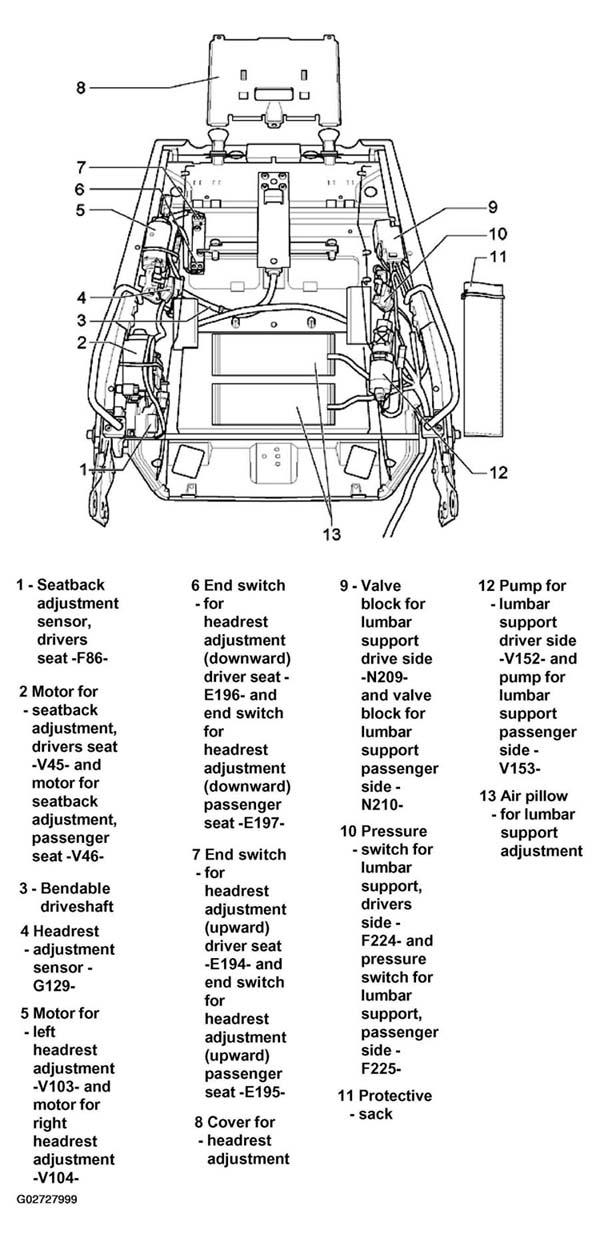

The following list refers to Fig 1.
- Seatback adjustment sensor, drivers seat -F86-
- Installed only in driver seat
- Removing and installing. See MOTOR AND SENSOR FOR SEATBACK, ADJUSTMENT AND INSTALLING .
- Motor for seatback adjustment, drivers seat -V45- and motor for seatback adjustment, passenger seat -V46-
- Removing and installing. See MOTOR AND SENSOR FOR SEATBACK, ADJUSTMENT AND INSTALLING .
- Bendable driveshaft
- For headrest adjustment
- Installed in motor for headrest adjustment
- Fastened with 2 tie wraps
- Headrest adjustment sensor -G129-
- Installed only in driver seat
- Removing and installing. See HEADREST ADJUSTMENT MOTOR AND SENSOR, REMOVING AND INSTALLING .
- Motor for left headrest adjustment -V103- and motor for right headrest adjustment -V104-
- Removing and installing. See HEADREST ADJUSTMENT MOTOR AND SENSOR, REMOVING AND INSTALLING .
- End switch for headrest adjustment (downward) driver seat -E196- and end switch for headrest adjustment (downward) passenger seat -E197-
- Available as replacement only together with end switch (upward) -7-
- Remove headrest cover -8- to adjust
- Removing and installing. See END SWITCH FOR HEADREST ADJUSTMENT, REMOVING AND INSTALLING .
- End switch for headrest adjustment (upward) driver seat -E194- and end switch for headrest adjustment (upward) passenger seat -E195-
- Available as replacement only together with end switch (downward) -6-
- Remove headrest cover -8- to adjust
- Removing and installing. See END SWITCH FOR HEADREST ADJUSTMENT, REMOVING AND INSTALLING .
- Cover for headrest adjustment
- Removing: drill out rivets and unhook cover
- Installing: hook in cover and rivet tight
- Valve block for lumbar support drive side -N209- and valve block for lumbar support passenger side -N210-
- Removing and installing. See PUMP, PRESSURE SWITCH AND VALVE BLOCK FOR LUMBAR ADJUSTMENT, REMOVING AND INSTALLING .
- Pressure switch for lumbar support, drivers side -F224- and pressure switch for lumbar support, passenger side -F225-
- Inserted in protective sack -11-
- Removing and installing. See PUMP, PRESSURE SWITCH AND VALVE BLOCK FOR LUMBAR ADJUSTMENT, REMOVING AND INSTALLING .
- Protective sack
- For pressure switch and pump for lumbar support adjuster
- Fastened with double sided tape to seatback frame
- Closed with tie wrap
- Pump for lumbar support driver side -V152- and pump for lumbar support passenger side -V153-
- Inserted in protective sack -11-
- Removing and installing. See PUMP, PRESSURE SWITCH AND VALVE BLOCK FOR LUMBAR ADJUSTMENT, REMOVING AND INSTALLING .
- Air pillow for lumbar support adjustment
- Fastened to underside with double sided tape
