End switch for headrest adjustment, removing and installing
- Seat removed
- Seatback cover and seatback cushion
- Drill out two rivets on headrest adjustment cover and remove cover.

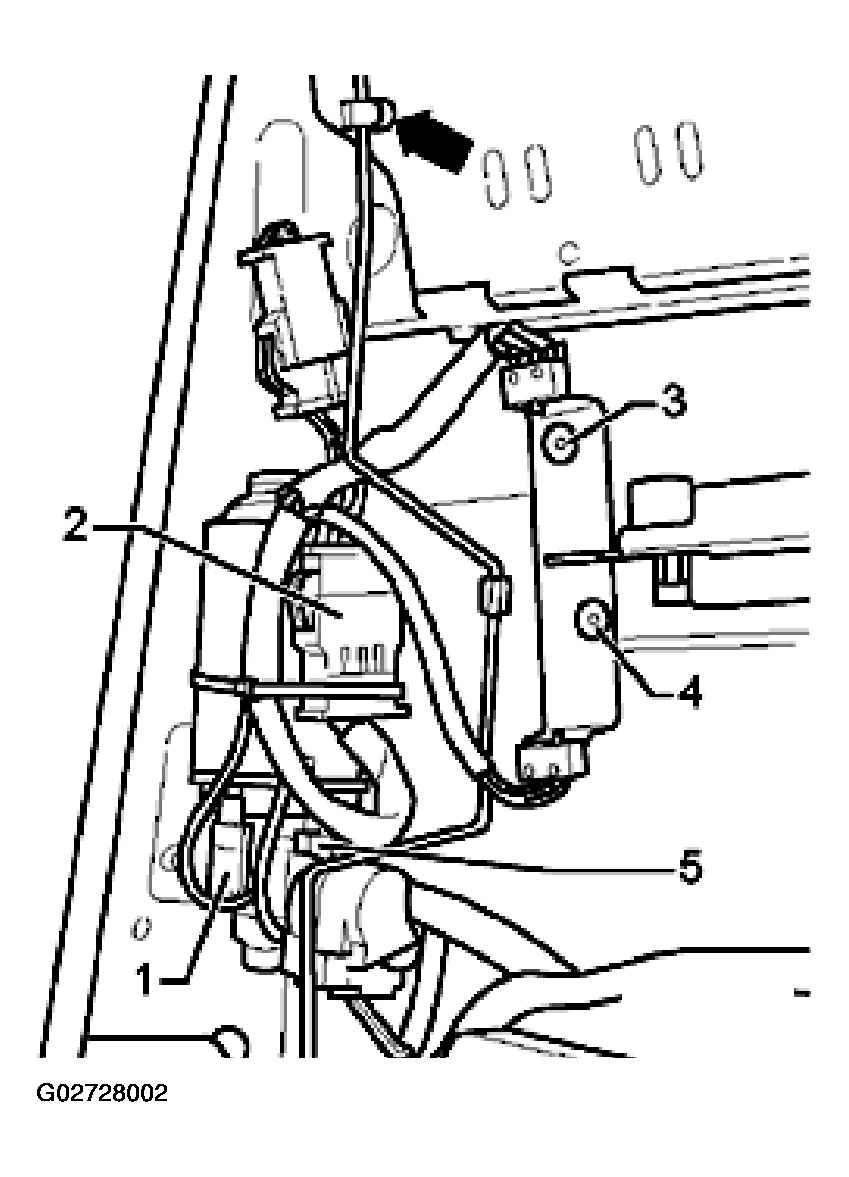

- Drill out 2 rivets -3- and -4-. See Fig 1.
- Remove retaining bracket for end switch for headrest adjustment.
- Unhook wire bracket for seatback cushion to upper strap (arrow).
- Cut tie wraps open and disconnect connectors -1-, -2- and -5-.
