Removing and installing wiper motor and linkage
- Remove wiper arms. See REMOVING WIPER ARMS
.
- Remove rubber seal from wind cowl panel.
- Remove plastic piece above wiper motor, left.

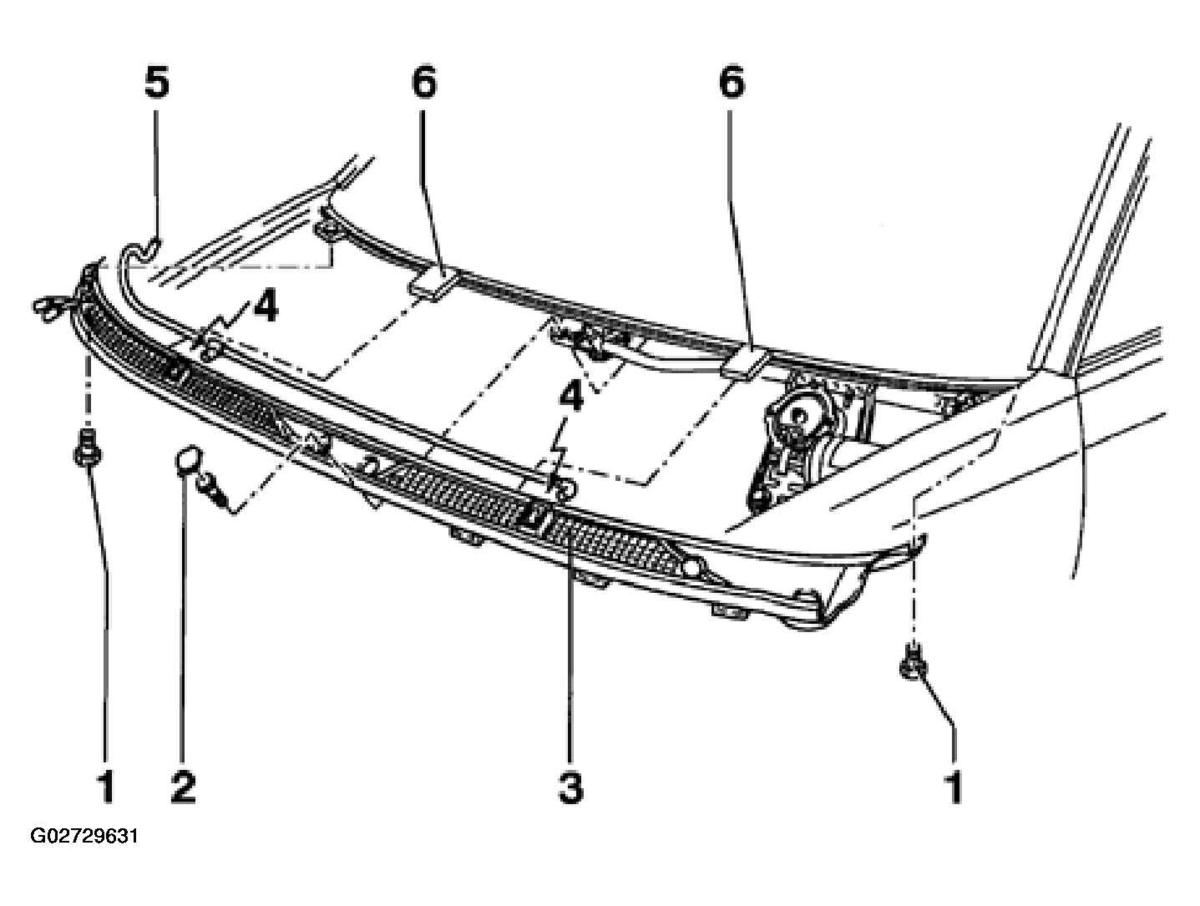

- Remove the three hex bolts -1- and -2- and pull wind cowl panel out of both retainers -6-. See Fig 1
.
- Disconnect hose connection -5- for spray jets -4- and remove wind cowl panel upward. See Fig 1
.
Courtesy of AUDI OF AMERICA, INC.
- Loosen mounting bolts -2- (6 x) and remove. See Fig 1
.
- Disconnect electric connectors at wiper motor.
- Take linkage out of plenum chamber together with wiper motor.
