Removing wiper arms
- Remove wiper blades.

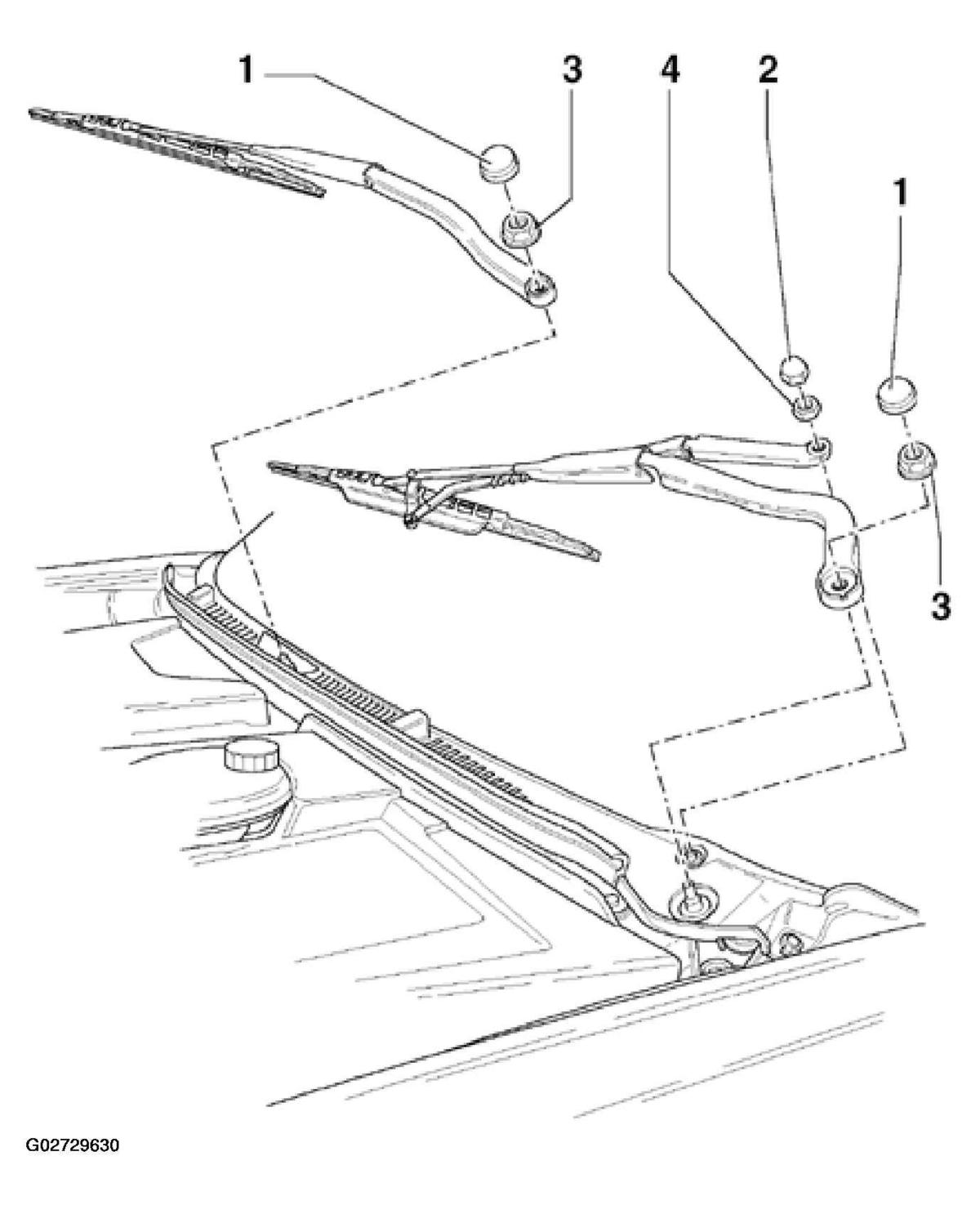

- Pry off caps -1- at wiper arms using a screwdriver or remove cap nut -2- on driverside. See Fig 1 .
- Loosen hex nuts -3- and -4- but do not remove them completely.
- Loosen wiper arms by rocking them gently.
- Remove hex nuts completely and take off wiper arms.
