Headlight washer jets, removing and installing: Removing
- Remove bumper.
- Remove spray jet bracket from bumper (pull upward) and press out toward left.

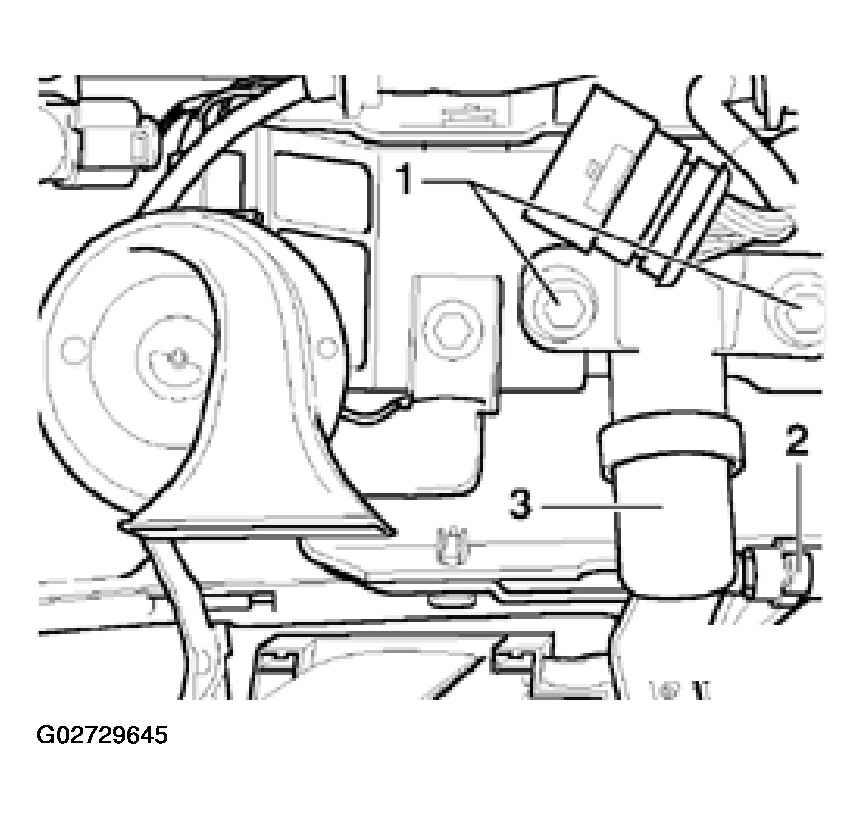

- Remove mounting bolts -1- on interior of bumper. See Fig 2 .
- Disconnect wiper fluid hose connection -2- and remove spray jet motor -3-.
NOTE:
Illustration depicts the left spray jet. Right spray jet is mirror image of left spray jet.
