Front bumper, removing and installing
- remove noise insulation.
- Unclip air inlet grill at left and right.
- Unclip air guide for generator on right side a bumper cover.
- For vehicles with a headlight cleaning system, unclamp hose at T-connector on right side using 3094 hose clamps.
- Pull off hose at T-connector.
- Remove clips (3x) in front region of wheelhousing liner and remove both nuts at wheel housing.

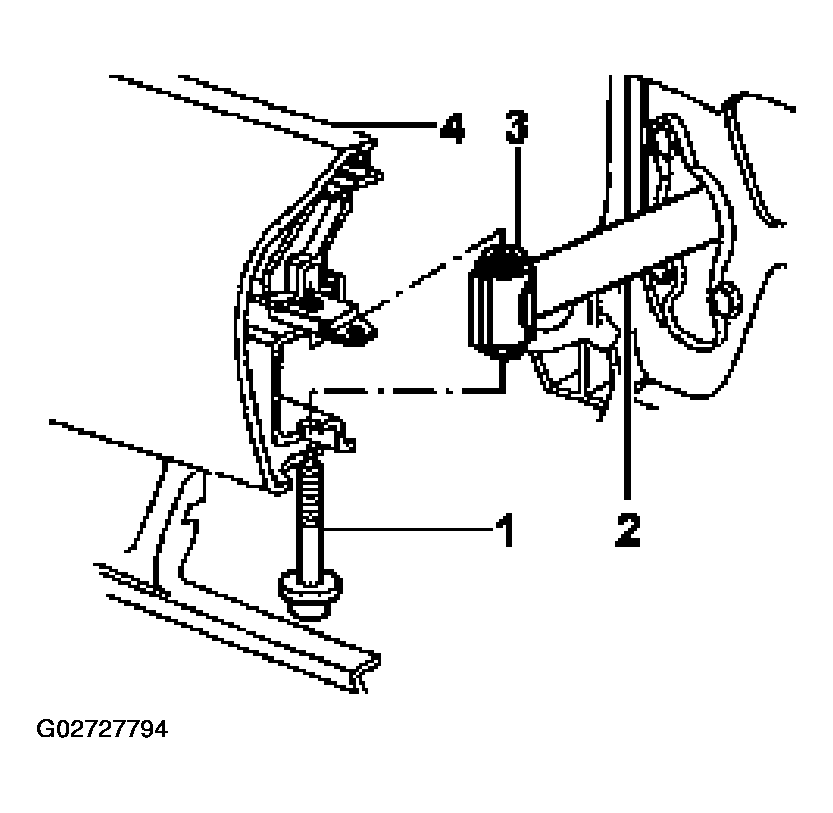

- Remove bolts -1-. See Fig 1.
- Remove bumper -4- toward front.
