Front ashtray (vehicles with "Chorus" and "Concert" radios), removing and installing

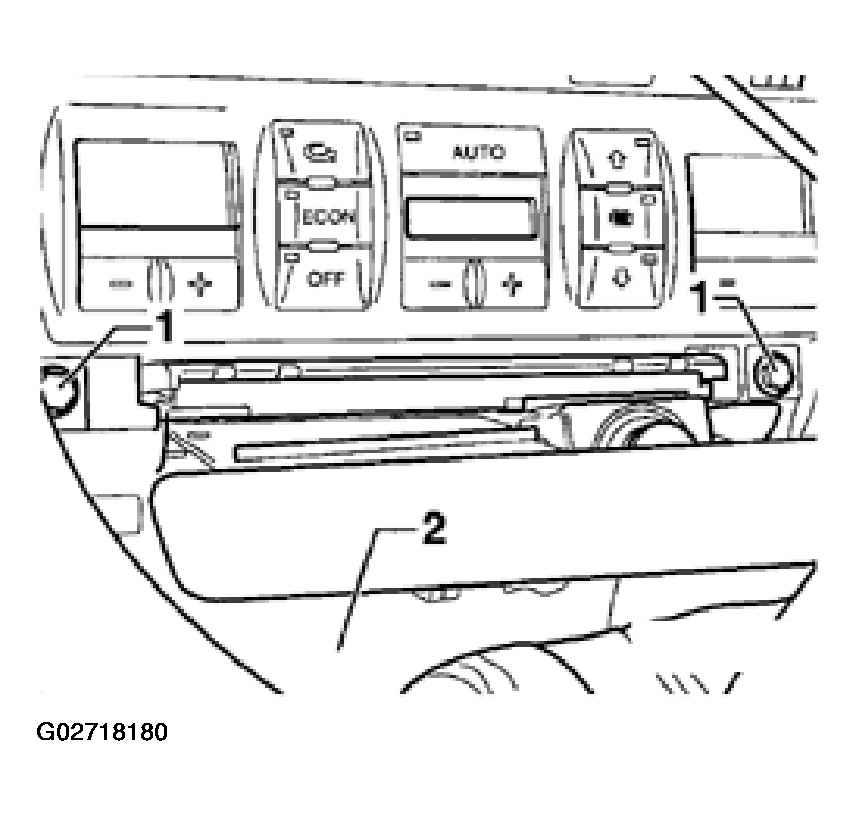

Fig 1: Identifying Front Astray (Vehicles With "Chorus" And "Concert" Radios)

Courtesy of AUDI OF AMERICA, INC.

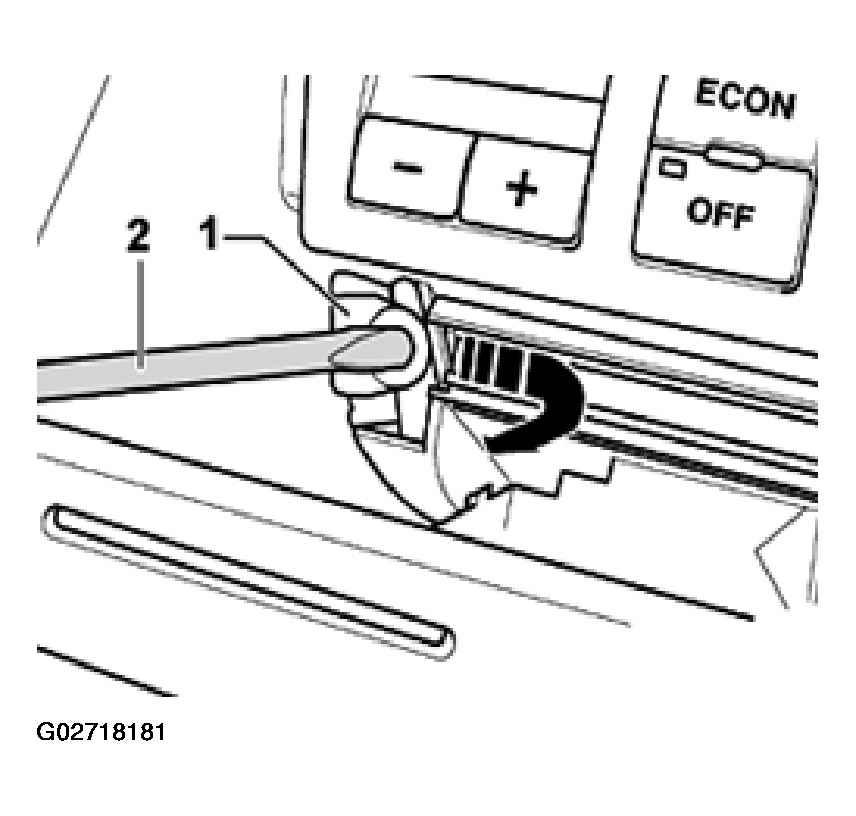

Using a screwdriver -2-, pull out retainers -1- on left and right in direction of arrow.

Fig 2: Pulling Out Ashtray Retainers (Vehicles With "Chorus" And "Concert" Radios)
Courtesy of AUDI OF AMERICA, INC.
Carefully pull A/C control head out slightly toward the rear, and pull out ashtray downward and toward the rear.
Pull ashtray toward the rear and disconnect wires for cigarette lighter and ashtray light.

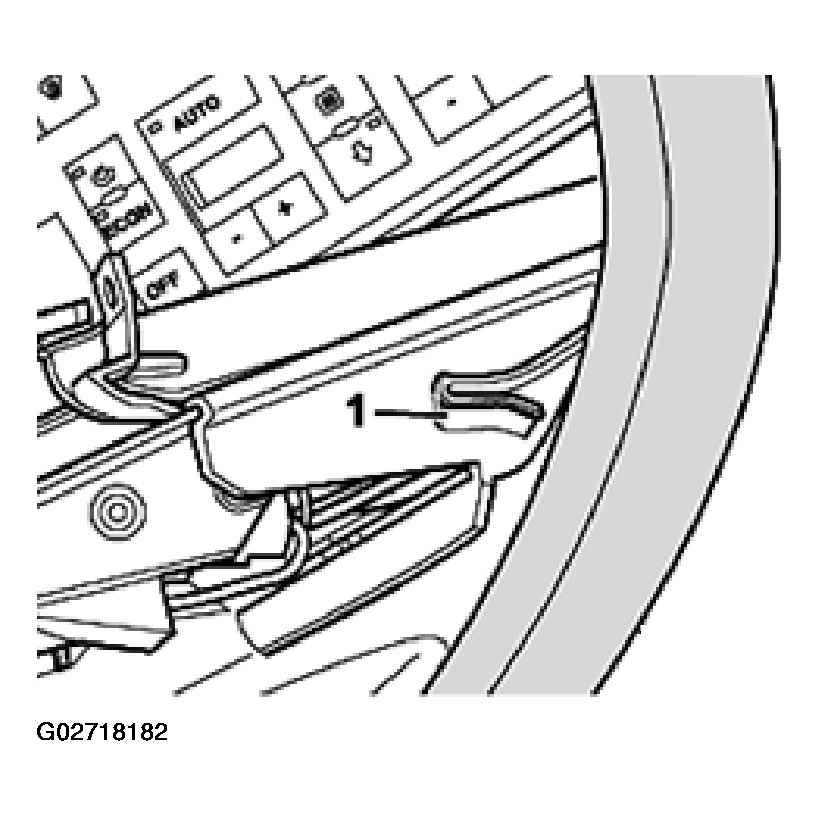

When installing, make sure that guides -1- engage in center console on left and right sides.

Fig 3: Installing Center Console On Left And Right Sides (Vehicles With "Chorus" And "Concert" Radios)

Courtesy of AUDI OF AMERICA, INC.
